APXV3LL15B_43-C-I20
High band 4 port antenna, 1710-2690/1710-2690 MHz, 33deg, 22.1/22.1 dBi, 1.5m, 2-12deg, Integrated RET

FEATURES / BENEFITS

  • Single beam antenna, 33deg
  • 4 ports / 2 cross pol systems in high band (1710-2690MHz)
  • Integrated and field replaceable SRET
  • ACU HW Version -2.02 / SW Version -2.72
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y1]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 21 21.3 21.1 21.1 22.1
Gain Over all Tilts dBi 20 +/- 1 20.8 +/- 0.5 21 +/- 0.1 21 +/- 0.1 21.6 +/- 0.5
Azimuth Beamwidth 3dB Deg 37.8 +/- 2.5 32.9 +/- 2 29.8 +/- 3.5 25.7 +/- 0.8 25.9 +/- 2
Elevation Beamwidth 3dB Deg 6.6 +/- 0.5 6 +/- 0.1 5.8 +/- 0.5 5 +/- 0.1 4.7 +/- 0.5
Beam Center Deg +/-27 +/-27 +/-27 +/-27 +/-27
Cross Polar Discrimination at Boresight dB 21 23 23 21.7 18.8
Cross Polar Discrimination over Sector dB 8 10 11 8 2
F/B at +/-30deg Total Power dB 27 28 27 24 24
First Upper Side Lobe Suppression dB 18 19 18.3 15.9 16
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
Beam Isolation dB 30
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2690 MHz) [Y2]
Frequency Band MHz 1710 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 20.9 21.3 21.2 21.1 22.1
Gain Over all Tilts dBi 19.9 +/- 1 20.8 +/- 0.5 21 +/- 0.2 21 +/- 0.1 21.6 +/- 0.5
Azimuth Beamwidth 3dB Deg 37.8 +/- 2.5 32.9 +/- 2 29.8 +/- 3.5 25.9 +/- 1 25.9 +/- 2
Elevation Beamwidth 3dB Deg 6.7 +/- 0.5 6 +/- 0.1 5.9 +/- 0.5 5 +/- 0.1 4.8 +/- 0.5
Beam Center Deg +/-27 +/-27 +/-27 +/-27 +/-27
Cross Polar Discrimination at Boresight dB 20 21 20 20 18
Cross Polar Discrimination over Sector dB 10 10 10 9 5
F/B at +/-30deg Total Power dB 27 28 28 26 23
First Upper Side Lobe Suppression dB 19 19 19 20 18
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 26
Beam Isolation dB 30
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

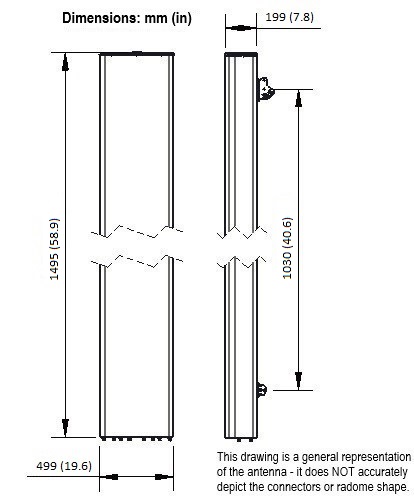

Dimensions - H x W x Dmm (in)1498 x 499 x 199 (59 x 19.6 x 7.8)
Weight (Antenna Only)kg (lb)26 (57.3)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)1785 x 620 x 320 (70.3 x 24.4 x 12.6)
Shipping Weightkg (lb)38 (83.8)
Connector type4 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiberglass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN918
Wind Load @Rated Wind SideN314
Wind Load @Rated Wind RearN1024
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXV3LL15B_43-C-I20 Internal RET(ACU-I20-B2) APM50-B1 50-110mm 38.0 Kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
