APXV3R13B_43-H
Single Band (2 Port) Antenna, 1710-2170MHz, 33deg, 19.4dBi, 1.2m, 0-10deg, Manual VET

Rev : A | Rev date : 17 May 2021

FEATURES / BENEFITS

  • 2 ports / 1 system in high band (1710-2170MHz), 33deg.
  • Manual VET


Technical features

Electrical Specifications

Electrical Specification HeaderHigh Band Array (1710-2170 MHz) [B1]
Frequency Band MHz 1710-1880 1920-2170
Gain Typical dBi 19.4 19.4
Gain Over all Tilts dBi 19.1 +/- 0.3 19.2 +/- 0.2
Azimuth Beamwidth 3dB Deg 31.7 +/- 1.8 28.2 +/- 1.5
Elevation Beamwidth 3dB Deg 8.3 +/- 0.5 7.5 +/- 0.5
Cross Polar Discrimination at Boresight dB 21.8
Cross Polar Discrimination over Sector dB 6.6 10.1
F/B at +/-30deg Total Power dB 28.8 29.9
First Upper Side Lobe Suppression dB 19.3 17.5
Electrical Downtilt Deg 0 to 10
Cross Polar Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 200

Electrical Specifications

ImpedanceOhm50
PolarizationDeg+/-45

Mechanical Specifications

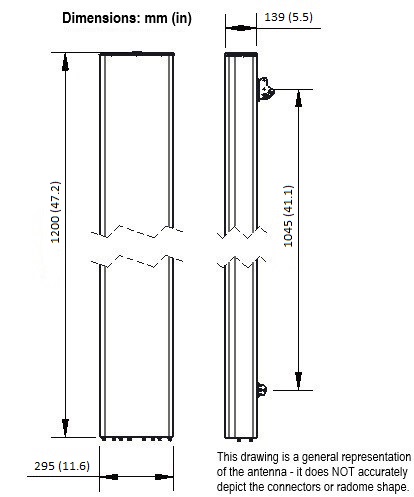

Dimensions - H x W x Dmm (in)1200 x 290 x 139 (47.2 x 11.4 x 5.5)
Weight (Antenna Only)kg (lb)15 (33.1)
Weight (Mounting Hardware only)kg (lb)0.1 (0.2)
Packing size- HxWxDmm (in)1470 x 380 x 230 (57.9 x 15 x 9.1)
Shipping Weightkg (lb)19.1 (42.1)
Connector type2x 4.3-10 female/bottom
Radome Material / ColorUPVC / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN427
Wind Load @Rated Wind SideN176
Wind Load @Rated Wind RearN509
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting Pipe Diameter Shipping Weight
APXV3R13B_43-H Manual VET APM50-BH (Hose Clamp) 65-115mm 19.1 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click "External Document Links".
