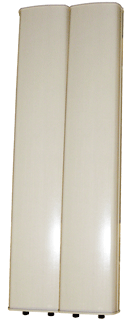

APXV9RR13-C-NA20
Optimizer® Dual Polarized Antenna, 1710-2170MHz, 90deg, 16.5dBi, 1.3m, VET, 0-9deg, RET

Rev : F | Rev date : 23 Feb 2021

This X-Polarized side-by-side variable tilt antenna provides exceptional suppression of all upper sidelobes at all downtilt angles. It also features a wide downtilt range.

FEATURES / BENEFITS

  • Variable electrical downtilt provides enhanced precision in controlling intercell interference. The tilt is infield adjustable 0-9 deg.
  • High Suppression of all Upper Sidelobes (Typically <-18dB)
  • Low profile for low visual impact
  • Dual polarization
  • Broadband design
  • AISG 2.0 Compatible antenna control unit


Technical features

Electrical Specifications

Frequency Range MHz1710-19001900-2170
Gain dBi (dBd)16.5 (14.4)

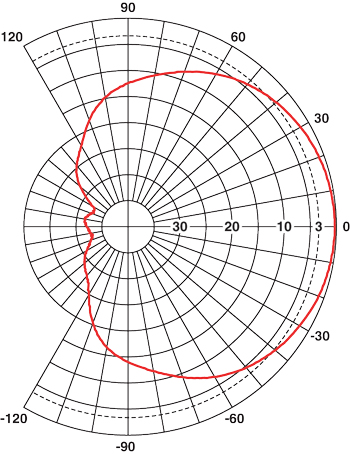

Horizontal Beamwidth deg8894

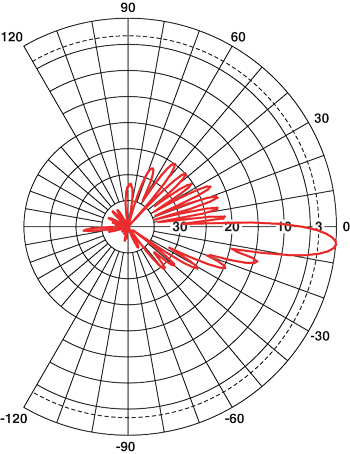

Vertical Beamwidth deg7.06.4
Electrical Downtilt Range deg0-9
1st Upper Sidelobe Suppression dB>17 all others (typically >20)
Upper Sidelobe Suppression dB>17 all others (typically >20)
Front-To-Back Ratio dB>26
PolarizationDual pol +/-45°
VSWR< 1.5:1
Isolation between Ports dB>30
3rd Order IMP @ 2 x 43 dBmdBc>153, NA
7th Order IMP @ 2x46 dBm dBcNA, >170
Cross Polar Discrimination (XPD) 0° dB>15 at 0 deg
Cross Polar Discrimination (XPD) ± 60° dB>10 at +/-60 deg
HBW Squint accross same band ports °+/-5
Impedance Ohms50
Maximum Power Input W300
Beamwidth Approximate deg90
Antenna TypeDual Polarized-Side by Side
Electrical Down Tilt OptionVariable

Mechanical Specifications

Lightning ProtectionDirect Ground
Connector Type/Location(4) 7-16 Long Neck Female/Bottom
Dimensions - HxWxD mm (in)1349 x 356 x 80 (53 x 14 x 3.15)
Weight w/o Mtg Hardware kg (lb)18.1 (40)
Survival/Rated Wind Speed km/h (mph]240 (150) / 160 (100)
Wind Load @ Rated Wind, FrontN (lbf)677 (152)
Wind Load @ Rated Wind, SideN (lbf)70 (16)
Mount TypeDowntilt
Height (Approximate) ft.4.25

Testing and Environmental

Operation temperature °C (°F)-40 to 60 (-40 to 140 )

Material

Mounting Hardware MaterialAPM40-1 + 30019995

Ordering Information

Mounting HardwareAPM40-1 + 30019995
Mounting Pipe Diameter mm (in)60 - 120 (2.36 - 4.72 )

Notes

Available Configurations

  • APXV9RR13-C-NA20 – Pre-commissioned ACUs included and 0.5m AISG Jumper.

For additional mounting information please click ""External Document Links"".
