APXV9TM13_43-C-I20
TDD 8T8R Antenna, X-Pol, 1.3m, 2460-2690 MHz, 90deg unit beam, Integrated RET

Rev : E | Rev date : 11 Aug 2021

FEATURES / BENEFITS

  • TDD beamforming 8T8R
  • Integrated RET
  • ACU-A20-S, ACU HW Version HW05
  • Compliant with AISG V2.0 and 3GPP
  • Mechanical down tilt kit included

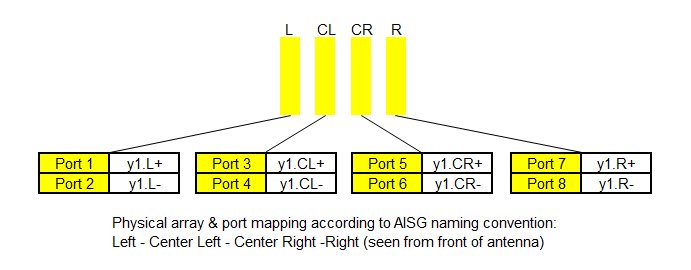

  • 58 mm column spacing - .5 wavelength @ 2.6 GHz




Technical features

Electrical Specifications

Electrical Specification HeaderUnit Beam (2496-2690MHz) Ports 1-8
Frequency Band MHz 2496 - 2690
Gain dBi 17.0
Azimuth Beamwidth 3dB Deg 82 +/- 10
Elevation Beamwidth 3dB Deg 5.0 +/- 0.3
Cross-Pol at Boresight dB 17
F/B at 180 Copolar dB 29
Electrical Downtilt Deg 0 to 9
First Upper Side Lobe dB 15
VSWR - 1.5:1
Return Loss dB -14
Cross Polar Isolation dB 25
3rd Order PIM 2 x 43dBm dBc -150
Gain Over All Tilts dBi 16.5 +/- 0.5
Cross-Pol over Sector dB 9
F/B at +/-30 Total Power dB 22
Upper Side Lobe Peak to +20 dB 15

Electrical Specifications

Electrical Specification HeaderBroadcast Beam 65 Degrees (2496-2690MHz)
Frequency Band MHz 2496 - 2690
Gain dBi 18.4
Azimuth Beamwidth 3dB Deg 60 +/- 6
Elevation Beamwidth 3 dB Deg 5.0 +/- 0.3
Cross-Pol at Boresight dB 22
F/B at 180 Copolar dB 36
Electrical Downtilt Deg 0 to 9
First Upper Side Lobe dB 15
Gain Over all Tilts dBi 17.9 +/- 0.5
Cross-Pol over Sector dB 11
F/B at +/-30 Total Power dB 25
Upper Side Lobe Peak to +20 dB 16

Electrical Specifications

Electrical Specification HeaderBroadcast Beam 90 Degrees (2496-2690MHz)
Frequency Band MHz 2496 - 2690
Gain dBi 17.5
Azimuth Beamwidth 3dB Deg 91 +/- 4
Elevation Beamwidth 3 dB Deg 5.0 +/- 0.3
Cross-Pol at Boresight dB 21
F/B at 180 Copolar dB 31
Electrical Downtilt Deg 0 to 9
First Upper Side Lobe dB 17
Gain Over all Tilts dBi 17.0 +/- 0.5
Cross-Pol over Sector dB 10
F/B at +/-30 Total Power dB 25
Upper Side Lobe Peak to +20 dB 15

Electrical Specifications

Electrical Specification HeaderSERVICE BEAM at 0deg (2496-2690MHz)
Frequency Band MHz 2496 - 2690
Gain dBi 21.9
Azimuth Beamwidth 3dB Deg 28 +/- 1
Elevation Beamwidth 3 dB Deg 5.0 +/- 0.3
Cross-Pol at Beam Peak dB 20
F/B at 180 Copolar dB 36
Electrical Downtilt Deg 0 to 9
First Upper Side Lobe dB 16
Gain Over All Tilts dBi 21.4 +/- 0.5
Cross-Pol over 3dB dB 19
F/B at +/-30 Total Power dB 31
Upper Side Lobe Peak to +20 dB 16

Electrical Specifications

Electrical Specification HeaderSERVICE BEAM at 30deg(2496-2690MHz)
Frequency Range MHz 2496-2690
Gain dBi 20.5
Azimuth Beamwidth 3dB Deg 32 +/- 1
Elevation Beamwidth 3dB Deg 5.0 +/- 0.4
Cross-Pol at Beam Peak dB 15
F/B at 180 Copolar dB 30
Electrical Downtilt Deg 0 to 9
First Upper Side Lobe dB 17
Gain Over All Tilts dBi 20.1 +/- 0.4
Cross-Pol over 3dB dB 14
F/B at +/-30 Total Power dB 28
Upper Side Lobe Peak to +20 dB 17

Electrical Specifications

Electrical Specification HeaderCALIBRATION & ELECTRICAL PARAMETERS (2496-2690MHz)
Frequency Range MHz 2496-2690
Transmission from antenna ports to CAL port dB 26 +/- 2
Amplitude Diff Between antenna port and CAL port dB < 0.7
Phase Diff Between antenna port and CAL port Deg <5
Same Polarization ISO dB >20 (typical)
Different Polarization ISO dB 25

Electrical Specifications

ImpedanceOhm50
PolarizationDeg+/- 45

Mechanical Specifications

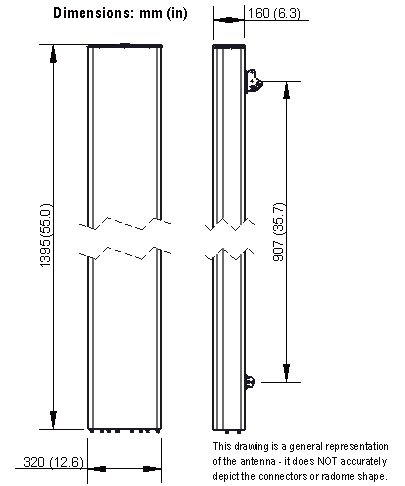

Dimensions - H x W x Dmm (in)1395 x 320 x 160 (55 x 12.6 x 6.3)
Weight (Antenna Only)kg (lb)25 (55)
Weight (Mounting Hardware only)kg (lb)3.5 (7.7)
Packing size- HxWxDmm (in)1540 x 400 x 360 (60.6 x 15.7 x 14.2)
Shipping Weightkg (lb)32 (70.5)

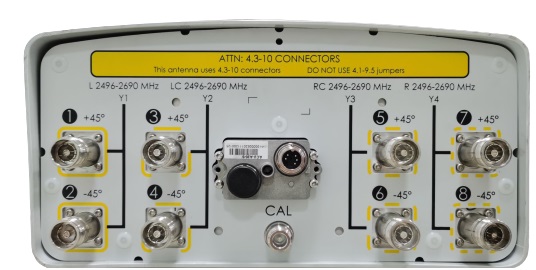

Connector type8x 4.3-10 female + 2 AISG connectors (1 male, 1 female)

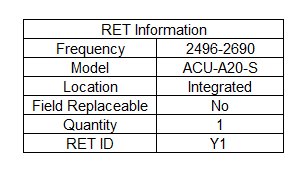

Adjustment mechanismIntegrated RET solution AISG compliant
Radome Material / ColorASA / Light Grey RAL7035
Mechanical Distance between Mointing Pointsmm (in)907 (35.7)

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (160 )
Wind Load @Rated Wind FrontN616
Wind Load @Rated Wind SideN473
Wind Load @Rated Wind RearN572
EnvironmentalETSI 300-019-2-4 Class 4.1E
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXV9TM13_43-C-I20 ACU-A20-S Integrated RET APM40-2 Beam tilt kit 60-120mm 32kg (70.5)

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
