APXV9TY10AB_43-C-I20
TDD Beamforming 3.5GHz Antenna, 8+1 ports, 3300-3800MHz, 1.0m, 90deg, 15.5/13.2/19.3dBi, Integrated RET, 2-12°

This antenna offers 4 columns (8 Ports) for 3.5GHz beamforming.
It is ideal for 5G introduction

FEATURES / BENEFITS

  • Beamforming applications in the 3.5GHz band (3300-3800MHz)
  • Multiple Individual Beam Control (Unit Beam)
  • Single High Powered Beam Option (Broadcast Beam)
  • Beam steering flexibility (Service Beam)
  • Calibration Port functionality for precise steering performance
  • Variable electrical down tilt 2-12 degrees (Integrated RET)
  • Dipole spacing: 55mm
  • SRET -Field replaceable / ACU HW Version -2.02 / SW Version -2.72


Technical features

Electrical Specifications - 02

Electrical Specification Header 2Cal.board and S parameter (3300-3800 MHz)
Frequency Band MHz 3300-3600 3600-3800
Coupling between cal. Port to input port dB -26+/-2
Coupling amplitude accuracy dB ≤ 0.7
Coupling phase accuracy deg ≤ 5
VSWR - ≤ 1.5
Maximum Power Watt 50
ISO co-polor @2-6 deg tilt dB ≥ 20
ISO co-polor @7-12 deg tilt dB ≥ 25
ISO cross-polor @2-6 deg tilt dB ≥ 25
ISO cross-polor @7-12 deg tilt dB ≥ 27

Electrical Specifications - 04

Electrical Specification Header 4Radiation Parameter - Unit Beam (3300-3800 MHz)
Frequency Band MHz 3300-3600 3600-3800
Gain Typical dBi 15.5 14.9
Gain Over all Tilts dBi 14.7+/-0.8 14.3+/-0.6
Azimuth Beamwidth 3dB Deg 88.2+/-8.1 80.5+/-5.7
Elevation Beamwidth 3dB Deg 6.2+/-0.5 5.9+/-0.4
Cross Polar Discrimination at Boresight dB 20.7 22.5
Cross Polar Discrimination over Sector dB 16.3 14.6
F/B at +/-30deg Total Power dB 18.5 19.8
First Upper Side Lobe Suppression dB 16.4 17.2
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 25(2-6 deg.) / 27(7-12 deg.)
Co-polar Isolation dB 20(2-6 deg.) / 25(7-12 deg.)
VSWR - 1.5

Electrical Specifications - 05

Electrical Specification Header 5Radiation Parameter - Broadcasting Beam (3300-3800 MHz)
Frequency Band MHz 3300-3600 3600-3800
Gain Typical dBi 13.2 12.7
Gain Over all Tilts dBi 12.6+/-0.6 12.1+/-0.6
Azimuth Beamwidth 3dB Deg 62.2+/-15.3 59.1+/-5.7
Elevation Beamwidth 3dB Deg 6.2+/-0.7 5.9+/-0.5
Cross Polar Discrimination at Boresight dB 21.2 25.4
Cross Polar Discrimination over Sector dB 13.7 13.1
F/B at +/-30deg Total Power dB 20.6 21.6
First Upper Side Lobe Suppression dB 12.8 17
Electrical Downtilt Deg 2 to 12
VSWR - 1.5

Electrical Specifications - 06

Electrical Specification Header 6Radiation Parameter - Working Beam (3300-3800 MHz)
Frequency Band MHz 3300-3600 3600-3800
Gain Typical dBi 19.3 18.4
Gain Over all Tilts dBi 18.7+/-0.6 18.0+/-0.4
Azimuth Beamwidth 3dB Deg 24.9+/-1 23.5+/-0.6
Elevation Beamwidth 3dB Deg 6.1+/-0.6 5.9+/-0.4
Cross Polar Discrimination at Boresight dB 23.1 25.6
Cross Polar Discrimination over Sector dB 8.3 3.6
F/B at +/-30deg Total Power dB 24.9 23.8
First Upper Side Lobe Suppression dB 15.6 19.1
Electrical Downtilt Deg 2 to 12
VSWR - 1.5

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

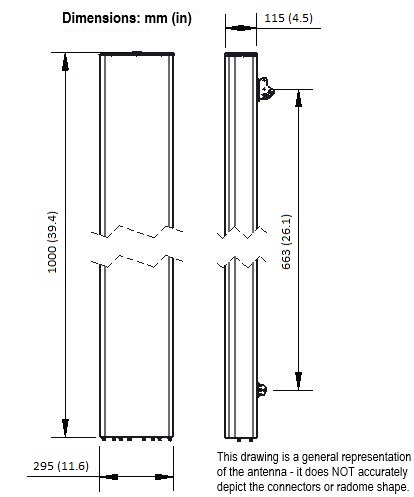

Dimensions - H x W x Dmm (in)1050 x 288 x 118 (41.3 x 11.3 x 4.6)
Weight (Antenna Only)kg (lb)10.5 (23.1)
Packing size- HxWxDmm (in)1300 x 370 x 196 (51.2 x 14.6 x 7.7)
Shipping Weightkg (lb)19 (41.9)
Connector type8x 4.3-10 female + 1 female (Calibration Port) + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorASA / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Ground
Survival/Rated Wind Velocitykm/h220 (150 )
Wind Load @Rated Wind FrontN609
Wind Load @Rated Wind SideN237
Wind Load @Rated Wind RearN731
Survival wind Velocity km/h220

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXV9TY10AB_43-C-I20 Internal RET(ACU-I20-B1) APM50-B1 50-110mm 19.0 Kg

Internal Component 1

Temperature Range °C(°F)-40 to 60 (-40 to 140 )
Lightning ProtectionDC Ground
Application StandardWireless Communication

Internal Component 2

Temperature Range °C(°F)-40 to 60 (-40 to 140 )
Lightning ProtectionDC Ground
Application StandardWireless Communication

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
