APXV9TY10AEB_43-C-I20
TDD 8T8R Antenna, X-Pol, 1.0m, 3300-4200MHz, 90deg unit beam, Integrated RET

Rev : A | Rev date : 06 Apr 2022

FEATURES / BENEFITS

  • Beamforming applications in the 4.2GHz band (3300-4200MHz)
  • Multiple Individual Beam Control (Unit Beam)
  • Single High Powered Beam Option (Broadcast Beam)
  • Beam steering flexibility (Service Beam)
  • Calibration Port functionality for precise steering performance

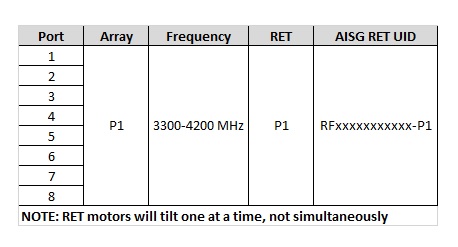

  • Integrated and field replaceable SRET
  • ACU HW Version: 2.02
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications

Electrical Specification HeaderCal.board and S parameter (3300-4200 MHz)
Frequency Band MHz 3300-3600 3600-3800 3800-4200
Coupling between cal. Port to input port dB -26+/-2
Coupling amplitude accuracy dB ≤ 0.7
Coupling phase accuracy deg ≤ 5
VSWR - ≤ 1.5
Maximum Power Watt 50
ISO co-polor @2-6 deg tilt dB ≥ 20
ISO co-polor @7-12 deg tilt dB ≥ 25
ISO cross-polor @2-6 deg tilt dB ≥ 25
ISO cross-polor @7-12 deg tilt dB ≥ 27

Electrical Specifications

Electrical Specification HeaderRadiation Parameter - Unit Beam (3300-4200 MHz)
Frequency Band MHz 3300-3600 3600-3800 3800-4200
Gain Typical dBi 15.4 15.9 16.2
Gain Over all Tilts dBi 14.5 +/- 0.9 15.1 +/- 0.8 15.4 +/- 0.8
Azimuth Beamwidth 3dB Deg 93.2 +/- 14.1 85.8 +/- 8 86 +/- 6.7
Elevation Beamwidth 3dB Deg 5.6 +/- 0.4 5.3 +/- 0.4 5 +/- 0.4
Cross Polar Discrimination at Boresight dB 19.2 19.1 17.4
Cross Polar Discrimination over Sector dB 11.9 10.9 8.7
F/B at +/-30deg Total Power dB 18.4 20.1 19.8
First Upper Side Lobe Suppression dB 13.3 13.1 12.8
Electrical Downtilt Deg 2 to 12
VSWR - 1.5

Electrical Specifications

Electrical Specification HeaderRadiation Parameter - Broadcasting Beam (3300-4200 MHz)
Frequency Band MHz 3300-3600 3600-3800 3800-4200
Gain Typical dBi 17 17 17.6
Gain Over all Tilts dBi 16.4+/-0.6 16.6+/-0.4 16.9+/-0.7
Azimuth Beamwidth 3dB Deg 66+/-6.7 60+/-4.2 65+/-6.0
Elevation Beamwidth 3dB Deg 5.6+/-0.5 5.2+/-0.4 5.0+/-0.8
F/B at +/-30deg Total Power dB 25
First Upper Side Lobe Suppression dB 16
Electrical Downtilt Deg 2 to 12
VSWR - 1.5

Electrical Specifications

Electrical Specification HeaderRadiation Parameter - Working Beam (3300-4200 MHz)
Frequency Band MHz 3300-3600 3600-3800 3800-4200
Gain Typical dBi 22.2 22.4 22.3
Gain Over all Tilts dBi 21.6+/-0.6 21.8+/-0.6 21.7+/-0.6
Azimuth Beamwidth 3dB Deg 24.9+/-1.0 23.6+/-0.8 22.8+/-1.7
F/B at +/-30deg Total Power dB 25
Electrical Downtilt Deg 2 to 12
VSWR - 1.5

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

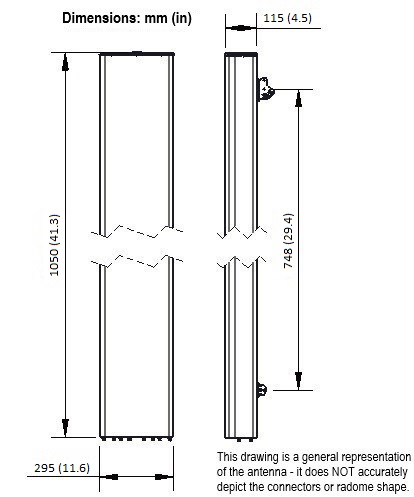

Dimensions - H x W x Dmm (in)1050 x 288 x 118 (41.3 x 11.3 x 4.6)
Weight (Antenna Only)kg (lb)10.5 (23.1)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)1300 x 370 x 196 (51.2 x 14.6 x 7.7)
Shipping Weightkg (lb)19 (41.9)
Connector type8x 4.3-10 female + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorASA / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Ground

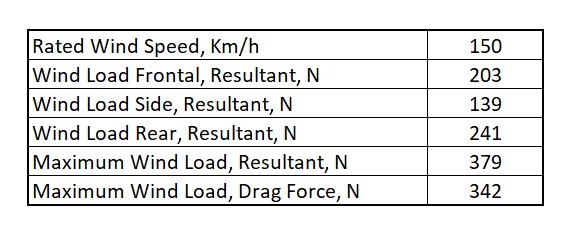

Survival/Rated Wind Velocitykm/h200 (150 )

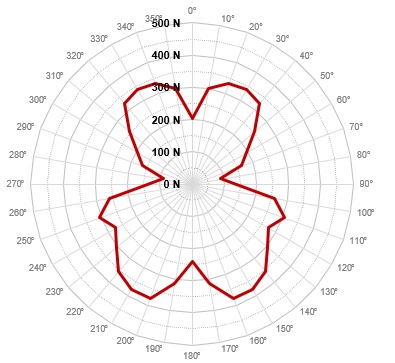

Wind Load @Rated Wind FrontN218
Wind Load @Rated Wind SideN224
Wind Load @Rated Wind RearN253
Survival wind Velocity km/h220

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXV9TY10AEB_43-C-I20 Internal RET(ACU-I20-B1) APM50-B1 50-110mm 19.0 Kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • Horizontal dipole column spacing: 42mm.
  • For additional mounting information please click "External Document Links".
  • This datasheet is provisional and subject to changes.
