APXVAA18X_43-U-A20
Dual Slant Polarized Dual Band (4 Port) Antenna, 617-894/617-894 MHz, 65 deg, 15.2/15.2 dBi, 1.8m(6ft), VET, RET, 2-12° Tilt Range



FEATURES / BENEFITS

This antenna provides a 4 Port multi-band flexible platform for use in deployment scenarios  encompassing 600, 700, 800 applications.

  • 24 Inch Width For Easier Zoning
  • Superior elevation pattern performance across the entire electrical down tilt range
  • Low band arrays driven by a single RET motor



  • Field Replaceable (Integrated) ACU-A20-SR RET Motor




Technical features

Electrical Specifications - 01

Electrical Specification Header 1LOW BAND LEFT ARRAY (617-894 MHZ) [R1]
Frequency Range MHz 617-698 698-746 746-806 806-894
Gain Typical dBi 14.4 14.9 15.0 15.2
Gain Over All Tilts dBi 13.9+/-0.5 14.5+/-0.4 14.7+/-0.3 14.8+/-0.4
Horizontal Beamwidth deg 67 +/- 3 64 +/- 3 63 +/- 2 62 +/- 2
Vertical Beamwidth deg 14.9+/-1.3 13.1+/-0.8 12.2+/-0.7 10.9+/-0.7
Electrical Downtilt Range deg 2 to 12
Upper Side Lobe Suppression Peak to +20 dB 22 22 21 18
Front to Back Ratio +/-30 Copolar dB 27 25 26 28
Cross Polar Isolation Between Ports dB 25
Cross Polarization (XPD) @ Boresight dB 16 18 17 19
Cross Polarization (XPD) @ +/-60 dB 8 7 6 6
VSWR 1.5:1
3rd Order IMP 2 x 43dBm dBc / - 153 - 153 - 153
Maximum Power Input Watts 400

Electrical Specifications - 02

Electrical Specification Header 2LOW BAND RIGHT ARRAY (617-894 MHZ) [R2]
Frequency Range MHz 617-698 698-746 746-806 806-894
Gain Typical dBi 14.4 14.9 15.0 15.2
Gain Over All Tilts dBi 13.9+/-0.5 14.5+/-0.4 14.7+/-0.3 14.8+/-0.4
Horizontal Beamwidth deg 67 +/- 3 64 +/- 3 63 +/- 2 62 +/- 2
Vertical Beamwidth deg 14.9+/-1.3 13.1+/-0.7 12.1+/-0.6 10.9+/-0.7
Electrical Downtilt Range deg 2 to 12
Upper Side Lobe Suppression Peak to +20 dB 22 20 19 18
Front to Back Ratio +/-30 Copolar dB 27 27 25 26
Cross Polar Isolation Between Ports dB 25
Cross Polar Discrimination (XPD) @ Boresight dB 16 17 17 18
Cross Polar Discrimination (XPD) @ +/- 60 dB 8 5 5 7
VSWR 1.5:1
3rd Order IMP 2 x 43dBm dBc / - 153 - 153 - 153
Maximum Power Input Watts 400

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

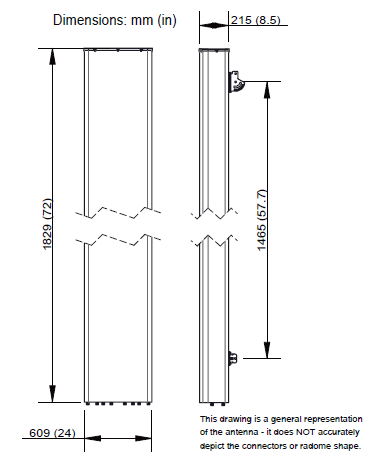

Dimensions - H x W x Dmm (in)1829 x 609 x 215 (72 x 24 x 8.5)
Weight (Antenna Only)kg (lb)34 (75)
Weight (Mounting Hardware only)kg (lb)11.5 (25.4)
Packing size- HxWxDmm (in)1980 x 735 x 375 (78 x 28.9 x 14.8)
Shipping Weightkg (lb)54 (119)
Connector type4 x 4.3-10 Long Neck Female/Bottom + 2 AISG connectors (1 male, 1 female)
Adjustment mechanismACU-A20-SR Integrated RET solution AISG compliant (Field Replaceable) + Manual Override + External Tilt Indicator
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h240 (150 )
Wind Load @Rated Wind FrontN1072
Wind Load @Rated Wind SideN326
Wind Load @Rated Wind RearN1160
Survival wind Velocity km/h240

Ordering Information

Model Number Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVAA18X_43-U-A20 ACU-A20-SR Field Replaceable RET Included (1) APM40-5E Beam tilt kit (Included) 60-120mm 54kg (119lbs)

Internal Component 1

Temperature Range °C(°F)-40 to 60 (-40 to 140 )
Lightning ProtectionDirect Ground
Application StandardWireless Communication

Internal Component 2

Temperature Range °C(°F)-40 to 60 (-40 to 140 )
Lightning ProtectionDirect Ground
Application StandardWireless Communication

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
