APXVAA24X_43-U-A20
Dual Slant Polarized Dual Band (4 Port) Antenna, x2 617-894 MHz, 65deg, 2.4m (8ft), RET, 2-12°

Rev : F | Rev date : 13 May 2021

FEATURES / BENEFITS

This antenna provides a 4 Port multi-band flexible platform for use in deployment scenarios  encompassing 600, 700, 800 applications.

  • 24 Inch Width For Easier Zoning
  • Superior elevation pattern performance across the entire electrical down tilt range
  • Low band arrays driven by a single RET motor

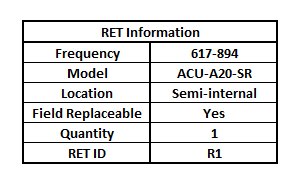

  • ACU-A20-SR Field Replaceable (Integrated) AISG RET motor


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Arrays (617-894 MHz) Ports 1-4
Frequency Band MHz 617-698 698-746 746-806 806-894
Gain dBi 15.9 16.2 16.2 16.3
Azimuth Beamwidth 3dB Deg 67 +/-3 63+/-4 62+/-3 62+/-2
Elevation Beamwidth 3dB Deg 10.1+/-0.5 9.2+/-0.4 8.5+/-0.3 7.9+/-0.4
Cross-Pol at Boresight dB 17 18 19 20
F/B at 180 Copolar dB 28 29 32 34
Electrical Downtilt Deg 2 to 12 2 to 12 2 to 12 2 to 12
First Upper Side Lobe dB 19 19 18 17
VSWR - 1.5:1 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14 -14
Cross Polar Isolation dB 25 25 25 25
3rd Order PIM 2 x 43dBm dBc -153 -153 -153 -153
Maximum CW Power per Port Watt 400 400 400 400
Gain Over All Tilts dBi 15.4+/-0.5 15.7+/-0.5 15.6+/-0.6 15.9+/-0.5
Cross-Pol over Sector dB 8 6 5 6
F/B at +/-30 Total Power dB 19 19 20 22
Upper Side Lobe Peak to +20 dB 18 18 18 17

Electrical Specifications

ImpedanceOhm50
PolarizationDeg+/- 45

Mechanical Specifications

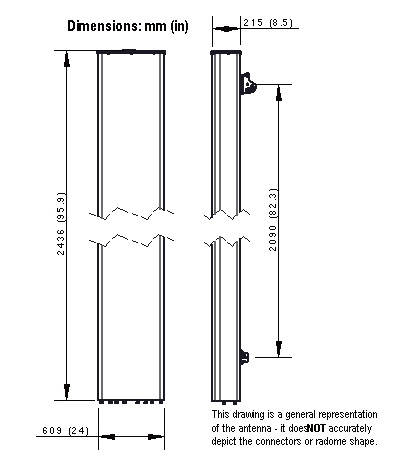

Dimensions - H x W x Dmm (in)2436 x 609 x 215 (95.9 x 24 x 8.5)
Weight (Antenna Only)kg (lb)43.7 (96.3)
Weight (Mounting Hardware only)kg (lb)12.3 (27.1)
Packing size- HxWxDmm (in)2565 x 735 x 390 (101 x 28.9 x 15.4)
Shipping Weightkg (lb)65.9 (145.3)

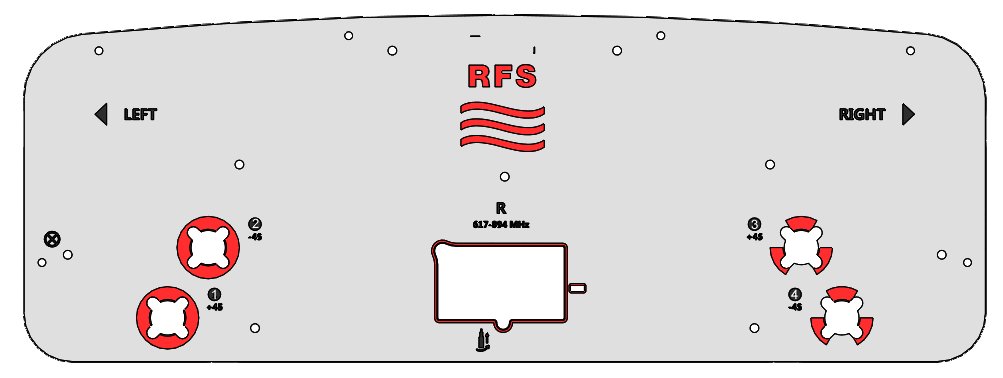

Connector type4 x 4.3-10 female at bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Grounded
Survival/Rated Wind Velocitykm/h240 (150 )
Wind Load @Rated Wind FrontN1428
Wind Load @Rated Wind SideN434
Wind Load @Rated Wind RearN1544
Survival wind Velocity km/h240

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVAA24X_43-U-NA20 ACU-A20-SR Field Replace RET included (1) APM40-5E Beam tilt kit (included) 60-120mm 65.9 Kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
