APXVAA24_43-U-A20
Dual Slant Polarized Dual Band (4 Port) Antenna, 617-746MHz, 65 deg, 15.6dBi, 2.4m(8ft), VET, RET, 0-11° Tilt Range

Rev : I | Rev date : 03 Jan 2023

FEATURES / BENEFITS

This antenna provides a four port platform for advanced use in 600MHz and 700MHz deployment scenarios in a high quality package design built to withstand harsh environments.


  • 24-Inch Width for Easier Zoning
  • Field Replaceable (Integrated) AISG RET platform for reduced environmental exposure and long lasting quality.
  • Superior elevation performance across the entire electrical down tilt range.
  • High Gain performance for optimum site coverage, reduced power and signal integrity.
  • Excellent Front-to-Back Ratio for less interference from neighboring cells.
  • Manual Override feature for electrical downtilt adjustment.
  • Both arrays driven by one RET




Technical features

Electrical Specifications

Electrical Specification HeaderAntenna Performance - LEFT R1
Frequency Range MHz 617-698MHz 698-746MHz
Gain Over All Tilts dBi 15.3 +/- .5 15.7 +/- .4
Horizontal Beamwidth deg 68 +/- 2 65 +/- 3
Vertical Beamwidth deg 10.6 +/- .5 9.8 +/- .3
Electrical Downtilt Range deg 0-11 0-11
Upper Side Lobe Suppression Peak to +20 dB 21 21
Upper Side Lobe Suppression 0 to +20 dB 20 21
Front to Back Ratio +/-30 Copolar dB 27 28
Cross Polar Isolation Between Ports dB 26 26
Cross Polarization (XPD) @ Boresight dB 27 27
Cross Polarization (XPD) @ +/-60 dB 10 7
VSWR - 1.5:1 1.5:1
3rd Order IMP 2 x 43dBm dBc - -153
Maximum Power Input Watts 250 250

Electrical Specifications

Electrical Specification HeaderAntenna Performance - RIGHT R2
Frequency Range MHz 617-698 698-746
Gain Over All Tilts dBi 15.2 +/- .3 15.5 +/- .4
Horizontal Beamwidth deg 68 +/- 2 64 +/- 3
Vertical Beamwidth deg 10.6 +/- .5 9.8 +/- .3
Electrical Downtilt Range deg 0-11 0-11
Upper Side Lobe Suppression Peak to +20 dB 21 23
Upper Side Lobe Suppression 0 to +20 dB 19 20
Front to Back Ratio +/-30 Copolar dB 27 28
Cross Polar Isolation Between Ports dB 26 26
Cross Polar Discrimination (XPD) @ Boresight dB 24 24
Cross Polar Discrimination (XPD) @ +/- 60 dB 10 7
VSWR - 1.5:1 1.5:1
3rd Order IMP 2 x 43dBm dBc - -153
Maximum Power Input Watts 250 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

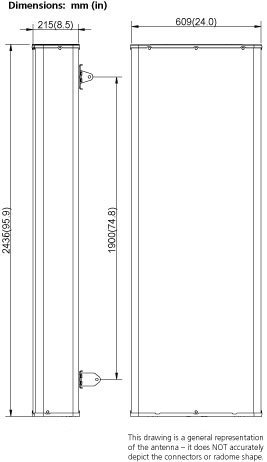

Dimensions - H x W x Dmm (in)2435 x 609 x 215 (95.9 x 24 x 8.5)
Weight (Antenna Only)kg (lb)45 (99)
Weight (Mounting Hardware only)kg (lb)11.5 (25.3)
Packing size- HxWxDmm (in)2550 x 714 x 365 (100.4 x 28.1 x 14.4)
Shipping Weightkg (lb)67 (147.4)
Connector type4 x 4.3-10 Long Neck Female/Bottom + 2 AISG connectors (1 male, 1 female)
Adjustment mechanismIntegrated RET solution AISG compliant (Field Replaceable) + Manual Override + External Tilt Indicator
Mounting Hardware MaterialGalvanized steel
Radome Material / ColorFiber Glass/ Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h241 (150 )
Survival wind Velocity km/h241

Ordering Information

Model Number Configuration Mounting Hardware Mounting pipe Diameter Antenna Weight
APXVAA24_43-U-A20 Field Replaceable RET Included (1) APM40-5E Beam tilt kit (Included) 60-120mm 67.0kg (147 lbs)

External Document Links

Notes

All electrical parameters are compliant with BASTA NGMN 9.6 requirements.

For additional mounting information please click ""External Document Links"".
