APXVAA4L18N_43-U-I20
12-Ports, X-Pol, Panel Antenna, 1.8m, 2x 617-894/ 4x 1695-2690 MHz 65deg, Integrated RET

Rev : F | Rev date : 27 Feb 2023

FEATURES / BENEFITS

Narrow 499 mm radome for reduced windloading and easier zoning

  • MIMO 4x4 in low-band and mid-band x2(L/LC & RC/R)

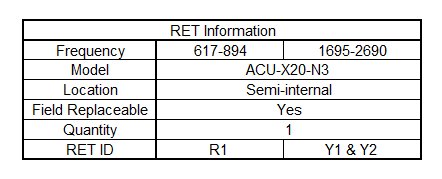

  • Integrated and field replaceable mRET
  • ACU model number: ACU-X20-N3,
  • Compliant with AISG V2.0 and 3GPP
  • Mechanical down tilt kit included


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Arrays (617-894 MHz) Ports 1-4
Frequency Band MHz 617-698 698-806 806-894
Gain dBi 14.8 15.4 14.9
Azimuth Beamwidth 3dB Deg 71 +/- 8 66 +/- 8 67 +/- 8
Elevation Beamwidth 3dB Deg 14.1 +/- 1 12.9 +/- 1 11.4 +/- 1
Cross-Pol at Boresight dB 17 19 18
F/B at 180 Copolar dB 30 28 29
Electrical Downtilt Deg 2 to 12 2 to 12 2 to 12
First Upper Side Lobe dB 19 21 22
VSWR - 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14
Cross Polar Isolation dB 25 25 25
3rd Order PIM 2 x 43dBm dBc -153 -153 -153
Maximum CW Power per Port Watt 300 300 300
Gain Over All Tilts dBi 14.1 +/- 0.7 14.6 +/- 0.8 14.4 +/- 0.5
Cross-Pol over Sector dB 9 6 3
F/B at +/-30 Total Power dB 17 19 20
Upper Side Lobe Peak to +20 dB 21 22 21

Electrical Specifications

Electrical Specification HeaderMid Band Arrays (1695-2690 MHz) Ports 5-12
Frequency Band MHz 1695-1880 1850-1990 1920-2200 2200-2500 2500-2690
Gain dBi 17.7 17.8 18.6 18.6 18.3
Azimuth Beamwidth 3dB Deg 69 +/- 9 67 +/- 6 60 +/- 8 53 +/- 8 55 +/- 5
Elevation Beamwidth 3dB Deg 5.8 +/- 0.4 5.4 +/- 0.3 4.9 +/- 0.4 4.4 +/- 0.3 4.2 +/- 0.3
Cross-Pol at Boresight dB 19 18 17 18 16
F/B at 180 Copolar dB 28 28 28 29 30
Electrical Downtilt Deg 2 to 12 2 to 12 2 to 12 2 to 12 2 to 12
First Upper Side Lobe dB 19 20 19 19 20
VSWR - 1.5:1 1.5:1 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14 -14 -14
Cross Polar Isolation dB 25 25 25 25 25
3rd Order PIM 2 x 43dBm dBc -153 -153 -153 -153 -153
Maximum CW Power per Port Watt 300 300 300 300 300
Gain Over All Tilts dBi 16.8 +/- 0.9 17.4 +/- 0.4 17.9 +/- 0.7 18.0 +/- 0.6 17.6 +/- 0.7
Cross-Pol over Sector dB 7 5 2 1 2
F/B at +/-30 Total Power dB 22 22 22 22 22
Upper Side Lobe Peak to +20 dB 15 16 16 15 11

Electrical Specifications

ImpedanceOhm50
PolarizationDeg+/- 45

Mechanical Specifications

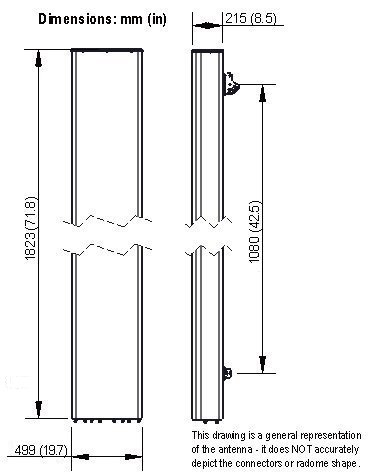

Dimensions - H x W x Dmm (in)1823 x 499 x 215 (71.8 x 19.7 x 8.5)
Weight (Antenna Only)kg (lb)31 (69)
Weight (Mounting Hardware only)kg (lb)8.8 (19.4)
Packing size- HxWxDmm (in)2030 x 560 x 285 (79.9 x 22 x 11.2)
Shipping Weightkg (lb)46 (101)

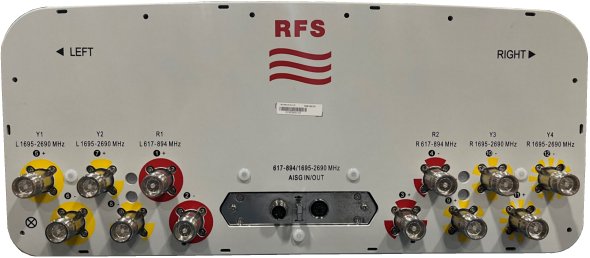

Connector type12 x 4.3-10 female at bottom
Radome Material / ColorASA / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h240 (150 )

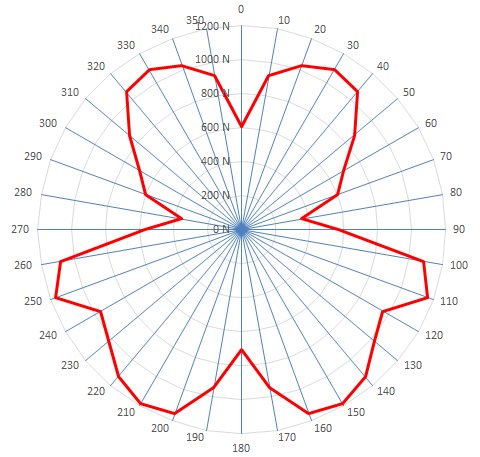

Wind Load @Rated Wind FrontN609
Wind Load @Rated Wind SideN572
Wind Load @Rated Wind RearN707
Survival wind Velocity km/h240

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVAA4L18N_43-U-I20 ACU-X20-N3 Field Replace RET included APM40-5E Beam tilt kit & APM40-E10T (included) 60-120mm 46 kg (101 lb)

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
