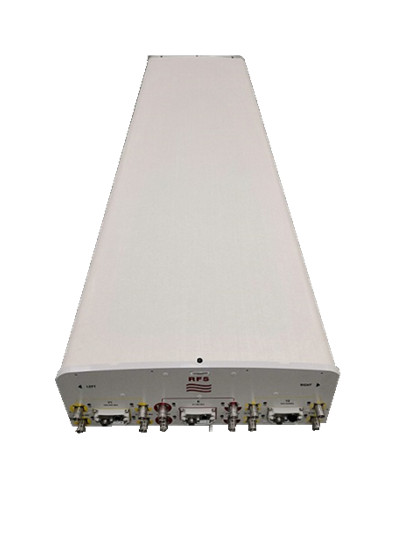

APXVAA4L18_43-U-NA20
12-Ports, X-Pol, Panel Antenna, 1.8m, 2x 617-894/4x 1695-2690 MHz 65deg, Integrated RET

FEATURES / BENEFITS

  • MIMO 4x4 in low-band and mid-band x2 (L/CL & CR/R)
  • Integrated and fieldreplaceable RET

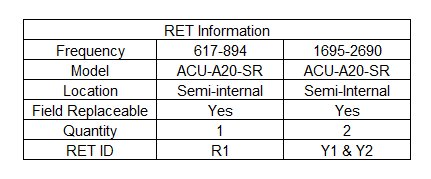

  • ACU model number: x3 ACU-A20-SR, ACU HW 05
  • Compliant with AISG V2.0 and 3GPP
  • AISG jumper cable included
  • Mechanical down tilt kit included
  • Manual overdrive


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Arrays (617-894 MHz) Ports 1-4
Frequency Band MHz 617-698 698-806 806-894
Gain dBi 14.3 14.4 14.6
Azimuth Beamwidth 3dB Deg 70 +/- 3 68 +/- 5 65 +/-5
Elevation Beamwidth 3dB Deg 15 +/- 1 13 +/- 1.3 11 +/-.7
Cross-Pol at Boresight dB 25 22 21
F/B at 180 Copolar dB 25 29 28
Electrical Downtilt Deg 2-12 2-12 2-12
First Upper Side Lobe dB 17 18 20
VSWR - 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14
Cross Polar Isolation dB 25 25 25
3rd Order PIM 2 x 43dBm dBc -153 -153 -153
Maximum CW Power per Port Watt 400 400 400
Gain Over All Tilts dBi 13.8 +/-0.5 13.8 +/-0.6 14.0 +/-0.6
Cross-Pol over Sector dB 9 5 4
F/B at +/-30 Total Power dB 18 18 20
Upper Side Lobe Peak to +20 dB 20 19 20

Electrical Specifications

Electrical Specification HeaderHigh Band Arrays (1695-2690 MHz) Ports 5-12
Frequency Band MHz 1695-1880 1850-1990 1920-2200 2200-2500 2500-2690
Gain dBi 17.5 18.0 18.9 18.7 18.5
Azimuth Beamwidth 3dB Deg 67 +/- 5 65 +/- 7 62 +/- 9 58 +/- 7 57 +/- 7
Elevation Beamwidth 3dB Deg 5.5 +/- .3 5.2 +/- .3 4.8 +/- .4 4.4 +/- .2 4.0 +/- .3
Cross-Pol at Boresight dB 23 22 18 19 21
F/B at 180 Copolar dB 31 30 30 30 29
Electrical Downtilt Deg 2-12 2-12 2-12 2-12 2-12
First Upper Side Lobe dB 15 17 17 17 17
VSWR - 1.5:1 1.5:1 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14 -14 -14
Cross Polar Isolation dB 25 25 25 25 25
3rd Order PIM 2 x 43dBm dBc -153 -153 -153 -153 -153
Maximum CW Power per Port Watt 250 250 250 250 250
Gain Over All Tilts dBi 16.4+/-0.8 17.3+/-0.7 18.1+/-0.8 17.2+/-1.1 16.8+/-0.9
Cross-Pol over Sector dB 6 5 4 1 2
F/B at +/-30 total Power dB 26 29 28 24 23
Upper Side Lobe Peak to +20 dB 14 16 15 15 11

Electrical Specifications

ImpedanceOhm50
PolarizationDeg+/- 45

Mechanical Specifications

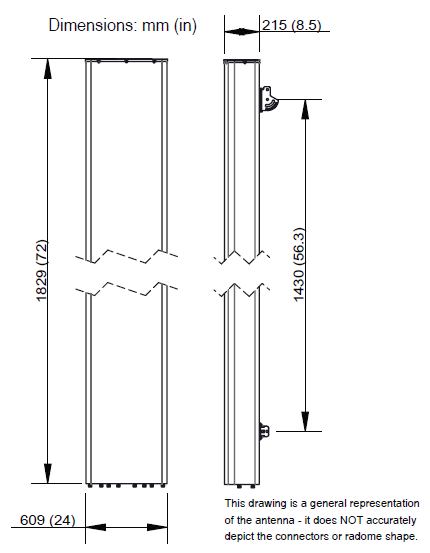

Dimensions - H x W x Dmm (in)1829 x 609 x 215 (72 x 24 x 8.5)
Weight (Antenna Only)kg (lb)48 (106)
Weight (Mounting Hardware only)kg (lb)11.5 (25.3)
Packing size- HxWxDmm (in)1980 x 735 x 375 (78 x 28.9 x 14.8)
Shipping Weightkg (lb)69 (152)

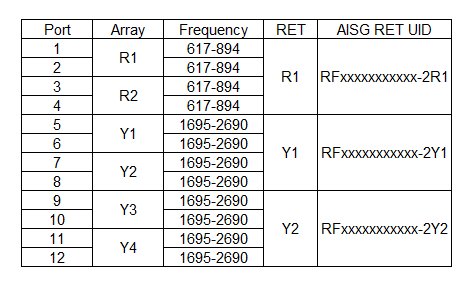

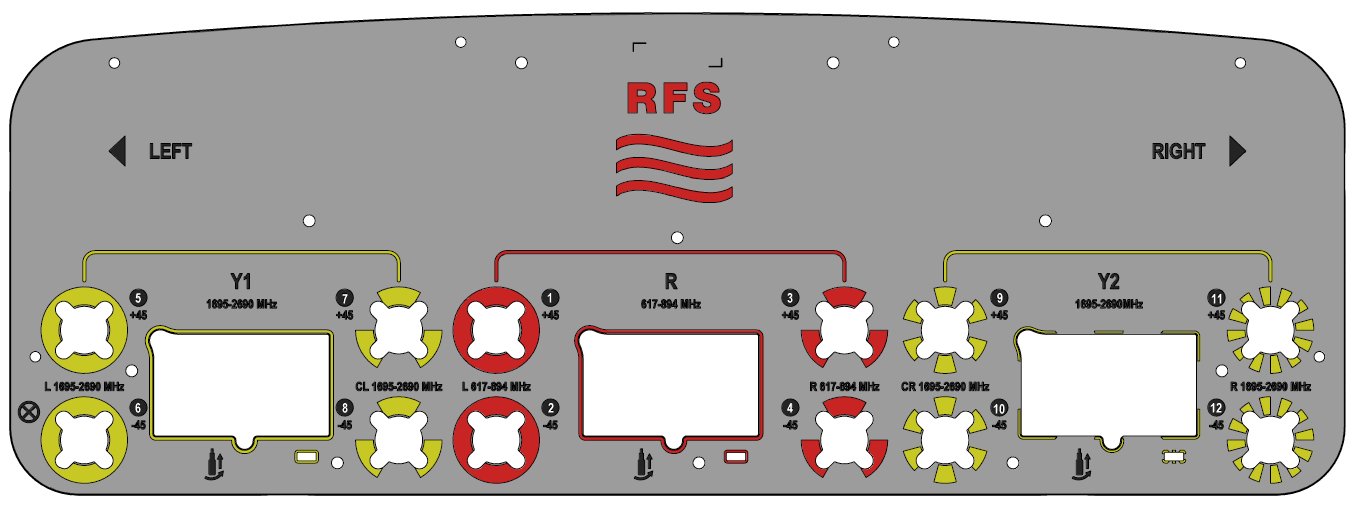

Connector type12 x 4.3-10 female at bottom + 6 AISG connectors (3 male, 3 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDC Grounded
Survival/Rated Wind Velocitykm/h240 (150 )
Wind Load @Rated Wind FrontN1072
Wind Load @Rated Wind SideN326
Wind Load @Rated Wind RearN1160
Survival wind Velocity km/h240

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVAA4L18_43-U-NA20 ACU-A20-SR Field Replace RET included (3) APM40-5E Beam tilt kit (included) 60-120mm 69 Kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • A one-meter AISG cable CA010-7 comes in the box, and for additional cable information please click ""External Document Links"".
  • For additional mounting information please click ""External Document Links"".
