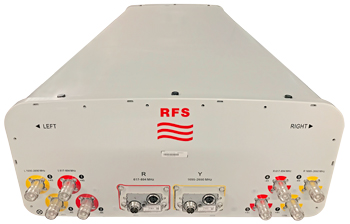

APXVAALL12N_43-U-NA20
8-Ports, X-Pol, Panel Antenna, 1.2m, 2x 617-894/2x 1695-2690 MHz 65deg, Integrated RET

Rev : C | Rev date : 27 Oct 2022

FEATURES / BENEFITS

Narrow 499 mm radome for reduced windloading and easier zoning

  • MIMO 4x4 in low-band and mid-band

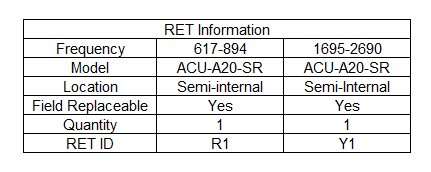

  • Integrated and field replaceable RET
  • ACU model number: x2 ACU-A20-SR, ACU HW 05
  • Compliant with AISG V2.0 and 3GPP
  • AISG jumper cable included
  • Mechanical down tilt kit included


Technical features

Electrical Specifications

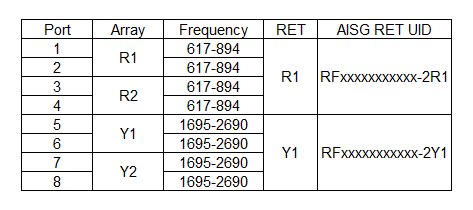

Electrical Specification HeaderLow Band Arrays (617-894 MHz) Ports 1-4
Frequency Band MHz 617-698 698-806 806-894
Gain dBi 13.0 13.9 14.3
Azimuth Beamwidth 3dB Deg 70 +/- 8 63 +/- 6 57 +/-6
Elevation Beamwidth 3dB Deg 19.1 +/- 0.8 17.4 +/- 1.3 15.2 +/- 1.0
Cross-Pol at Boresight dB 20 21 17
F/B at 180 Copolar dB 26 24 29
Electrical Downtilt Deg 2 to 18 2 to 18 2 to 18
First Upper Side Lobe dB 14 15 16
VSWR - 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14
Cross Polar Isolation dB 25 25 25
3rd Order PIM 2 x 43dBm dBc -153 -153 -153
Maximum CW Power per Port Watt 300 300 300
Gain Over All Tilts dBi 12.4 +/- .6 13.4 +/- .5 13.7 +/- .6
Cross-Pol Over Sector dB 8 7 6
F/B at +/-30 Total Power dB 18 20 21
Upper Side Lobe Peak to +20 dB 22 22 17

Electrical Specifications

Electrical Specification HeaderMid Band Arrays (1695-2690 MHz) Ports 5-8
Frequency Band MHz 1695-1880 1850-1990 1920-2200 2200-2690
Gain dBi 16.2 16.6 17.1 17.4
Azimuth Beamwidth 3dB Deg 69 +/- 8 64 +/- 8 61 +/- 5 57+/- 7
Elevation Beamwidth 3dB Deg 9.5 +/- 0.9 8.7 +/- 0.5 7.7 +/- 0.7 6.5 +/- 0.8
Cross-Pol at Boresight dB 15 21 17 19
F/B at 180 Copolar dB 29 28 29 27
Electrical Downtilt Deg 2 to 12 2 to 12 2 to 12 2 to 12
First Upper Side Lobe dB 19 19 16 17
VSWR - 1.5:1 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14 -14
Cross Polar Isolation dB 25 25 25 25
3rd Order PIM 2 x 43dBm dBc -153 -153 -153 -153
Maximum CW Power per Port Watt 250 250 250 250
Gain Over All Tilts dBi 15.2 +/- 1.0 15.9 +/- 0.7 16.3 +/- 0.8 16.7 +/- 0.7
Cross-Pol over Sector dB 5 6 5 3
F/B at +/-30 Total Power dB 23 22 23 21
Upper Side Lobe Peak to +20 dB 16 17 16 14

Electrical Specifications

ImpedanceOhm50
PolarizationDeg+/- 45

Mechanical Specifications

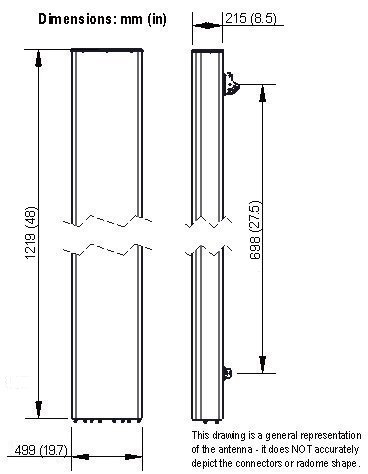

Dimensions - H x W x Dmm (in)1219 x 499 x 215 (48 x 19.7 x 8.5)
Weight (Antenna Only)kg (lb)22 (49)
Weight (Mounting Hardware only)kg (lb)4.5 (10)
Packing size- HxWxDmm (in)1430 x 560 x 265 (56.3 x 22 x 10.4)
Shipping Weightkg (lb)30 (66)

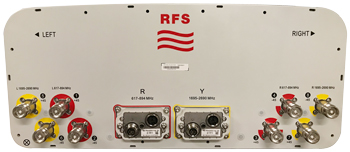

Connector type8 x 4.3-10 female at bottom
Radome Material / ColorASA / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground

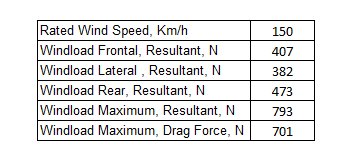

Survival/Rated Wind Velocitykm/h240 (150 )

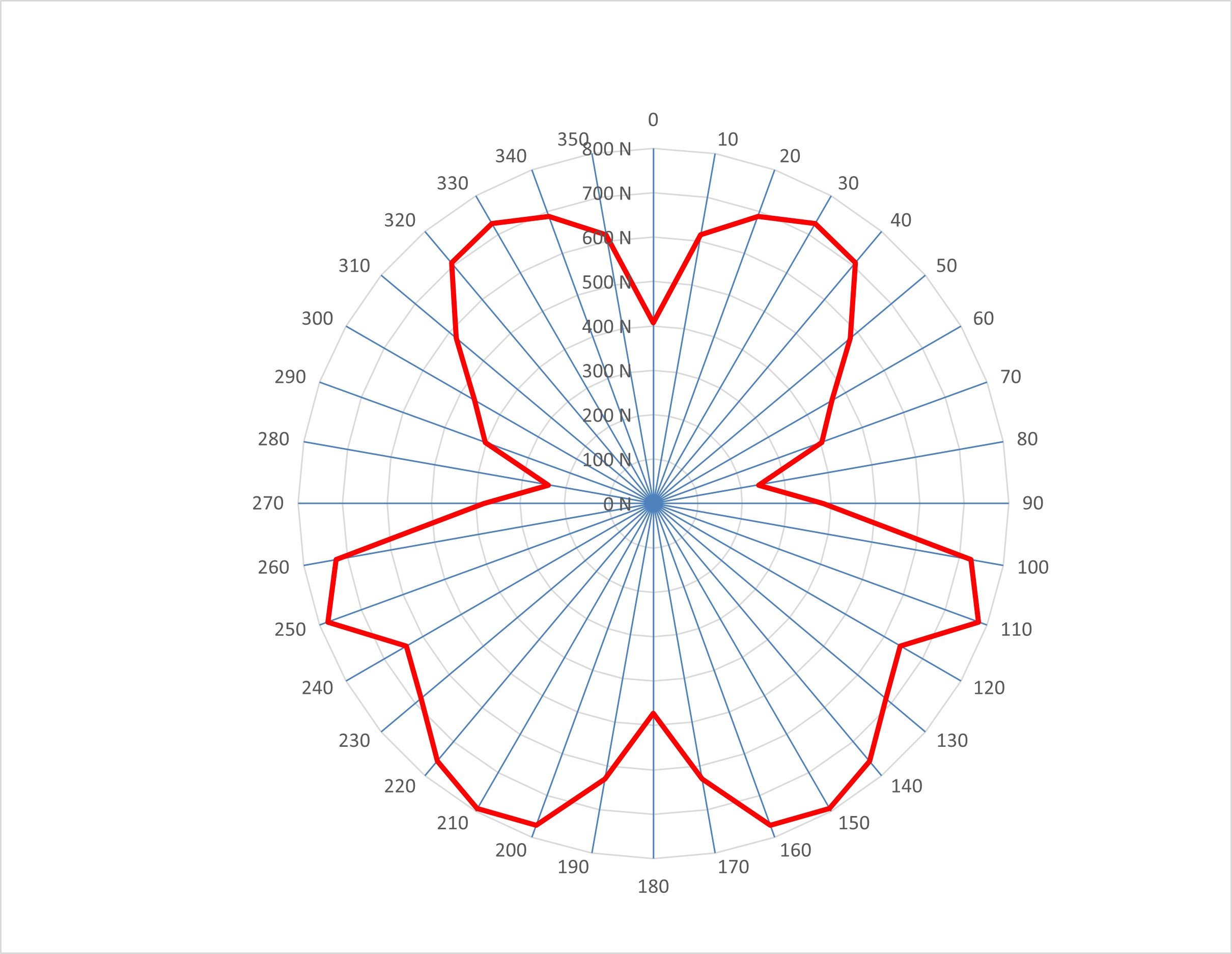

Wind Load @Rated Wind FrontN407
Wind Load @Rated Wind SideN382
Wind Load @Rated Wind RearN473
Survival wind Velocity km/h240

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVAALL12N_43-U-NA20 ACU-A20-SR Field Replace RET included (2) APM40-2 Beam tilt kit & APM40-E10 (included) 60-120mm 30 Kg (66 lb)

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
