APXVAALL12_43-U-NA20
8-Ports, X-Pol, Panel Antenna, 1.2m, 2x 617-960/2x 1695-2690 MHz 65deg, Integrated RET

Rev : G | Rev date : 18 Jul 2022

FEATURES / BENEFITS

  • MIMO 4x4 in low-band and mid-band

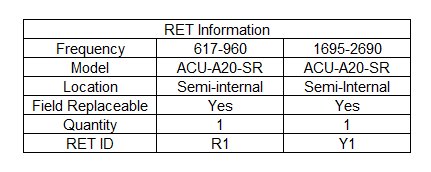

  • Integrated and fieldreplaceable RET
  • ACU model number: x2 ACU-A20-SR, ACU HW 05
  • Compliant with AISG V2.0 and 3GPP
  • AISG jumper cable included
  • Mechanical down tilt kit included


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Arrays (617-960 MHz) Ports 1-4
Frequency Band MHz 617-698 698-806 806-894 880-960
Gain dBi 12.9 14.0 14.2 15.2
Azimuth Beamwidth 3dB Deg 68 +/- 5 62 +/- 6 58 +/-6 53 +/-8
Elevation Beamwidth 3dB Deg 19.7 +/- 1.5 16.9 +/- 1.0 15.1 +/- 1.5 13.5 +/- .5
Cross-Pol at Boresight dB 20 21 23 26
F/B at 180 Copolar dB 24 26 27 29
Electrical Downtilt Deg 2 to 18 2 to 18 2 to 18 2 to 18
First Upper Side Lobe dB 14 18 16 14
VSWR - 1.5:1 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14 -14
Cross Polar Isolation dB 25 25 25 25
3rd Order PIM 2 x 43dBm dBc -153 -153 -153 -153
Maximum CW Power per Port Watt 400 400 400 400
Gain Over All Tilts dBi 12.4 +/- .5 13.5 +/- .5 13.7 +/- .5 13.9 +/- 1.3
Cross-Pol Over Sector dB 9 6 2 1
F/B at +/-30 Total Power dB 17 19 19 19
Upper Side Lobe Peak to +20 dB 22 22 17 14

Electrical Specifications

Electrical Specification HeaderMid Band Arrays (1695-2690 MHz) Ports 5-8
Frequency Band MHz 1695-1880 1850-1990 1920-2200 2300-2500 2500-2690
Gain dBi 15.6 15.9 16.3 16.0 17.0
Azimuth Beamwidth 3dB Deg 69 +/- 4 67 +/- 3 67 +/- 4 64+/- 6 60 +/- 7
Elevation Beamwidth 3dB Deg 10.3 +/- .5 10.0 +/- 1 9.0 +/- 1 8.0 +/- 1 7.2 +/- .5
Cross-Pol at Boresight dB 19 21 22 22 22
F/B at 180 Copolar dB 32 33 33 29 28
Electrical Downtilt Deg 2 to 12 2 to 12 2 to 12 2 to 12 2 to 12
First Upper Side Lobe dB 19 20 18 15 15
VSWR - 1.5:1 1.5:1 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14 -14 -14
Cross Polar Isolation dB 25 25 25 25 25
3rd Order PIM 2 x 43dBm dBc -153 -153 -153 -153 -153
Maximum CW Power per Port Watt 300 300 300 300 300
Gain Over All Tilts dBi 15.1 +/- .5 15.4 +/- .5 15.8 +/- .5 15.5 +/- .5 16.0 +/- 1.0
Cross-Pol over Sector dB 9 8 6 1 1
F/B at +/-30 Total Power dB 25 25 26 22 22
Upper Side Lobe Peak to +20 dB 16 16 17 15 14

Electrical Specifications

ImpedanceOhm50
PolarizationDeg+/- 45

Mechanical Specifications

Dimensions - H x W x Dmm (in)1219 x 609 x 215 (48 x 24 x 8.5)
Weight (Antenna Only)kg (lb)27 (60)
Weight (Mounting Hardware only)kg (lb)4.5 (10)
Packing size- HxWxDmm (in)1420 x 714 x 265 (55.9 x 28.1 x 10.4)
Shipping Weightkg (lb)37 (82)

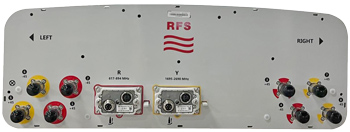

Connector type8 x 4.3-10 female at bottom
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h240 (150 )
Wind Load @Rated Wind FrontN714
Wind Load @Rated Wind SideN217
Wind Load @Rated Wind RearN772
Survival wind Velocity km/h240

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVAALL12_43-U-NA20 ACU-A20-SR Field Replace RET included (2) APM40-2 Beam tilt kit (included) APM40-E10 Interface (included) 60-120mm 37 Kg (82 lbs)

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
