APXVAALL18N_43-U-NA20
8-Ports, X-Pol, Panel Antenna, 1.8m, 2x 617-894/2x 1695-2690 MHz 65deg, Integrated RET

Rev : C | Rev date : 23 Sep 2022

FEATURES / BENEFITS

Narrow 499 mm radome for reduced windloading and easier zoning

  • MIMO 4x4 in low-band and mid-band
  • Integrated and field replaceable RET
  • ACU model number: x2 ACU-A20-SR, ACU HW 05
  • Compliant with AISG V2.0 and 3GPP
  • AISG jumper cable included
  • Mechanical down tilt kit included


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Arrays (617-894 MHz) Ports 1-4
Frequency Band MHz 617-698 698-806 806-894
Gain dBi 14.3 15.1 15.5
Azimuth Beamwidth 3dB Deg 69 +/-6 63 +/-6 57 +/-7
Elevation Beamwidth 3dB Deg 14.6 +/-.7 13.2 +/-1 11.6 +/-.7
Cross-Pol at Boresight dB 17 19 17
F/B at 180 Copolar dB 29 27 31
Electrical Downtilt Deg 2 to 12 2 to 12 2 to 12
First Upper Side Lobe dB 18 20 20
VSWR - 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14
Cross Polar Isolation dB 25 25 25
3rd Order PIM 2 x 43dBm dBc -153 -153 -153
Maximum CW Power per Port Watt 300 300 300
Gain Over All Tilts dBi 13.4 +/- .9 14.7 +/- .4 14.9 +/- .6
Cross-Pol over Sector dB 7 7 5
F/B at +/-30 Total Power dB 20 20 22
Upper Side Lobe Peak to +20 dB 20 21 19

Electrical Specifications

Electrical Specification HeaderMid Band Arrays (1695-2690 MHz) Ports 5-8
Frequency Band MHz 1695-1880 1850-1990 1920-2200 2200-2690
Gain dBi 17.9 17.9 18.7 18.6
Azimuth Beamwidth 3dB Deg 69 +/-7 62 +/-9 58 +/-4 54 +/-7
Elevation Beamwidth 3dB Deg 5.7 +/- .3 5.3 +/-.3 4.8 +/-.5 4.2 +/-.4
Cross-Pol at Boresight dB 17 20 15 20
F/B at 180 Copolar dB 29 28 30 29
Electrical Downtilt Deg 2 to 12 2 to 12 2 to 12 2 to 12
First Upper Side Lobe dB 18 19 17 18
VSWR - 1.5:1 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14 -14
Cross Polar Isolation dB 25 25 25 25
3rd Order PIM 2 x 43dBm dBc -153 -153 -153 -153
Maximum CW Power per Port Watt 250 250 250 250
Gain Over All Tilts dBi 17.0 +/- .9 17.4 +/- .5 18.0 +/- .7 17.9 +/- .7
Cross-Pol over Sector dB 8 9 7 4
F/B at +/-30 Total Power dB 23 23 23 23
Upper Side Lobe Peak to +20 dB 13 14 14 14

Electrical Specifications

ImpedanceOhm50
PolarizationDeg+/- 45

Mechanical Specifications

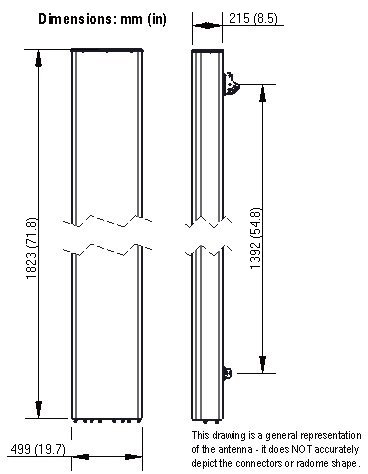

Dimensions - H x W x Dmm (in)1823 x 499 x 215 (71.8 x 19.7 x 8.5)
Weight (Antenna Only)kg (lb)28.3 (62.4)
Weight (Mounting Hardware only)kg (lb)8.8 (19.4)
Packing size- HxWxDmm (in)2030 x 560 x 285 (79.9 x 22 x 11.2)
Shipping Weightkg (lb)37 (81.6)
Connector type8 x 4.3-10 female at bottom
Radome Material / ColorASA / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h240 (150 )

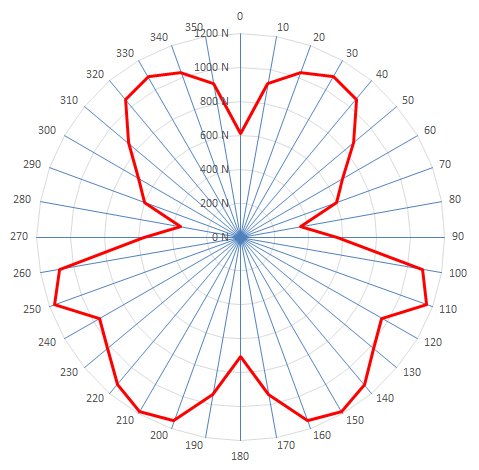

Wind Load @Rated Wind FrontN609
Wind Load @Rated Wind SideN572
Wind Load @Rated Wind RearN707
Survival wind Velocity km/h240

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVAALL18N_43-U-NA20 ACU-A20-SR Field Replace RET included (2) APM40-5E Beam tilt kit & APM40-E10T (included) 60-120mm 37 kg (81.6 lb)

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
