APXVAALL24_43-U-NA20
Dual Slant Polarized Quad Band (8 Port) Antenna, x2 617-894 / x2 1695-2690MHz, 65deg, 2.4m (8ft), RET, 2-12°

FEATURES / BENEFITS

This antenna provides an 8 Port multi-band platform for flexible use in deployment scenarios encompassing 600, 700, 800, AWS, PCS & BRS applications.

  • 24 Inch Width For Easier Zoning
  • Field Replaceable (Integrated) AISG RET platform for reduced environmental exposure and long lasting quality
  • Superior elevation pattern performance across the entire electrical down tilt range
  • Includes two ACU-A20-SR AISG RET motors
  • Low band arrays driven by a single RET motor
  • Mid band arrays driven by a single RET motor


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Arrays (617-894 MHz) Ports 1-4
Frequency Band MHz 617-698 698-806 806-894
Gain dBi 15.8 16.0 16.1
Azimuth Beamwidth 3dB Deg 65 +/-2 64 +/-2 62 +/-5
Elevation Beamwidth 3dB Deg 9.9 +/-1 8.6 +/-.8 7.5 +/-.5
Cross-Pol at Boresight dB 17 19 17
F/B at 180 Copolar dB 30 30 32
Electrical Downtilt Deg 2 to 12 2 to 12 2 to 12
First Upper Side Lobe dB 16 16 14
VSWR - 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14
Cross Polar Isolation dB 25 25 25
3rd Order PIM 2 x 43dBm dBc -153 -153 -153
Maximum CW Power per Port Watt 400 400 400
Gain Over All Tilts dBi 15.2 +/- .6 15.5 +/- .5 15.7 +/- .4
Cross-Pol over Sector dB 4 4 6
F/B at +/-30 Total Power dB 17 19 23
Upper Side Lobe Peak to +20 dB 16 16 14

Electrical Specifications

Electrical Specification HeaderMid Band Arrays (1695-2690 MHz) Ports 5-8
Frequency Band MHz 1695-1780 1850-1990 1995-2200 2200-2690
Gain dBi 18.2 18.7 19.1 18.7
Azimuth Beamwidth 3dB Deg 67 +/-5 65 +/-4 66 +/-8 61 +/-6
Elevation Beamwidth 3dB Deg 6.0 +/- .2 5.0 +/-.5 4.5 +/-.3 4.0 +/-.3
Cross-Pol at Boresight dB 22 18 14 18
F/B at 180 Copolar dB 31 30 29 27
Electrical Downtilt Deg 2 to 12 2 to 12 2 to 12 2 to 12
First Upper Side Lobe dB 15 15 15 14
VSWR - 1.5:1 1.5:1 1.5:1 1.5:1
Return Loss dB -14 -14 -14 -14
Cross Polar Isolation dB 25 25 25 25
3rd Order PIM 2 x 43dBm dBc -153 -153 -153 -153
Maximum CW Power per Port Watt 300 300 300 300
Gain Over All Tilts dBi 17.5 +/- .6 17.9 +/- .6 18.5 +/- .5 17.8 +/- .6
Cross-Pol over Sector dB 8 8 8 2
F/B at +/-30 Total Power dB 25 23 22 19
Upper Side Lobe Peak to +20 dB 14 14 14 13

Electrical Specifications

ImpedanceOhm50
PolarizationDeg+/- 45

Mechanical Specifications

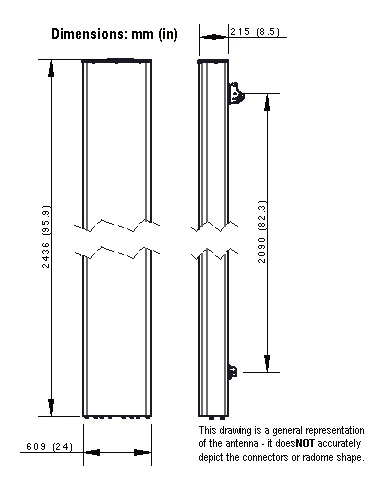

Dimensions - H x W x Dmm (in)2436 x 609 x 215 (96 x 24 x 8.5)
Weight (Antenna Only)kg (lb)56 (123)
Weight (Mounting Hardware only)kg (lb)11.5 (25.3)
Shipping Weightkg (lb)78 (172)
Connector type8 x 4.3-10 female at bottom
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h240 (150 )
Wind Load @Rated Wind FrontN1428
Wind Load @Rated Wind SideN434
Wind Load @Rated Wind RearN1476
Survival wind Velocity km/h240

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVAALL24_43-U-NA20 ACU-A20-SR Field Replace RET included (2) APM40-5E Beam tilt kit (included) 60-120mm 78 Kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
