APXVBB26H2_43-C-I20
4-Ports, X-Pol, Panel Antenna, 2.5m, 2x 698-960MHz, 65deg, Integrated RET

FEATURES / BENEFITS

  • 4 ports / 2 cross pol system in low band (698-960MHz)

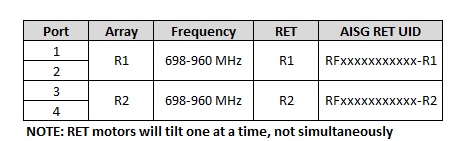

  • Integrated and field replaceable SRET
  • ACU HW Version: HRLS170901H1.00
  • Compliant with AISG V2.0 and 3GPP

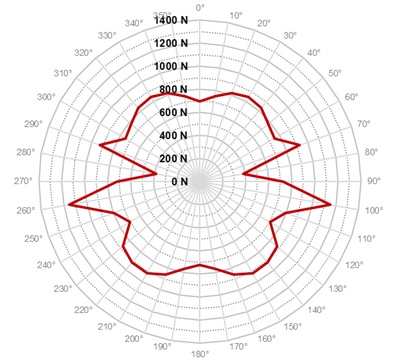

  • Optimized radome for low windload:
    • maximum windload, drag force: 658 N
    • maximum windload, resultant: 1065 N


Technical features

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R1]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 16 16.4 16.1
Gain Over all Tilts dBi 15.5 +/- 0.5 15.9 +/- 0.5 16 +/- 0.1
Azimuth Beamwidth 3dB Deg 66.3 +/- 3.5 64.6 +/- 3.5 64.7 +/- 4.7
Elevation Beamwidth 3dB Deg 8.7 +/- 0.5 7.9 +/- 0.5 7 +/- 0.1
Cross Polar Discrimination at Boresight dB 19 20 23
Cross Polar Discrimination over Sector dB 13 10 9
F/B at +/-30deg Total Power dB 23 22 22
First Upper Side Lobe Suppression dB 17 19 22
Electrical Downtilt Deg 0 to 10
Cross Polar Isolation dB 27
Interband Isolation dB 27
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

Electrical Specification HeaderLow Band Array (698-960 MHz) [R2]
Frequency Band MHz 698-806 790-894 880-960
Gain Typical dBi 16.1 16.1 16.8
Gain Over all Tilts dBi 15.6 +/- 0.5 16 +/- 0.1 16.3 +/- 0.5
Azimuth Beamwidth 3dB Deg 66.6 +/- 3.5 64.3 +/- 3.8 64.9 +/- 4
Elevation Beamwidth 3dB Deg 8.7 +/- 0.5 7.9 +/- 0.5 7.1 +/- 0.1
Cross Polar Discrimination at Boresight dB 22.7 22 27
Cross Polar Discrimination over Sector dB 15 10 9
F/B at +/-30deg Total Power dB 23 22 22
First Upper Side Lobe Suppression dB 17 19.3 22
Electrical Downtilt Deg 0 to 10
Cross Polar Isolation dB 27
Interband Isolation dB 27
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

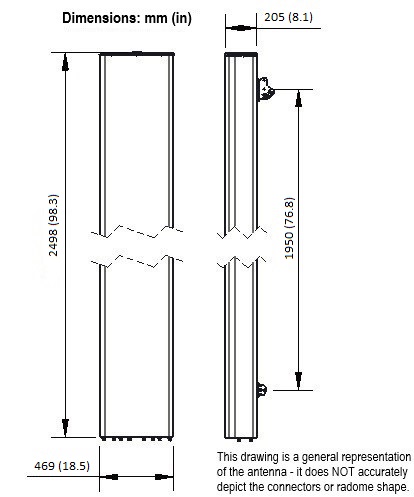

Dimensions - H x W x Dmm (in)2498 x 469 x 205 (98.4 x 18.5 x 8.1)
Weight (Antenna Only)kg (lb)32 (70.5)
Weight (Mounting Hardware only)kg (lb)9 (19.8)
Packing size- HxWxDmm (in)2698 x 564 x 325 (106.2 x 22.2 x 12.8)
Shipping Weightkg (lb)39.5 (87.1)
Connector type4 x 4.3-10 Female at bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiberglass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground

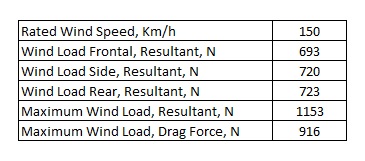

Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN531
Wind Load @Rated Wind SideN566
Wind Load @Rated Wind RearN553
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVBB26H2_43-C-I20 Internal RET(ACU-I20-H12A) APM50-HS 50 - 125mm 39 kg

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click"External Document Links".
