APXVBBLL15H_43-C-I20
X-Pol (8-ports) Antenna, 1.5m, 690-960/690-960/1695-2690/1695-2690MHz, 65deg,14.9/15.0/18.8/18.9dBi, 2-12°/2-12°/2-12°/2-12°, Integrated RET

FEATURES / BENEFITS


  • 4 ports / 2 cross pol systems in low band (694-960MHz)
  • 4 ports / 2 cross pol systems in high band (1695-2690MHz)
  • Supports 4x4 MIMO in low band and high band
  • Integrated and field replaceable SRET
  • ACU HW Version -HRLS170901H1.00 / SW Version -SRLS190802V1.22
  • Compliant with AISG V2.0 and 3GPP


Technical features

Electrical Specifications - 01

Electrical Specification Header 1LOW BAND ARRAY (690-960 MHZ) [R1]
Frequency Band MHz 690 - 806 790 - 894 880 - 960
Gain Typical dBi 14.4 14.6 14.9
Gain Over all Tilts dBi 13.7 +/- 0.7 14.3 +/- 0.3 14.5 +/- 0.4
Azimuth Beamwidth 3dB Deg 62.4 +/- 6.3 57.9 +/- 2.6 57.9 +/- 5.8
Elevation Beamwidth 3dB Deg 15.3 +/- 1.3 13.8 +/- 0.6 12.5 +/- 0.8
Cross Polar Discrimination at Boresight dB 19.7 23.6 24.2
Cross Polar Discrimination over Sector dB 12.4 11 10.6
F/B at +/-30deg Total Power dB 20.2 22.5 21.8
First Upper Side Lobe Suppression dB 15.2 18.4 18.5
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 25
Interband Isolation dB > 25(R1//R2), > 28(R1//Y1,Y2)
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications - 02

Electrical Specification Header 2LOW BAND ARRAY (690-960 MHZ) [R2]
Frequency Band MHz 690 - 806 790 - 894 880 - 960
Gain Typical dBi 14.5 14.6 15
Gain Over all Tilts dBi 13.7 +/- 0.8 14.3 +/- 0.3 14.6 +/- 0.4
Azimuth Beamwidth 3dB Deg 61.1 +/- 6.1 55.6 +/- 3.9 53.8 +/- 3.4
Elevation Beamwidth 3dB Deg 15 +/- 1.2 13.6 +/- 0.7 12.3 +/- 0.7
Cross Polar Discrimination at Boresight dB 20 25.2 22.8
Cross Polar Discrimination over Sector dB 12.5 10.8 10.7
F/B at +/-30deg Total Power dB 21.7 22.3 23.1
First Upper Side Lobe Suppression dB 14 16.7 16.6
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 25
Interband Isolation dB > 25(R1//R2), > 28(R1//Y1,Y2)
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications - 04

Electrical Specification Header 4High Band Array (1695-2690 MHz) [Y1]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.9 17.1 18.8 18.6 18
Gain Over all Tilts dBi 16.3 +/- 0.6 16.8 +/- 0.3 17.9 +/- 0.9 18 +/- 0.6 17.7 +/- 0.3
Azimuth Beamwidth 3dB Deg 70.4 +/- 6.5 67.3 +/- 5.1 61.6 +/- 7.5 51.8 +/- 2.9 58.4 +/- 4.5
Elevation Beamwidth 3dB Deg 7.5 +/- 0.6 6.9 +/- 0.5 5.9 +/- 0.4 5.4 +/- 0.2 4.9 +/- 0.2
Cross Polar Discrimination at Boresight dB 20.4 20.9 19.1 17.9 17.1
Cross Polar Discrimination over Sector dB 2.9 6.8 5.2 1.7 0.6
F/B at +/-30deg Total Power dB 24 23.4 24.6 24.3 24.3
First Upper Side Lobe Suppression dB 17.9 18.1 18.1 14 16.3
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications - 05

Electrical Specification Header 5High Band Array (1695-2690 MHz) [Y2]
Frequency Band MHz 1695 - 1880 1850 - 1990 1920 - 2170 2300 - 2400 2490 - 2690
Gain Typical dBi 16.8 17.1 18.9 18.5 18
Gain Over all Tilts dBi 16.2 +/- 0.6 16.7 +/- 0.4 17.9 +/- 1 17.9 +/- 0.6 17.6 +/- 0.4
Azimuth Beamwidth 3dB Deg 70.9 +/- 7.2 68.2 +/- 4.5 61.3 +/- 9.1 52.7 +/- 3.6 59.4 +/- 4.2
Elevation Beamwidth 3dB Deg 7.4 +/- 0.5 6.9 +/- 0.4 5.9 +/- 0.4 5.4 +/- 0.2 4.9 +/- 0.3
Cross Polar Discrimination at Boresight dB 19.9 20.6 19.7 19.5 17
Cross Polar Discrimination over Sector dB 2.3 6.3 5.1 2 0.7
F/B at +/-30deg Total Power dB 23.9 23.8 24.4 25.3 24.3
First Upper Side Lobe Suppression dB 17.7 17.3 16.7 15.1 16.5
Electrical Downtilt Deg 2 to 12
Cross Polar Isolation dB 26
Interband Isolation dB 28
VSWR - 1.5
Passive Intermodulation (3rd Order, 2 x 43dBm) dBc -153
Maximum Effective Power per Port Watt 250

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

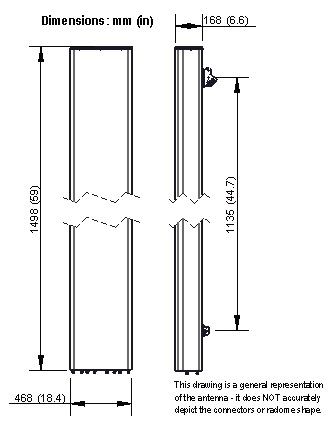

Dimensions - H x W x Dmm (in)1498 x 468 x 168 (59 x 18.4 x 6.6)
Weight (Antenna Only)kg (lb)24.5 (54)
Weight (Mounting Hardware only)kg (lb)4.5 (9.9)
Packing size- HxWxDmm (in)1698 x 563 x 288 (66.9 x 22.2 x 11.3)
Shipping Weightkg (lb)32 (70.5)
Connector type8 x 4.3-10 female/bottom + 2 AISG connectors (1 male, 1 female)
Radome Material / ColorFiber Glass / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h200 (150 )
Wind Load @Rated Wind FrontN717
Wind Load @Rated Wind SideN179
Wind Load @Rated Wind RearN912
Survival wind Velocity km/h200

Ordering Information

Order No. Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
APXVBBLL15H_43-C-I20 Internal RET(ACU-I20-HB) APM50-H2 50-125mm 32.0 Kg

Internal Component 1

Temperature Range °C(°F)-40 to 60 (-40 to 140 )
Lightning ProtectionDirect Ground
Application StandardWireless Communication

Internal Component 2

Temperature Range °C(°F)-40 to 60 (-40 to 140 )
Lightning ProtectionDirect Ground
Application StandardWireless Communication

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
