ASCA-C08-xxxxA

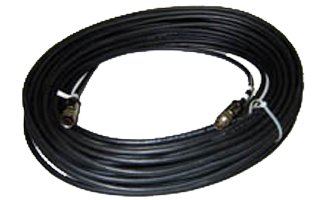

AISG System Cable Assembly, 0.3-100m
Rev : A | Rev date : 04 Feb 2025
Outdoor signal cable for AISG connection between the Antenna Control Unit (RET) and the
Remote Radio Unit (RRU). The cable is equipped with an AISG standard male connector and female connector.
FEATURES / BENEFITS
- Outdoor signal cable
- AISG connection between tower mounted amplifier antenna control unit
- AISG connection between bias tee and control network interface.
- The cable length is 0.3-100 meters.
- The cable is equipped with AISG male – female connectors
Structure |
---|
Cable Type | | AISG Cable | Connector A | | 8-pin DIN Female IEC60130-9 | Connector B | | 8-pin DIN Male IEC60130-9 | Wire Gauge #1 | mm² (AWG) | 0.75 (19) | Wire Gauge #2 | mm² (AWG) | 0.25 (24) | Diameter over jacket | mm | 7.8 +/- 0.35 | Color | | Black |
|
General Specifications |
---|
Protocol | | AISG 2.0 |
|
Electrical Specification |
---|
Voltage rating | V | 250 |
|
Temperature Specifications |
---|
Operation Temperature | °C (°F) | -40 to 70 (-40 to 158 ) |
|
Testing and Environmental |
---|
Sealing class | | IP 67 | Relative Humidity | % | up to 100 | Corrosion Specification | | IEC 60068-2-11 | UV Resistance | | IEC 60068-2-5 | Climatic Specification | | IEC 60068-2-14 |
|
Model types |
---|
Model name | Unit | Weight [kg] | Length [m] | ASCA-C08-0030A | pc | 0.11 | 0.3 | ASCA-C08-0050A | pc | 0.13 | 0.5 | ASCA-C08-0100A | pc | 0.17 | 1 | ASCA-C08-0150A | pc | 0.22 | 1.5 | ASCA-C08-0200A | pc | 0.26 | 2 | ASCA-C08-0300A | pc | 0.35 | 3 | ASCA-C08-0400A | pc | 0.44 | 4 | ASCA-C08-0500A | pc | 0.53 | 5 | ASCA-C08-0600A | pc | 0.62 | 6 | ASCA-C08-0900A | pc | 0.89 | 9 | ASCA-C08-1000A | pc | 0.98 | 10 | ASCA-C08-1200A | pc | 1.19 | 12 | ASCA-C08-1500A | pc | 1.43 | 15 | ASCA-C08-2000A | pc | 1.88 | 20 | ASCA-C08-3000A | pc | 2.78 | 30 | ASCA-C08-4000A | pc | 3.68 | 40 | ASCA-C08-5000A | pc | 4.58 | 50 | ASCA-C08-6000A | pc | 5.48 | 60 | ASCA-C08-7000A | pc | 6.38 | 70 | ASCA-C08-8000A | pc | 7.28 | 80 | ASCA-C08-10000A | pc | 9.08 | 100 |
|

Connector layout
