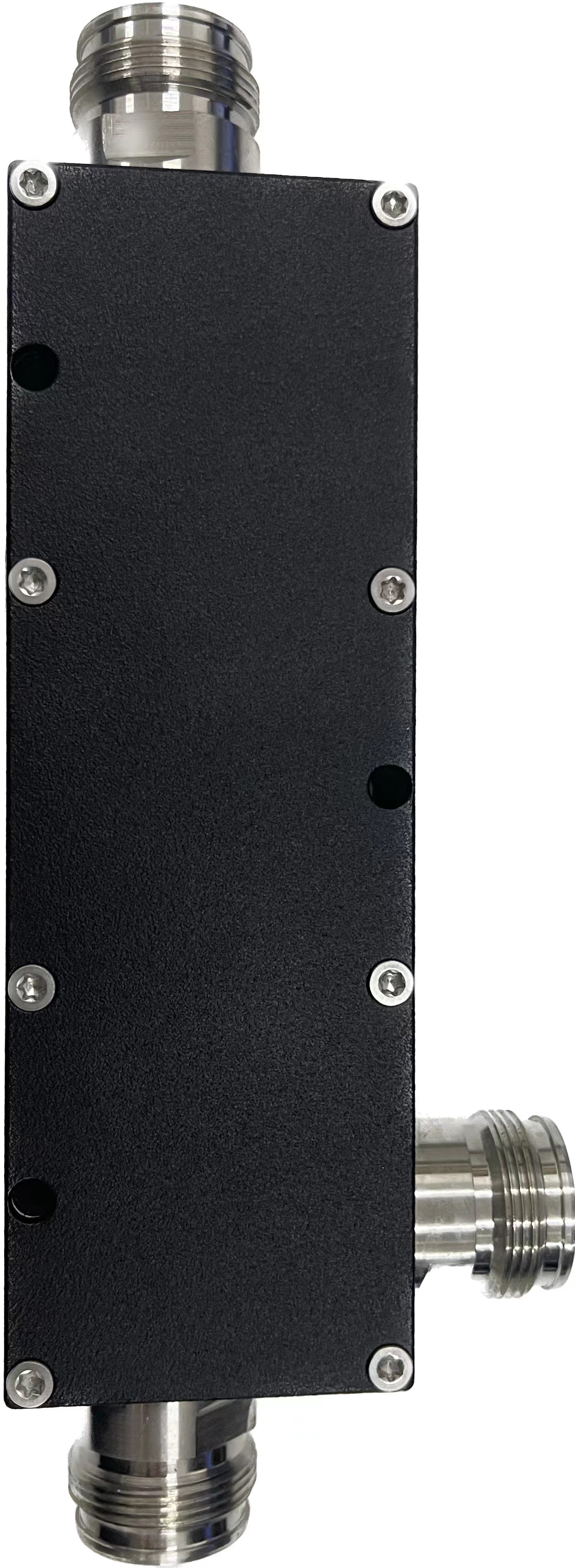

CDS15-43-617/3800-ECO
15dB Directional Coupler
Rev : A | Rev date : 19 Jun 2024
RFS CDS*-43-617/3800-ECO series Directional Couplers have been designed for a variety of wireless applications in the frequency band from 617 to 3800MHz. The unit couples off a defined fraction of a RF signal from 5 to 30 dB with minimal reflections or loss. The broad frequency range is ideally suited for multi-band distributed antenna systems or in combination with RADIAFLEX® radiating cables.
FEATURES / BENEFITS
- 4.3-10-female interfaces
- PIM optimized design (160dBc @2x43dBm)
- Low insertion loss
- High power handling
- Small size, Low weight
Structure |
|---|
| Product Type | | Directional Coupler | | Techn. Application | | Outdoor | | Number of Input Ports | | 1 | | Number of Output Ports | | 2 | | Connector Type | | 4.3-10 female |
|
Electrical Specifications |
|---|
| Frequency Range | MHz | 617 - 3800 | | Impedance | Ohm | 50 | | Insertion Loss max. | dB | 0.4 | | Max. VSWR / Return Loss | VSWR/dB | 1.30/17.7 (1.3) | | Intermodulation (IM3) | | -160dBc (2x43dBm) | | Coupling Value | dB | 15 | | Directivity min. | dB | 20 | | Coupling Flatness max. | dB | ±0.14 | | Total Input Power | W | 400 |
|
Temperature Specifications |
|---|
| Temperature Range | °C (°F) | -25 to +65 (-13 to +149) |
|

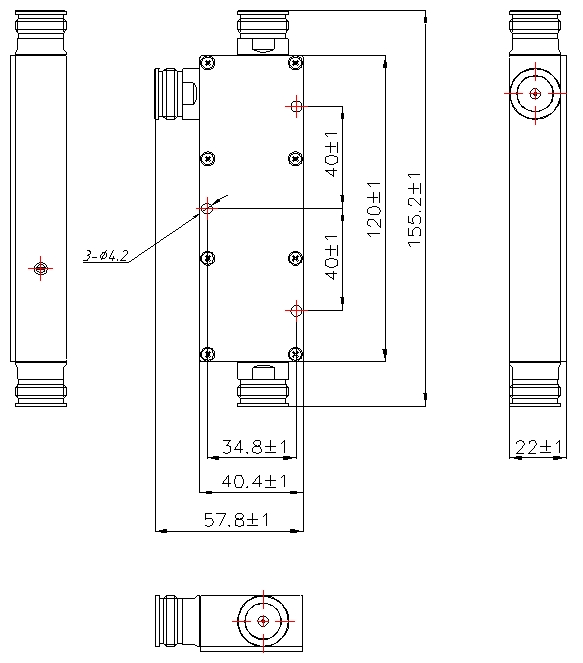

Mechanical Specifications |
|---|
| Height | mm (in) | 22 (0.866) | | Width | mm (in) | 40.4 (1.591) | | Length | mm (in) | 120 (4.724) | | Weight | kg (lb) | 0.33 (0.728) |
|
Testing and Environmental |
|---|
| Environmental Class | | IP65 |
|
