Universal connector grounding kit

Rev : C | Rev date : 17 Apr 2013

These universal connector grounding kit provides a reliable ground connection
to the connector body. Suitable for coaxial cable connectors from LCF 1/2" to 2-1/4" cable diameter.
Up to 2 grounding wires with 2.5 up to 25 mm2 cross section or
round conductor with max. diameter of 8mm can be connected.


  • Simple installation on site. No special tools required. All parts are loss proof pre-assembled.
  • All componends are made of stainless steel. Suitable for outdoor installation.
  • Compliant to RoHS (EU) and CRoHS (China). Usable on a global basis.


External Document Links


Technical features


Product LineCoaxial Cable Accessories
Type of Grounding KitUniversal connector grounding kit
Transmission Line TypeLCF12, LCF78, UCF78, LCFS114, LCF158, LCF214
Cable TypeCoaxial Foam Dielectric,
Ultraflexible Coaxial Foam Dielectric
Cable Size1/2", 7/8", 1-1/4", 1-5/8", 2-1/4"
Number of Cable / Waveguide Runs1
MaterialStainless Steel

Temperature Specifications

Installation Temperature °C (°F)-50 to 85 (-58 to 185 )
Operation Temperature °C (°F)-50 to 85 (-58 to 185 )
Storage Temperature °C (°F)-50 to 85 (-58 to 185 )

Packaging Information

Package Quantity1

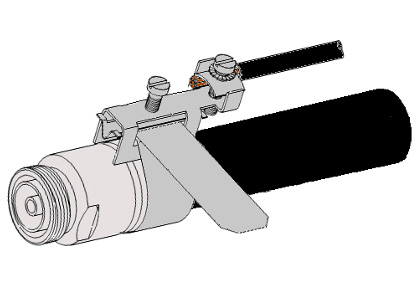

Instance of installation. The shown grounding wire is not included.
