COLD-101-BK
Cold shrink tube, 7-16 to Antenna; 4.3-10 to Antenna

Rev : A | Rev date : 22 Nov 2019
RFS cold shrink tubes provide a additional sealing of feeder and antenna connections.
Waterproof IPX8
The materials are selected for a long-term outdoor use.

FEATURES / BENEFITS

  • RFS offers a timesaving and easy way to secure a waterproof protection.
  • No tools are necessary for installation.
  • The shrinking process is done by simply unwinding a removable core.


External Document Links

Notes

Technical features

Structure

Product LineCoaxial Cable Accessories
Product TypeWeather Seal Kit
Coaxial Cable TypeFoam Dielectric

Mechanical Specifications

Mated to Cable Size and Interface
7-16 to Antenna and 4.3-10 to Antenna for cables until 1/2"
ColorBlack
Material
High elastic silicone rubber tube structure with mastic built-in, dual
layers design can bring double guarantee of weatherproofing protection
Sealing ClassIPX8

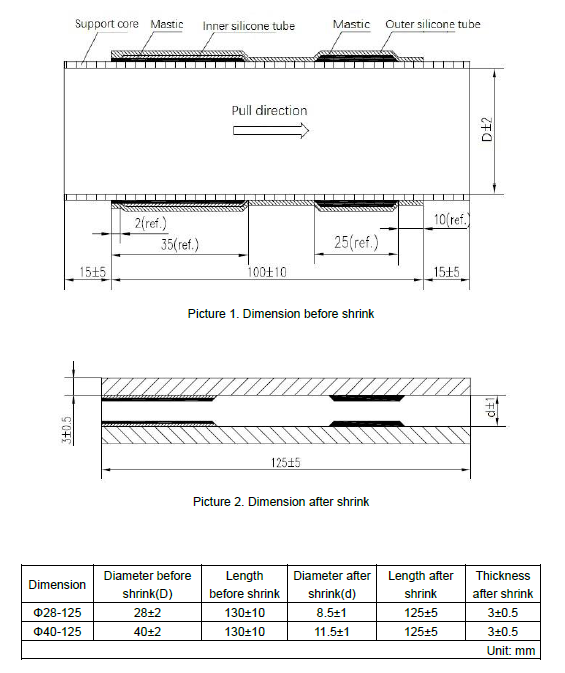

Length mm (in)140 (5.51)
Diameter mm (in)40 (1.57)

Temperature Specifications

Operation Temperature, °C°F)°C(°F)-50 to 100 (-58 to 212 )
Storage Temperature °C(°F)-50 to 100 (-58 to 212 )

Packaging Information

Package Quantity1
