DA8-65ACSQ1E
TrunkLine Antenna, High Performance, Single Polarized, 8 ft, High Wind High Ice Model

Rev : A | Rev date : 05 Apr 2012
RFS TrunkLine Antennas are designed for microwave backbone networks, long distance, high capacity links
A choice between tested and validated ultra-high (ETSI EN 302 217 Class 3 and FCC Class A) electrical performance or high (ETSI Class 2 and FCC Class B) performance
Sizes ranging from 1.8 m (6 ft) to 4.6 m (15 ft)
Single- and dual-polarized models with the ability to upgrade from single to dual polarization and change frequencies in the field in most cases

FEATURES / BENEFITS

  • Field-proven reliability and long life
  • Support for winds up to 200 km/h (125 mph) with high-wind versions that support winds up to 252 km/h (155 mph) and an optional sway bar for added assurance in case mistakes are made during installation
  • A single-piece configuration and compact packaging to reduce transportation costs
  • Frequencies ranging from 4 GHz to 15 GHz with support for two wideband frequency ranges (5.725-6.875 and 7.125-8.5 GHz) to reduce antenna requirements and simplify logistics
The design of this high wind high ice antenna model features :
  • a reinforced mounting structure
  • 3 sway bars, strategically located
  • a PVC coated radome optimized for areas with high wind and snow appearance
This specific design allow the antenna to survive in High Wind and High Ice climate and withstand :
  • a 250km/h (155mph) survival wind speed with 25mm (1 inch) of radial ice
  • a 225km/h (140mph) survival wind speed with 55mm (2 inches) of radial ice


Antenna with Extreme Radome

Technical features

General Specifications

Product TypePoint to point antennas
ProfileTrunkLine
PerformanceHigh
PolarizationSingle
Antenna InputCPR137G
Reflector1-part
Radomeflexible
Antenna colorWhite RAL 9010
Swaybar3: (3.0 m x Ø60 mm)

Electrical Specifications

Frequency GHz6.425 - 7.125
3dB beamwidthdegrees1.3
Low Band GaindBi41.9
Mid Band Gain dBi42.3
High Band Gain dBi42.8
F/B Ratio dB66
XPD dB30
Max VSWR / R LVSWR / dB1.06 (30.7)
Regulatory ComplianceETSI EN 302217 Range 1, class 2
FCC Category A

Mechanical Specifications

Diameter ft (m)8 (2.4)
Elevation Adjustment degrees± 5
Azimuth Adjustment degrees± 5
Polarization Adjustment degrees± 5
Mounting Pipe Diameter minimum mm (in)114 (4.5)
Mounting Pipe Diameter maximum mm (in)114 (4.5)
Approximate Weight kg (lb)180 (396)
Survival Windspeedkm/h (mph)252 (155)
Operational Windspeedkm/h (mph)190 (118)

Structure

Radome MaterialPVC coated fabric

Further Accessories

optional Swaybar3: (3.0 m x Ø60 mm)
Further AccessoriesSMA-SKO-UNIVERSAL-L : Universal swaybar fixation kit

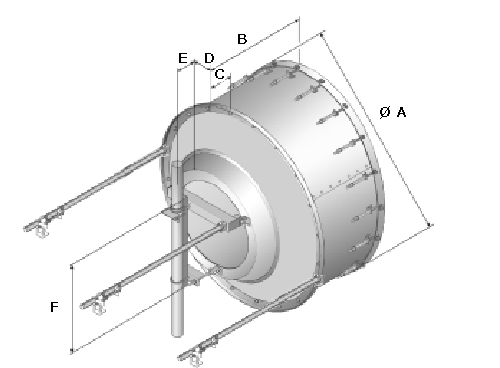

MountOutline

Dimension_Amm (in)2616 (103.4)
Dimension_Bmm (in)1450 (57.1)
Dimension_Cmm (in)460 (18.1)
Dim_D-114mm(4.5_in)Pipemm (in)190 (7.5)
Dimension_Emm (in)310 (12.3)
Dimension_Fmm (in)1120 (44.1)

WindLoad

Fs Side force max. @ survival wind speed N (lb)9222 (2222)
Fa Axial force max. @ survival wind speed N (lb)19344 (4333)
M Torque maximum @ survival wind speed Nm (ft lb)Nm (lb ft)9313 (6875)

Documentations

Notes

listed wind speeds are on "ASD" level
listed wind speeds are on "ASD" level
