DAX12-44AD5H

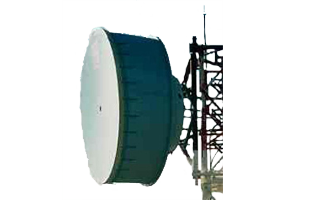

HarshAreasLine Antenna, High Performance, Dual Polarized, 12 ft

Rev : A | Rev date : 11 Apr 2017
Designed for: Marine environments, off-shore locations, industrial and highly corrosive locations, volcanic areas, tropical climates mountaintops with severe wind, ice and snow conditions.
Available in frequencies ranging from 3.6 to 26.5 GHz and sizes 0.6m (2ft) to 3.7m (12ft) as single or dual polarized models.

FEATURES / BENEFITS

  • Reflectors and shrouds painted in- and outside with 2-component epoxy paint
  • Feeds painted with a 2-component epoxy paint
  • Mounting hardware and attachment hardware in corrosion-resistant ISO 3506 A4 (SAE 316L) steel stabilized with molybdenum
  • Steel mounting with a extended galvanic layer
  • Screws, connectors apply additional silicon sealant during installation
  • A wind kit supports winds up to 252 km/h ( 155 mph)
  • Wind kits are factory installed for 1.8m (6 ft) and larger antennas
  • A single-piece reflector ensures best protection to antenna surfaces
  • A flexible radome that is designed to avoid snow accumulation for antennnas 1.2 m (4 ft) and larger


Antenna

Technical features

General Specifications

Product TypePoint to point antennas
ProfileHarshAreasLine
PerformanceHigh
PolarizationDual
Antenna InputPDR 48
Reflector1-part
Radomeflexible
Antenna colorWhite RAL 9010
Swaybar1: (3.0 m x Ø60 mm)

Electrical Specifications

Frequency GHz4.4 - 5
3dB beamwidthdegrees1.2
Low Band GaindBi41.7
Mid Band Gain dBi42.3
High Band Gain dBi42.8
F/B Ratio dB67
XPD dB30
IPI dB35
Max VSWR / R LVSWR / dB1.06 (30.7)
Regulatory ComplianceETSI EN 302217 Range 1, class 2

Mechanical Specifications

Diameter ft (m)12 (3.7)
Elevation Adjustment degrees± 5
Azimuth Adjustment degrees± 5
Polarization Adjustment degrees± 5
Mounting Pipe Diameter minimum mm (in)114 (4.5)
Mounting Pipe Diameter maximum mm (in)114 (4.5)
Approximate Weight kg (lb)420 (924)
Survival Windspeedkm/h (mph)252 (155)
Operational Windspeedkm/h (mph)190 (118)

Structure

Radome MaterialPVC coated fabric

Further Accessories

optional Swaybar1: SMA-SK-60-3000A (3.0 m x Ø60 mm)
Further AccessoriesSMA-SKO-UNIVERSAL-L : Universal sway bar fixation kit

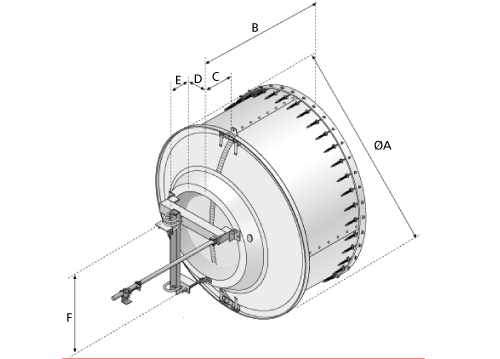

Mount Outline

Dimension_Amm (in)3800 (150)
Dimension_Bmm (in)1880 ()
Dimension_Cmm (in)670 (26.5)
Dim_D-114mm(4.5_in)Pipemm (in)190 (7.5)
Dimension_Emm (in)370 (14.57)
Dimension_Fmm (in)1580 (62.5)

WindLoad

Fs Side force max. @ survival wind speed N (lb)21422 (4798)
Fa Axial force max. @ survival wind speed N (lb)43234 (9688)
M Torque maximum @ survival wind speed Nm (ft lb)Nm (lb ft)26016 (19375)
