FDPAW3040S0-3C
ShareLiteTM 1850-1915/1930-1995 and 1695-1780/2110-2360 Diplexer with DC Pass on Port 2, Single, NEX10TM Connectors

Rev : P2 | Rev date : 24 Apr 2019
The ShareLite FDPAW family of diplexers enable feeder sharing between systems in the 1850-1915/1930-1995 MHz PCS spectrum for Path 1 and 1695-1780/2110-2360 MHz AWS/WCS spectrum for Path 2. The innovative design delivers very low insertion loss in an extremely small and lightweight envelope. Selective filters guarantee 30 dB of isolation between ports for an interference free deployment in any environment.  An IP67 housing design protects against the most severe outdoor installation with a vented enclosure to eliminate condensation and pressure instability.  The result is a long lasting solution with exceptional reliability.

FEATURES / BENEFITS

  • Exceptionally compact design, very small footprint
  • NEX10TM Connectors - smaller and lighter than standard 7/16 or 4.3-10 connectors
  • Single unit
  • Extremely low insertion loss
  • High power handling capability
  • Superb environmental protection (IP-67)


Technical features

General Specifications

Product TypeDiplexer, Cross Band Combiner
ApplicationPCS, AWS-1, AWS-3,, AWS-4(U), WCS
Configuration
ShareLite Diplexer, side by side, outdoor/indoor

Electrical Specifications

Branch1 , 2
Frequency Range MHz1850-1915 1930-1995 1695-1780 2110-2360
Impedance Ohms50, 50
Frequency BandPCS, AWS, WCS
DC PassPCS: No, AWS/WCS: Yes
Insertion Loss dB0.4 typ, 0.2 typ
Return Loss dB20 Min, 20 Min
Power Handling Continuous, Max.W160, 160
Rejection between bands dB35, 30
3rd Order PIM dBm (dBc)-118 (-158) @ 2 x 43, -118 (-158) @ 2 x 43

Testing and Environmental

Temperature Range °C (°F)-40 to 65 (-40 to 149 )
Ingress ProtectionIP 67
EnvironmentalETSI 300-019 2-4 Class 4.1E
Lightning ProtectionIEC61000-4-5 Level 4 / 5kA, 8/20 uS

Mechanical Specifications

RF ConnectorsNEX10, 2 Port In, 1 Port Out
Shipping Weight kg (lb)0.4 (0.9)

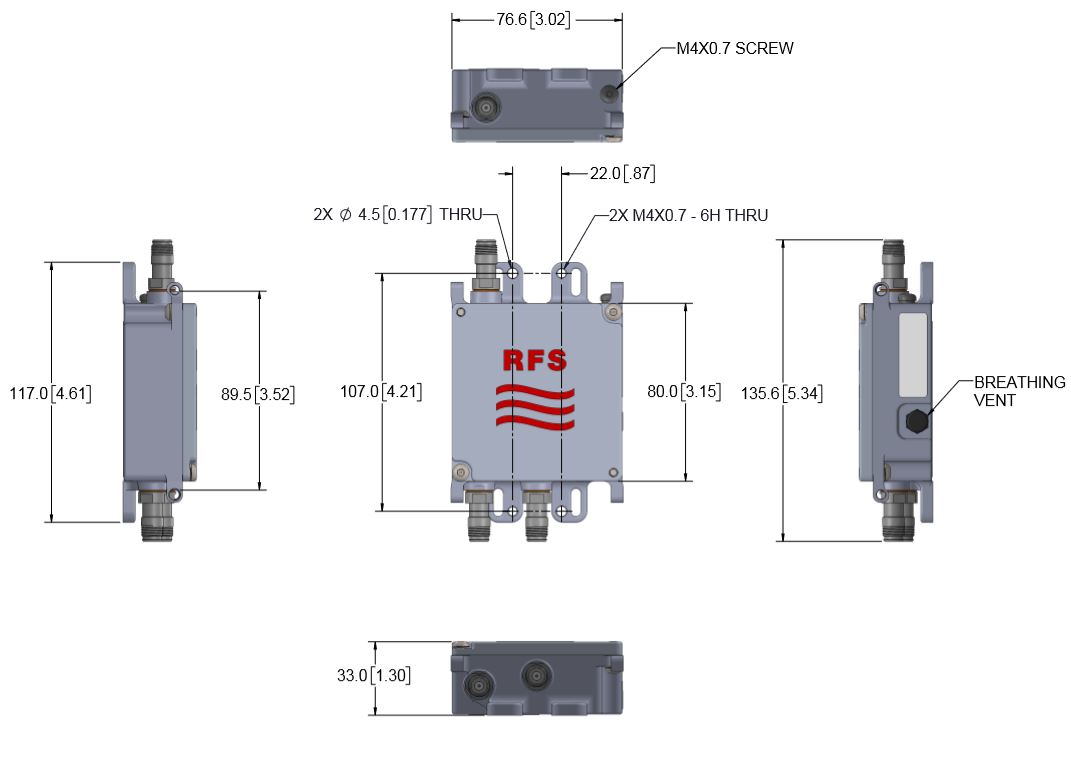

Dimensions, H x W x D mm (in)76 x 80 x 33 (3 x 3.1 x 1.3)
Shipping Dimensions, H x W x D mm (in)76 x 80 x 33 (3 x 3.1 x 1.3)
Volume L0.2
Mounting
Wall Mounting: with 4 screws (maximum 4 mm diameter)
Pole Mounting: with included clamp set 40-100 mm (1.6-4.3 inches)
HousingAluminum
