FDPL4020CD4-NC
ShareLiteTM PCS / AWS, WCS, BRS Diplexer, NO DC Pass (DC Ground), Dual Configuration, Stacked, 4.3-10 Connectors

Rev : C | Rev date : 24 Apr 2019
The FDPL Series of ShareLite diplexers are the smallest, most compact packaging of diplexers with the best performance available.  Designed for use in small cell applications, dual and quad configurations in stacked/clamshell or side by side are available with all the same performance.

These diplexers enable feeder sharing between systems in the PCS and AWS (AWS-1, AWS-3, and upper AWS-4), WCS, BRS, EBS and LTE2.6 frequency bands. The RFS innovative cavity filter design provides a very low insertion loss while keeping the product extremely compact and lightweight. The usage of highly selective filters also guarantees a high isolation level of 40dB between ports, ensuring an interference-free environment for any technology deployed. The filter design also has built-in lightning protection for additional reliability. Designed to withstand the most severe outdoor environments, it also features an IP67 class protection with a vented enclosure to aviod any possible effects of condensation and pressure instability, thus providing a long lasting, extremely reliable solution for any network.

FEATURES / BENEFITS

  • Designed for use with all USA mid band frequencies: PCS, AWS-1,-3, -4(U), WCS, BRS, and EBS
  • Dual Unit for use with Xpol Antennas
  • Low insertion loss - maximizes performance
  • High level of rejection between bands - Protects against interferences
  • Compact design - Eases installation and reduces tower loading
  • In-line connector placement - flexible installation positioning
  • 4.3-10 connectors - Reduce tower loading with connectors that are 40% smaller and lighter than 7/16 DIN connectors
  • IP67 Class protection - exceptional relaiability and environmental protection
  • No DC Pass (DC Ground)


Technical features

General Specifications

Product TypeDiplexer/Cross Band Combiner
ApplicationPCS, AWS-1, AWS-3, AWS-4(U), WCS, BRS, EBS, LTE2.6
Configuration
ShareLite Dual diplexer, Stacked, Outdoor/Indoor, No DC Pass (DC Ground)

Electrical Specifications

Branch1, 2
Frequency Range MHz1850-1915
1930-1995
1695-1780
2110-2700
Impedance Ohms50, 50
Frequency BandPCS, AWS, WCS, BRS, EBS, LTE2.6
DC PassNo, No
Insertion Loss dB.25 typ., .20 typ.
Return Loss dB22 (20 Min), 20 (18 Min)
Power Handling Continuous, Max.W200, 200
Rejection between bands dB40, 40
3rd Order PIM dBm (dBc)-118 (-161) @ 2x43 max., -118 (-161) @ 2x43 max.

Testing and Environmental

Temperature Range °C (°F)-40 to 65 (-40 to 149 )
Ingress ProtectionIP 67
EnvironmentalETSI 300-019-2-4 Class 4.1E
Lightning ProtectionIEC61000-4-5 Level 4 / 5kA, 8/20us

Mechanical Specifications

RF Connectors4.3-10 Female; 4 ports in, 2 ports out
Shipping Weight kg (lb)1.4 (3.1)

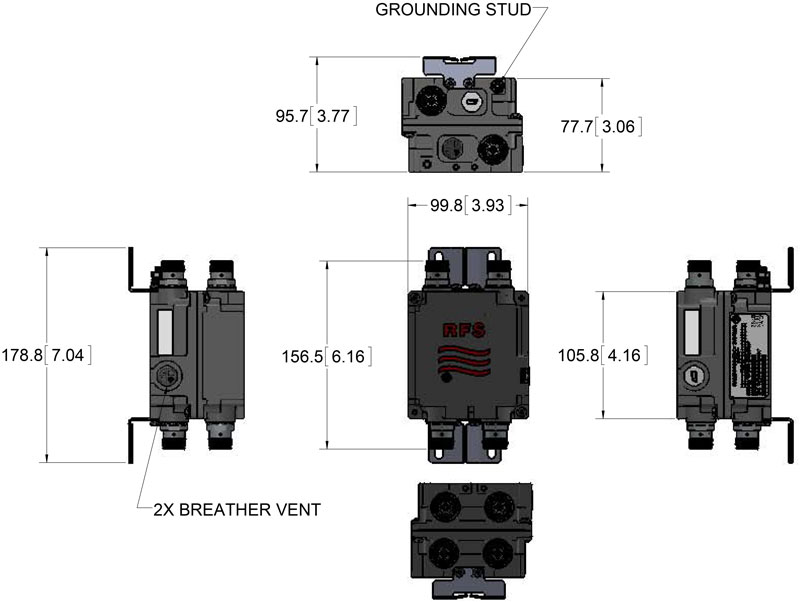

Dimensions, H x W x D mm (in)100 x 106 x 78 (3.93 x 4.16 x 3.1)
Shipping Dimensions, H x W x D mm (in)100 x 106 x 78 (3.93 x 4.16 x 3.1)
Volume L0.83
Mounting
Wall Mounting: With 4 screws (maximum 6mm diameter)
Pole Mounting: With included clamp set 40-110mm (1.57-4.33)
HousingAluminum
