FONF-LL01S-XXXM-09

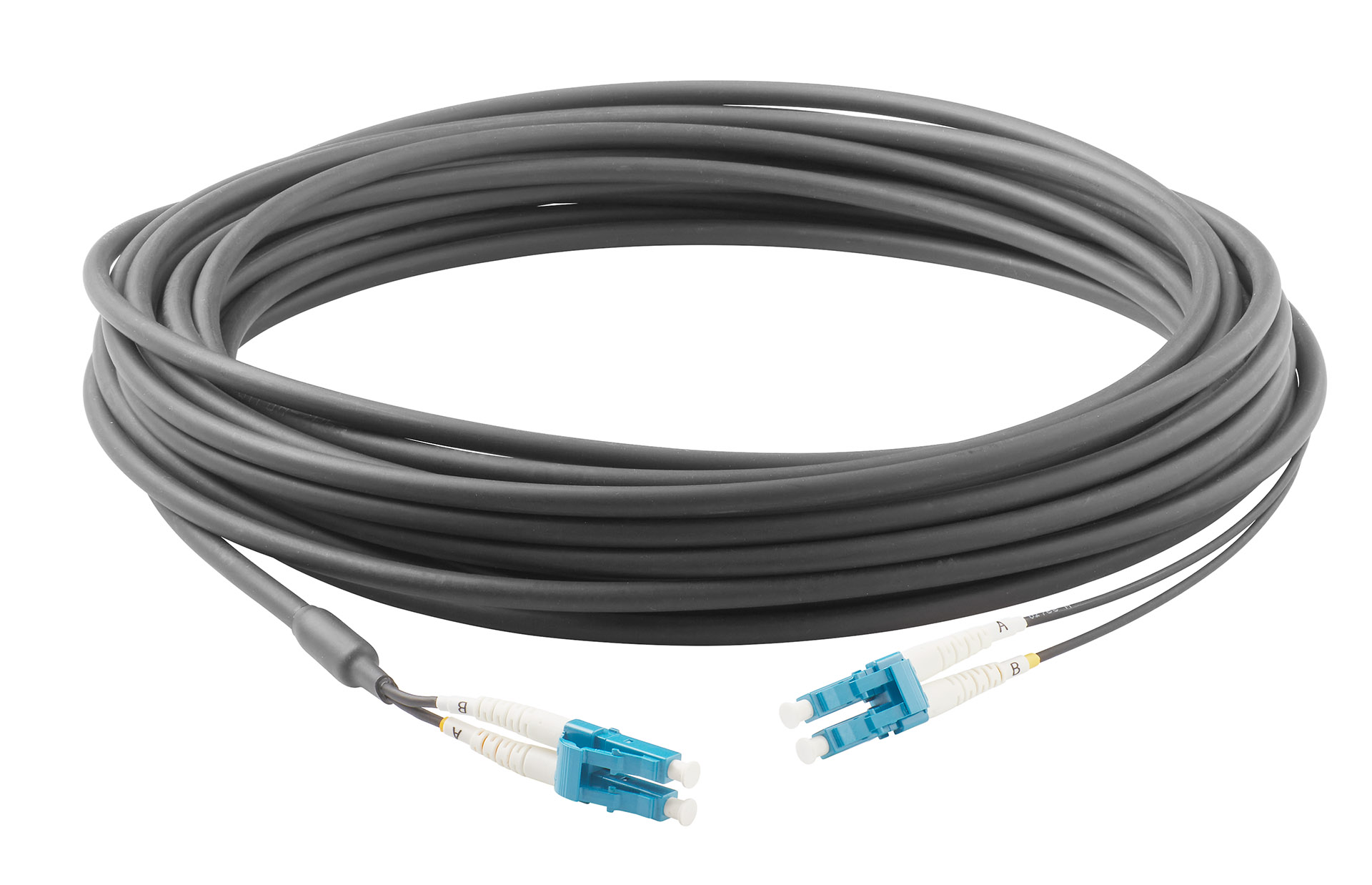

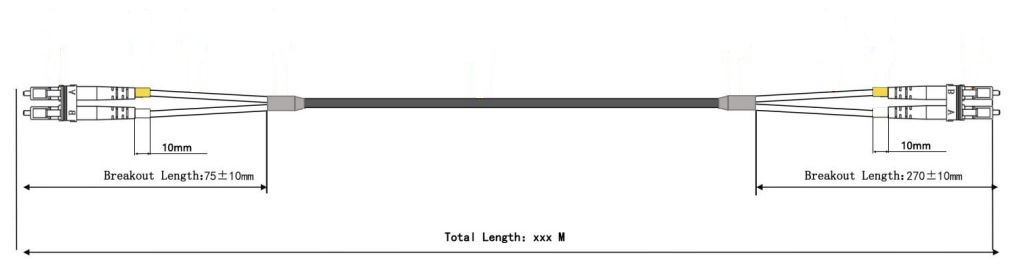

Fiber Optic Cable Assembly, LC Duplex to LC Duplex, LSZH

Rev : F | Rev date : 13 Feb 2024
RFS fiber only cable assemby, 1 single mode fiber, pre-terminated with an LC Duplex connector on both ends of this LSZH cable.

FEATURES / BENEFITS

  • Available in a range of standard or customized lengths to simplify network design






Technical features

Structure

Cable TypeG657A2, LSZH jacket

Mechanical Specifications

Outer Diameter Nominal mm (in)5 (0.197)
Minimum Bending Radius, (Operating)mm (in)50 (1.969)
Minimum Bending Radius, (Installation)mm (in)100 (3.937)
Tensile Strength (Operating)300 N
Tensile Strength (Installation)600 N
Crush Resistance (Operating)500 N / 100 mm
Crush Resistance (Installation)1000 N / 100 mm

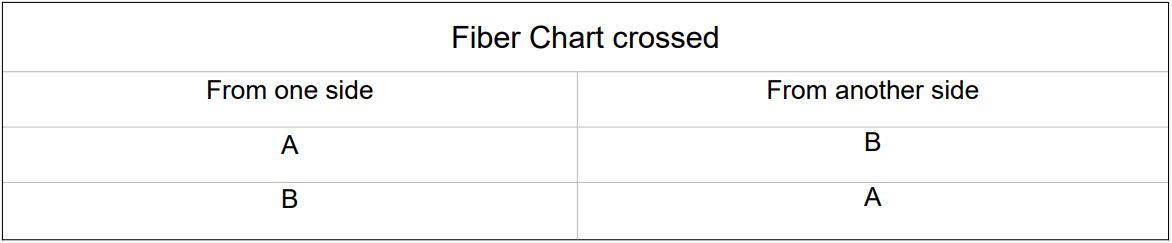

F/O Cable Specifications

F/O Cable TypeSingle Mode
Number of F/O Pairs1
Core/Clad µm9 /125
F/O Standards (Meets or Exceeds)G657A2
Fiber Termination End 1LC Duplex
Fiber Termination End 2LC Duplex
Fiber Attenuation dB/km≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm

Testing and Environmental

Storage Temperature °C (°F)-40 to 60 (-40 to 140 )
Operation Temperature °C (°F)-40 to 80 (-40 to 176 )
Installation Temperature °C (°F)-20 to 60 (-4 to 140 )

Additional Assemblies

LengthModel Name
1 mFONF-LL01S-001M-09
2 mFONF-LL01S-002M-09
3 mFONF-LL01S-003M-09
4 mFONF-LL01S-004M-09
5 mFONF-LL01S-005M-09
6 mFONF-LL01S-006M-09
7 mFONF-LL01S-007M-09
8 mFONF-LL01S-008M-09
9 mFONF-LL01S-009M-09
10 mFONF-LL01S-010M-09
20 mFONF-LL01S-020M-09
30 mFONF-LL01S-030M-09
40 mFONF-LL01S-040M-09
50 mFONF-LL01S-050M-09
60 mFONF-LL01S-060M-09
70 mFONF-LL01S-070M-09
80 mFONF-LL01S-080M-09
90 mFONF-LL01S-090M-09
100 mFONF-LL01S-100M-09
110 mFONF-LL01S-110M-09
120 mFONF-LL01S-120M-09
125 mFONF-LL01S-125M-09
other length on request
