FONF-MM06S-XXXM

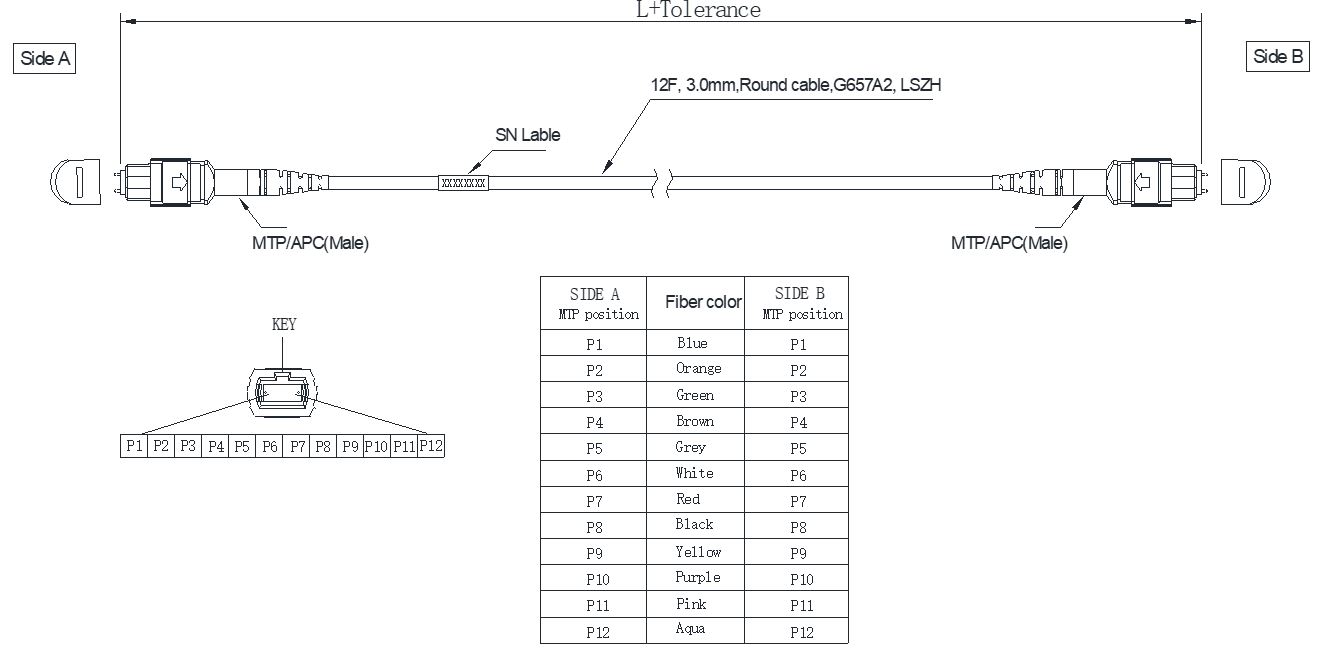

HYBRIFLEX® Fiber Optic Cable Assembly, MTP12/APC Male to MTP12/APC Male, LSZH, Indoor
Rev : B | Rev date : 03 Mar 2022
HYBRIFLEX fiber only cable assemby, 12 single mode fibers, pre-terminated with an MTP12 male connector on both ends of this LSZH, indoor cable. Optimized for Radio over Fiber (RoF) applications, for use within the RFS "Plug and Play" RoF solution. This product is designed to connect two spans of backbone cable which have been terminated with MTP female connectors.
FEATURES / BENEFITS
- High precision MTP/APC fiber connector provides low insertion loss, high return loss,excellent stability and durability
- Available in a range of standard or customized lengths to simplify network design
- MTP connectors are terminated and fully tested in controlled conditions to ensure optimum performance and reliability
- RFS' "Plug and Play" solution simplifies network design, minimizes installation/testing time and the necessary on site skills
Structure |

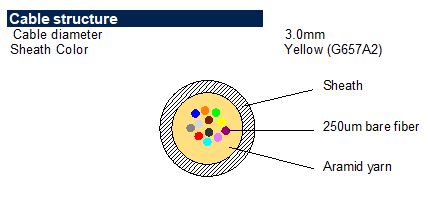

|---|
| Cable Type | | 12 single mode fibers (G657A2), LSZH jacket, yellow | | Number of Fiber | | 12 |
|
Mechanical Specifications |
|---|
| Outer Diameter Nominal | mm (in) | 4.5 (0.177) | | Minimum Bending Radius, (Operating) | mm (in) | 30 (1.181) | | Minimum Bending Radius, (Installation) | mm (in) | 50 (1.969) | | Tensile Strength (Operating) | | 130 N | | Tensile Strength (Installation) | | 440 N | | Crush Resistance (Operating) | | 300 N / 10 cm | | Crush Resistance (Installation) | | 1000 N / 10 cm |
|
Cable Jacket |
|---|
| Jacket Material | | LSZH |
|
F/O Cable Specifications |
|---|
| F/O Cable Type | | Loose-tube, Single Mode | | Core/Clad | µm | 9 /125 | | F/O Cable Jacket | | LSZH | | F/O Standards (Meets or Exceeds) | | G657A2 | | Fiber Termination End 1 | | MTP/APC male, single mode, yellow housing, IEC 61754-7 | | Fiber Termination End 2 | | MTP/APC male, single mode, yellow housing, IEC 61754-7 | | Fiber Attenuation | | ≤ 0.36dB/km λ=1310nm ; ≤0.22dB/km λ =1550nm | | Connector Insertion Loss | | MTP:Max. 0.35 dB @ 1310&1550nm/ IEC 61300-3-4 Method B | | Connector Return Loss | | MTP: Min. 60 dB @ 1310&1550nm |
|
Testing and Environmental |
|---|
| Storage Temperature | °C (°F) | -25 to 70 (-13 to 158 ) | | Operation Temperature | °C (°F) | -20 to 60 (-4 to 140 ) | | Installation Temperature | °C (°F) | -10 to 55 (14 to 131 ) |
|
Ordering Information |
|---|
| <30 m |
1 PC in a bag |
|
Additional Assemblies |
|---|
| Length | Model Name | | 1 m | FONF-MM06S-001M | | 2 m | FONF-MM06S-002M | | 3 m | FONF-MM06S-003M | | 4 m | FONF-MM06S-004M | | 5 m | FONF-MM06S-005M | | 6 m | FONF-MM06S-006M | | 7 m | FONF-MM06S-007M | | 8 m | FONF-MM06S-008M | | 9 m | FONF-MM06S-009M | | 10 m | FONF-MM06S-010M |
|
