FONF-MU06S-XXXM
HYBRIFLEX® Fiber Optic Cable Assembly, MTP12/APC Male to 12 x SC/APC, LSZH, Indoor
Rev : B | Rev date : 03 Mar 2022
HYBRIFLEX fiber only cable assemby, 12 single mode fibers, pre-terminated with an MTP12 male connector on one end and 12 SC/APC connectors on the other end of the LSZH, indoor cable. Optimized for Radio over Fiber (RoF) applications, for use within the RFS "Plug and Play" RoF solution.
FEATURES / BENEFITS
- High precision MTP/APC and SC/APC fiber connectors provide low insertion loss, high return loss,excellent stability and durability
- Mechanical branching system ensures full strain relief
- Customized lengths are available in addition to the 3m standard version
- All connectors are terminated and tested in controlled conditions to ensure optimum performance and reliability
- RFS' "Plug and Play" solution simplifies network design, minimizes installation/testing time and the necessary on site skills
Structure |
|---|

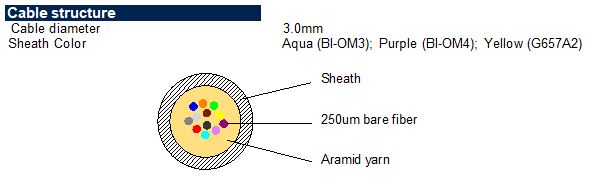

| Cable Type | | 12 single mode fibers (G657A2), LSZH jacket, yellow | | Number of Fiber | | 12 |
|
Mechanical Specifications |
|---|
| Outer Diameter Nominal | mm (in) | 3 (0.118) | | Minimum Bending Radius, (Operating) | mm (in) | 30 (1.181) | | Minimum Bending Radius, (Installation) | mm (in) | 50 (1.969) | | Tensile Strength (Operating) | | 30 N | | Tensile Strength (Installation) | | 100 N | | Crush Resistance (Operating) | | 100 N / 10 cm | | Crush Resistance (Installation) | | 500 N / 10 cm |
|
Cable Jacket |
|---|
| Jacket Material | | LSZH |
|
F/O Cable Specifications |
|---|

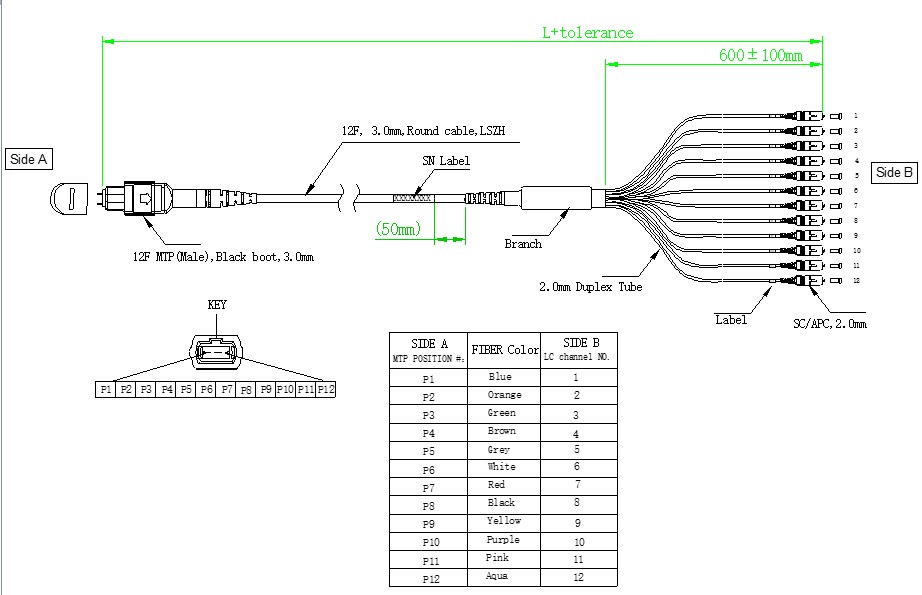

| Core/Clad | µm | 9 /125 | | F/O Cable Jacket | | LSZH | | F/O Standards (Meets or Exceeds) | | G657A2 | | Fiber Termination End 1 | | MTP/APC male, single mode, yellow housing, IEC 61754-7 | | Fiber Termination End 2 | | 12 x SC/APC simplex | | FO Break-out length | mm(in) | 600 +/-100 | | Fiber Attenuation | dB/km | ≤ 0.36dB/km λ=1310nm ; ≤0.22dB/km λ =1550nm | | Connector Insertion Loss | | MTP(SM): Max. 0.35 dB @ 1310&1550nm/ IEC 61300-3-4 Method B ; SC/APC(SM): Max. 0.30 dB @ 1310&1550nm/ IEC 61300-3-4 Method B | | Connector Return Loss | | MTP(SM): Min. 60 dB @ 1310&1550nm ; SC/APC(SM): Min. 60 dB @ 1310&1550nm |
|
Testing and Environmental |
|---|
| Storage Temperature | °C (°F) | -25 to 70 (-13 to 158 ) | | Operation Temperature | °C (°F) | -20 to 60 (-4 to 140 ) | | Installation Temperature | °C (°F) | -10 to 55 (14 to 131 ) |
|
Ordering Information |
|---|
| L<30M |
1 pc in Bag |
|
Additional Assemblies |
|---|
| Length | Model Name | | 1 m | FONF-MU06S-001M | | 2 m | FONF-MU06S-002M | | 3 m | FONF-MU06S-003M | | 4 m | FONF-MU06S-004M | | 5 m | FONF-MU06S-005M | | 6 m | FONF-MU06S-006M | | 7 m | FONF-MU06S-007M | | 8 m | FONF-MU06S-008M | | 9 m | FONF-MU06S-009M | | 10 m | FONF-MU06S-010M |
|
