FOPC-LU01S-xxxM
Fiber Optic Patch Cord, DLC/APC to DSC/APC, SM Duplex, LSZH, Indoor
Rev : A | Rev date : 20 Sep 2023

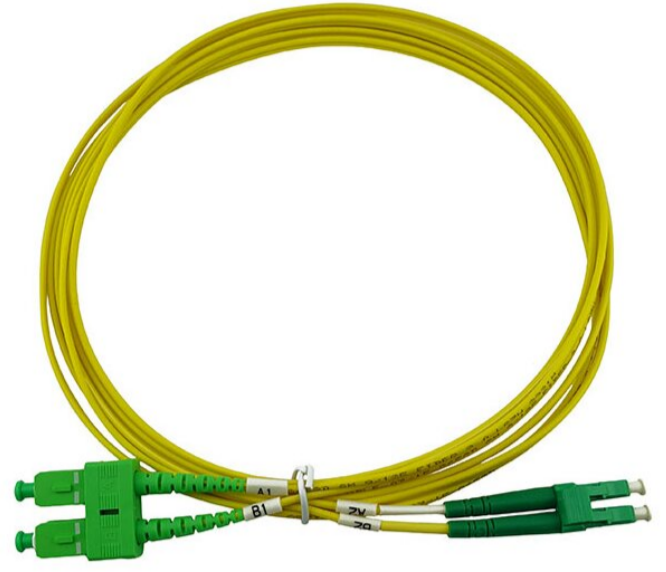

Duplex LC/APC to Duplex SC/APC, G65572A2 5.0mm duplex patchcord, factory fitted guaranteed with high-quality glass fiber cores terminated in highly reliable zirconia ceramic ferrules with high precision polishing to offer low insertion loss and high return loss values optimized by 8° APC characteristic in green housing for easier identifications. For a low smoke emission in case of fire, all RFS Patch Cables use a flame-resistant, halogen-free LSZH outer sheathing making them suitable for the connection to patch panel ports, with each other or the associated connection of optical transceivers, designed to withstand up to 1500 mating cycles with complete peace of mind for the transmission of optical signals without any deterioration.
FEATURES / BENEFITS
- High precision LC and SC/APC connectors provide low insertion loss, high return loss, excellent stability and durability
- All connectors are terminated and fully tested in controlled conditions to ensure optimum performance and reliability
- Available in a range of standard or customized lengths to simplify network design
Structure |
|---|
| Cable Type | | Singlemode fiber (G657A2), LSZH jacket, yellow | | Number of Fiber | | 2 |
|
Mechanical Specifications |
|---|
| Minimum Bending Radius, (Operating) | mm (in) | 20 (0.787) | | Minimum Bending Radius, (Installation) | mm (in) | 40 (1.575) |
|
Cable Jacket |
|---|
| Jacket Material | | LSZH |
|
F/O Cable Specifications |
|---|
| F/O Cable Type | | Singlemode | | Core/Clad | µm | 9 /125 | | Secondary Protection Nominal | µm (in) | 900 (0.035) | | F/O Standards (Meets or Exceeds) | | Fibre: G657A2, Cable according to IEC60793-2, Connectors: IEC61754-20 | | Fiber Termination End 1 | | DLC/APC | | Fiber Termination End 2 | | DSC/APC | | Fiber Attenuation | dB/km | ≤ 0.20dB/km λ=1550nm ; ≤0.35dB/km λ =1300nm | | Connector Insertion Loss | | LC(APC)SM : Max. 0.25 dB @ 1300&1550nm ; SC(APC)SM : Max. 0.25 dB @ 1300&1550nm |
|
Testing and Environmental |
|---|
| Storage Temperature | °C (°F) | -25 to 70 (-13 to 158 ) | | Operation Temperature | °C (°F) | -20 to 60 (-4 to 140 ) | | Installation Temperature | °C (°F) | -5 to 50 (23 to 122 ) |
|
ASSEMBLY LOSS |
|---|
| Optical Insertion Loss | Assembly or Jumper | DLC/APC (SM): Max. 0.25dB@1310&1550nm - DSC/APC (SM): Max. 0.25dB@1310&1550nm |
|
Ordering Information |
|---|
| Standard |
1 pcs in PE bag |
|
Additional Assemblies |
|---|
| Length | Model Name | | 1 m | FOPC-LU1S-001M | | 3 m | FOPC-LU1S-003M | | 5 m | FOPC-LU1S-005M | | 10 m | FOPC-LU1S-010M | | 20 m | FOPC-LU1S-020M | | 30 m | FOPC-LU1S-030M | | 50 m | FOPC-LU1S-050M |
|
