FOPC-UU1SS-XXXM
Fiber Optic Patch Cord, Simplex, SC/APC to SC/APC, Single Mode, LSZH, Indoor
Rev : C | Rev date : 10 Mar 2023
A simplex fiber optic patch cord incorporating bend insensitive single mode fiber, preterminated with SC/APC connectors on both ends. The tight buffered fibre and non metallic strain member is protected by an LSZH jacket, suitable for indoor applications
FEATURES / BENEFITS
- High precision SC/APC connector provides low insertion loss, high return loss, excellent stability, repeatability and durability
- All connectors are terminated and fully tested in controlled conditions to ensure optimum performance and reliability
- Available in a range of standard or customized lengths to simplify network design

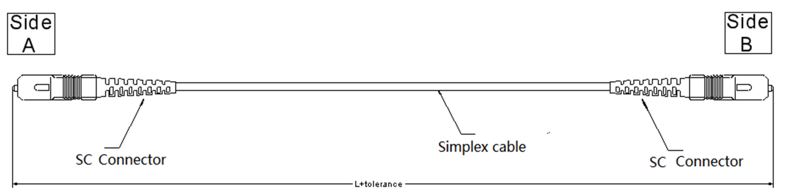

Fiber Optical ， Patch Cord, (U) SC/APC, (U) SC/APC , 1 core Fiber, Simplex Fiber,Single Mode , XXX Meters
Structure |
|---|
| Cable Type | | Tight buffered optical fiber | | Number of Fiber | | 1 |
|
Mechanical Specifications |
|---|

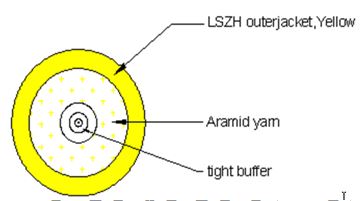

| Outer Diameter Nominal | mm (in) | 2 (0.079) | | Minimum Bending Radius, (Operating) | mm (in) | 20 (0.787) | | Minimum Bending Radius, (Installation) | mm (in) | 40 (1.575) | | Tensile Strength (Operating) | | 40 N | | Tensile Strength (Installation) | | 80 N | | Crush Resistance (Operating) | | 100 N / 10 cm | | Crush Resistance (Installation) | | 500 N / 10 cm |
|
Cable Jacket |
|---|
| Jacket Material | | Yellow LSZH |
|
F/O Cable Specifications |
|---|
| F/O Cable Type | | Tight Buffer, Single Mode | | Core/Clad | µm | 9 /125 | | F/O Cable Jacket | | Yellow LSZH | | F/O Standards (Meets or Exceeds) | | ITU G 657.A2 | | Fiber Termination End 1 | | SC/APC, simplex, single mode, IEC 61754-4 | | Fiber Termination End 2 | | SC/APC, simplex, single mode, IEC 61754-4 | | Fiber Attenuation | dB/km | ≤ 0.36dB/km λ=1310nm ; ≤0.22dB/km λ =1550nm | | Connector Insertion Loss | | Max. 0.30 dB @ 1310&1550nm@IEC 61300-3-4 Method B | | Connector Return Loss | | Min. 60 dB @ 1310&1550nm@IEC 61300-3-6 |
|
Testing and Environmental |
|---|
| Storage Temperature | °C (°F) | -25 to 70 (-13 to 158 ) | | Operation Temperature | °C (°F) | -20 to 60 (-4 to 140 ) | | Installation Temperature | °C (°F) | -5 to 50 (23 to 122 ) |
|
Additional Assemblies |
|---|
| Length | Model Name | | 1 m | FOPC-UU1SS-001M | | 2 m | FOPC-UU1SS-002M | | 3 m | FOPC-UU1SS-003M | | 4 m | FOPC-UU1SS-004M | | 5 m | FOPC-UU1SS-005M | | 6 m | FOPC-UU1SS-006M | | 7 m | FOPC-UU1SS-007M | | 8 m | FOPC-UU1SS-008M | | 9 m | FOPC-UU1SS-009M | | 10 m | FOPC-UU1SS-010M |
|
