FQBLDW5020S4-1C
ShareLiteTM 380-960/1350-1525/1710-1880/1920-2170 MHz Quadplexer
with Full DC/AISG pass, Single configuration, 4.3-10 Connectors

The Sharelite FQBLDW Series of quadplexers is designed to enable feeder sharing among
systems in the 380-960,1350-1525,1710-1880,1920-2170 MHz ranges. RFS' innovative
cavity filter design provides a very low insertion loss of 0.20dB typical while keeping the product extremely compact and lightweight. The use of highly selective filters guarantees a high
isolation level of 50 dB between ports, to ensure an interference-free environment for any
technology deployed. The filter design incorporates lightning protection for additional reliability.
Designed to withstand the most severe outdoor environments, the quadplexer features an IP67
class protection with a vented enclosure to avoid any possible effects of pressure instability,
thus providing a long lasting, extremely reliable solution to any network.

FEATURES / BENEFITS

  • Single unit optimizing in-building application
  • Full DC/AISG pass
  • 4.3-10 Connectors - Reduce tower loading with connectors that are 40% smaller and lighter than 7-16 DIN connectors
  • Extremely Low Insertion Loss
  • High level of Rejection between bands - Protection against interference
  • High Power Handling Capability
  • Very compact & small size design - Easy installation and reduced tower load
  • Exceptional reliability & environmental protection (IP-67)
  • Grounding already provided through the mounting bracket


Technical features

General Specifications

Product TypeQuadplexer / Cross Band Combiner
ApplicationFeeder sharing among systems in the 380-960,1350-1525,1710-1880,1920-2170 MHz ranges
Configuration
Single Indoor/Outdoor

Electrical Specifications

Branch1, 2, 3, 4
Frequency Range MHz380-9601350-15251710-18801920-2170
Impedance Ohms50, 50, 50, 50
Frequency BandLTE700, LTE800, GSM900, 1500 L Band (LTE Band 32), GSM1800, LTE1800, UMTS, LTE2100
DC PassFull DC pass
Insertion Loss dB0.30 max. (0.15 typ.), 0.30 max. (0.15 typ.), 0.40 max. (0.20 typ.), 0.40 max. (0.20 typ.)
Group Delay Variationns5, 10, 20, 20
GROUPDELAYNS ns10, 15, 30, 30
Total Group Delay ns10, 15, 30, 30
Return Loss dB19min. / 22 typ., 19min. / 22 typ., 19min. / 22 typ., 19min. / 22 typ.
Isolation dB50
Power Handling Continuous, Max.W1200W at common port, 300W in each path
Input Power, PEP W3000
3rd Order PIM dBm (dBc)-118 (-161) @2x43 typ.

Testing and Environmental

Temperature Range °C (°F)-40 to 65 (-40 to 149 )
Ingress ProtectionIP67
EnvironmentalETSI 300-019-2-4 Class 4.1E
Lightning ProtectionEN/IEC 61000-4-5 Level 4 / 10KA, 8/20 us

Mechanical Specifications

RF Connectors4.3-10 Female; 4 ports in, 1 port out
Weight kg (lb)4.6 (10.1)
Shipping Weight kg (lb)4.6 (10.1)

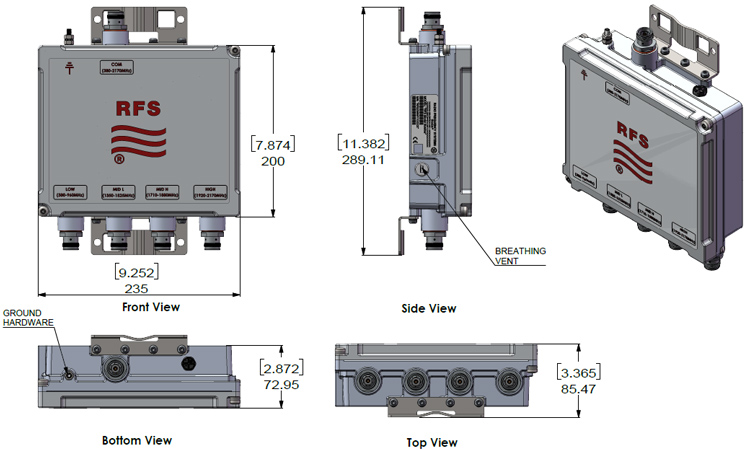

Dimensions, H x W x D mm (in)200 x 235 x 73 (7.9 x 9.3x 2.8)
Shipping Dimensions, H x W x D mm (in)200 x 235 x 73 (7.9 x 9.3x 2.8)
Mounting
Wall mounting: with 4 screws (maximum 6mm diameter), not included
Pole Mounting: with included clamp set, 38-127mm (1.5"-5.0")

Selection Table

DC/AISG PATH SELECTION GUIDE - FQBLDW5020S4 Series
Type Model Number No PassPass 1920-2170Pass 1710-1880Pass 1350-1525Pass 380-960Full PassAuto Sense
Single FQBLDW5020S4-S1 X
Single with Integrated Smart Bias-TFQBLDW5020S4-S1A X
Single FQBLDW5020S4-1C X
Single FQBLDW5020S4-2C X
Single FQBLDW5020S4-3C X
Single FQBLDW5020S4-4C X
Single FQBLDW5020S4-5C X
Single FQBLDW5020S4-NC X

Notes

Please refer to the latest datasheet version available in our Website
