FR-N-12SM-01-10F
HYBRIFLEX® RRH Optical Fiber Cable, 12 Pair, Ruggedized Bend-Insensitive Single-Mode Fiber, DLC Connectors, 10 ft

Rev : C | Rev date : 27 Apr 2021

PRODUCT DESCRIPTION

RFS’ HYBRIFLEX Remote Radio Head (RRH) hybrid feeder cabling solution combines any combination of optical fiber and/or DC power for RRHs in a single lightweight armored or unarmored cable, making it the world’s most innovative solution for RRH deployments. Hybrid, Fiber Optic and DC riser trunk and jumper cables are available in a large variety of fiber counts, DC counts and cross sections. Both pre-connectorized and on-site options are available.

FEATURES / BENEFITS

  • Ruggedized, bend-insensitive fiber design with outstanding bending characteristics
  • Lightweight solution and compact design – Decreases tower loading
  • Robust cabling – Eliminates need for expensive cable trays and ducts
  • Installation of tight bundled fiber optic cable pair directly to the RRH – Reduces CAPEX and wind load by eliminating need for interconnection
  • Outdoor, black jacket – Ensures long-lasting cable protection
  • 100% Factory tested - Online test results available

TECHNICAL FEATURES

Structure
Cable Type   HYBRIFLEX®
Fire Performance   Flame Retardant
Lengthm (ft)3 (10)

Mechanical Specifications
Outer Diameter Nominal mm (in) 5.5 (0.217)
Cable Weight kg/m (lb/ft) 0.033 (0.022)
Minimum Bending Radius, Single Bend mm (in) 66 (2.6)
Minimum Bending Radius, Multiple Bends mm (in) 83 (3.3)
Recommended / Maximum Clamp Spacing m (ft) 1 / 1.2 (3.25 / 4)

F/O Cable Specifications

Number of F/O Pairs12
F/O Cable Type   G657-A2 Single Mode, Bend Tolerant
Core/Clad µm 9/125
Secondary Protection Nominal µm (in) 900 (0.035)
F/O Standards (Meets or Exceeds)   UL Listed Type OFNR (UL1666), RoHS Compliant
Optical Loss dB/Km 0.5 @ 1310 nm
0.5 @ 1550 nm

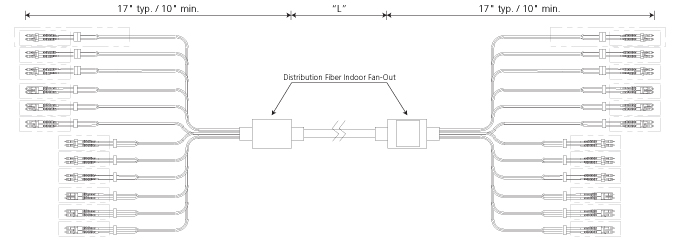

FO Break-out Length (Top) mm (in) 279 (11)
FO Break-out Length (Bottom) mm (in) 228 (9)
Cable Sealing Method   Semi-rigid flame-retardant polyolefin, with hot melt adhesive
Fiber Termination End 1DLC Connector
Fiber Termination End 2DLC Connector

Cable Jacket
UV-Protection Individual and External Jacket   Yes
Jacket Material   Flame Retardant, Indoor/Outdoor, PVC, Black

Testing and Environmental
Storage Temperature °C (°F) -40 to 70 (-40 to 158)
Operation Temperature °C (°F) -40 to 65 (-40 to 149)
Installation Temperature °C (°F) -20 to 65 (-4 to 149)
Jacket Specifications   UL 1666

EXTERNAL DOCUMENT LINKS

Installation Guidelines: Download

QuickShip 2.0 Program Information:  Download

On-line Factory Test Results: View

NOTES

Additional Assemblies - 1 Pair SM Fiber
Model Number Length, ft
FR-N-1SM-01-6F 6
FR-N-1SM-01-10F 10
FR-N-1SM-01-15F 15
FR-N-1SM-01-20F 20
FR-N-1SM-01-30F 30
FR-N-1SM-01-40F 40
FR-N-1SM-01-50F 50
FR-N-1SM-01-60F 60
FR-N-1SM-01-70F 70
FR-N-1SM-01-80F 80
FR-N-1SM-01-90F 90
FR-N-1SM-01-100F 100

Additional Assemblies - 2 Pair SM Fiber
Model Number Length, ft
FR-N-2SM-01-10F 10
FR-N-2SM-01-20F 20
FR-N-2SM-01-30F 30
FR-N-2SM-01-40F 40
FR-N-2SM-01-50F 50
FR-N-2SM-01-60F 60
FR-N-2SM-01-70F 70
FR-N-2SM-01-80F 80
FR-N-2SM-01-90F 90
FR-N-2SM-01-100F 100

Additional Assemblies - 3 Pair SM Fiber
Model Number Length, ft
FR-N-3SM-01-3F 3
FR-N-3SM-01-4F 4
FR-N-3SM-01-6F 6
FR-N-3SM-01-8F 8
FR-N-3SM-01-10F 10
FR-N-3SM-01-15F 15
FR-N-3SM-01-20F 20
FR-N-3SM-01-30F 30
FR-N-3SM-01-50F 50

Additional Assemblies - 6 Pair SM Fiber
Model Number Length, ft
FR-N-6SM-01-3F 3
FR-N-6SM-01-4F 4
FR-N-6SM-01-6F 6
FR-N-6SM-01-8F 8
FR-N-6SM-01-10F 10
FR-N-6SM-01-15F 15
FR-N-6SM-01-20F 20
FR-N-6SM-01-30F 30
FR-N-6SM-01-40F 40

Additional Assemblies - 12 Pair SM Fiber
Model Number Length, ft
FR-N-12SM-01-3F 3
FR-N-12SM-01-4F 4
FR-N-12SM-01-6F 6
FR-N-12SM-01-8F 8
FR-N-12SM-01-10F 10
FR-N-12SM-01-15F 15
FR-N-12SM-01-20F 20
FR-N-12SM-01-30F 30

Additional Assemblies - 1 Strand SM Fiber
Model Number Length, ft
FR-N-1SSM-01-10F 10
FR-N-1SSM-01-20F 20
FR-N-1SSM-01-30F 30
FR-N-1SSM-01-40F 40
FR-N-1SSM-01-50F 50
FR-N-1SSM-01-60F 60
FR-N-1SSM-01-70F 70
FR-N-1SSM-01-80F 80
FR-N-1SSM-01-90F 90
FR-N-1SSM-01-100F 100

Additional Assemblies - 2 Strand SM Fiber
Model Number Length, ft
FR-N-2SSM-01-10F 10
FR-N-2SSM-01-20F 20
FR-N-2SSM-01-30F 30
FR-N-2SSM-01-40F 40
FR-N-2SSM-01-50F 50
FR-N-2SSM-01-60F 60
FR-N-2SSM-01-70F 70
FR-N-2SSM-01-80F 80
FR-N-2SSM-01-90F 90
FR-N-2SSM-01-100F 100



PRE-PACKED HYBRIFLEX KITS FOR EASY INTEGRATION INTO RAYCAP JUNCTION BOXES

RFS now offers Kitting options for most hybrid risers and jumpers that include both the cable assembly and the Raycap inserts. For reference, kits have a “K” as the third digit in the model number. HB158 does not require an additional gland/insert for proper installation and sealing into the Distribution Boxes.

Kit Model Prefix Assembly Prefix Assembly Qty Raycap Insert Kit Insert Kit Contents Raycap Insert Kit Qty
HBK114 HB114 1 RFS-TRUNK-KIT (2) 190‐0620, Insert, M75, 1H, 40mm 1
HBK058 HBF058 RFS-JUMP-KIT (1) 190‐0621, Insert, M75, 3H, 22mm, Split w/ plugs
HBK012 HBF012 RFS-JUMP-KIT-2 (1) 190‐0903, Insert, M75, 2H, 15mm, Split w/ plugs
FRK-N FR-N RFS-FIBER-KIT (1) 190‐0657, Insert, M75, 6H, 6.1mm, Split w/ plugs
