HA-DCJMP-BM-10-XX

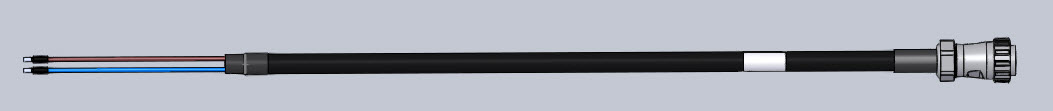

HYBRIFLEX® Power Jumper

Rev : C (P | Rev date : 22 Jul 2020

RFS' HYBRIFLEX ™ cabling solution for Remote Radio Head (RRU) combines optical fiber and DC power for RRUs in a single lightweight aluminum corrugated cable, making it the world’s most innovative solution for RRH deployments. It was developed to reduce installation complexity and cost at Cellular sites.

HYBRIFLEX™ cabling solutions allows mobile operators deploying RRH architecture to standardize RRH installation process and eliminates the need for and the cost of cable grounding.

FEATURES / BENEFITS

Technical features

Structure

Cable TypePower Jumper

Mechanical Specifications

Outer Diameter Nominal mm (in)12.5 (0.492)
Cable Weight kg/m (lb/ft)0.28 (0.18)
Minimum Bending Radius, (Operating)mm (in)70 (2.72)
Minimum Bending Radius, (Installation)mm (in)125 (4.92)

DC Power Cable Specifications

Number of DC Pairs1
Maximum DC-Resistance Power Cable Ω/km (Ω/kft)1.91 (0.57)
Cross Section of Power Cable mm² (AWG)10 (7)
DC Wire Jacket MaterialPolyethylene, PE
DC Wire Jacket Thickness mm (in)0.45 (0.02)
DC Cable Single Bending Radius mm (in)51 (2.01)
DC Cable Diameter mm (in)5.1 (0.2)
DC Standards (Meets or Exceeds)IEC 60232
DC Cable sealing methodWith Outdoor Usable Power Connector

Cable Jacket

UV-Protection Individual and External JacketYes
Jacket MaterialPE

F/O Cable Specifications

F/O Cable TypePower Jumper

Testing and Environmental

Storage Temperature °C (°F)-40 to 80 (-40 to 176 )
Operation Temperature °C (°F)-40 to 80 (-40 to 176 )
Installation Temperature °C (°F)-20 to 50 (-4 to 122 )

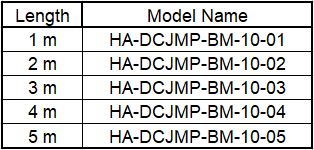

Other Length on request
