HA-FOJMP-LL-MM-XX

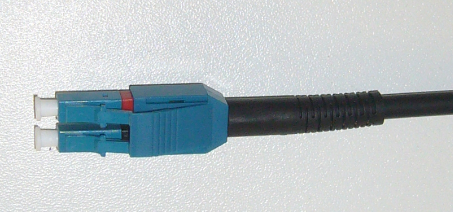

HYBRIFLEX® Fiber Jumper, Multi-Mode Fiber Jumper

RFS' HYBRIFLEX ™ cabling solution for Remote Radio Head (RRU) combines optical fiber and DC power for RRUs in a single lightweight aluminum corrugated cable, making it the world’s most innovative solution for RRH deployments. It was developed to reduce installation complexity and cost at Cellular sites.

HYBRIFLEX™ cabling solutions allows mobile operators deploying RRH architecture to standardize RRH installation process and eliminates the need for and the cost of cable grounding.

The FTTA Jumper is part of the cabling solution for RRU’s meant to build the F/O connection from the Adapter to the RRU. The Jumper cables can be ordered in 1m, 2m, 3m, 4m, and 5m jacketed length.



FEATURES / BENEFITS

  • Outdoor polyethylene jacket ð Ensure long-lasting cable protection
  • High class F/O performance
  • IP 67 connector sealing






Technical features

Structure

Cable TypeFiber Jumper
Size5 mm

Mechanical Specifications

Outer Diameter Nominal mm (in)5 (0.18)
Minimum Bending Radius, Single Bendmm (in)70 (3)
Minimum Bending Radius, Multi Bendsmm (in)125 (5)

Cable Jacket

UV-Protection Individual and External JacketYes

F/O Cable Specifications

F/O Cable TypeTight Buffer, Multi Mode
Number of F/O Pairs1
Core/Clad µm50 /125
Optical LossdB/Km3 @ 850 nm
3 @ 1310 nm
Fiber Termination End 1LC Connector
Fiber Termination End 2LC Connector

Testing and Environmental

Storage Temperature °C (°F)-40 to 70 (-40 to 158 )
Operation Temperature °C (°F)-40 to 65 (-40 to 149 )
Installation Temperature °C (°F)-20 to 65 (-4 to 149 )


Other Length on request
