HA-FOTA-LL-06SM-XXX
HYBRIFLEX® Fiber Trunk Cable, Single-Mode

Rev : B | Rev date : 01 Aug 2019

RFS' HYBRIFLEX ™ cabling solution for Remote Radio Head (RRU) combines optical fiber and DC power for RRUs in a single lightweight aluminum corrugated cable, making it the world’s most innovative solution for RRH deployments. It was developed to reduce installation complexity and cost at Cellular sites.

The HYBRIFLEX™ hybrid cable family is now supplemented by two new members: The Fiber Optic trunk cable and the DC trunk cable available in a large variety of fiber counts, DC counts and DC cross sections.

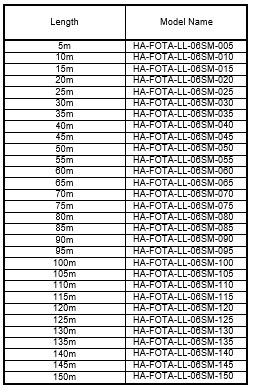

The armored F/O trunk cable is part of the cabling solution for RRU’s meant to build the F/O connection from the bottom patch panel to the Distribution Box near the RRU. It consists of a jacketed part of length XX, a breakout part to the Distribution Box and a breakout part to the BBU side. The F/O trunk cables can be ordered from 5m up to 150m in increments of 5 m jacketed length.



FEATURES / BENEFITS

  • Outdoor polyethylene jacket ð Ensure long-lasting cable protection
  • High class F/O performance
  • IP 67 connector sealing






Technical features

Structure

Cable TypeFiber Trunk
Size7 mm

Mechanical Specifications

Outer Diameter Nominal mm (in)7 (0.29)
Minimum Bending Radius, (Operating)mm (in)70 (3)
Minimum Bending Radius, (Installation)mm (in)125 (5)

Cable Jacket

UV-Protection Individual and External JacketYes

F/O Cable Specifications

F/O Cable TypeTight Buffer, Single Mode
Number of F/O Pairs6
Core/Clad µm9 /125
Optical LossdB/Km1 @ 1310 nm
1 @ 1550 nm

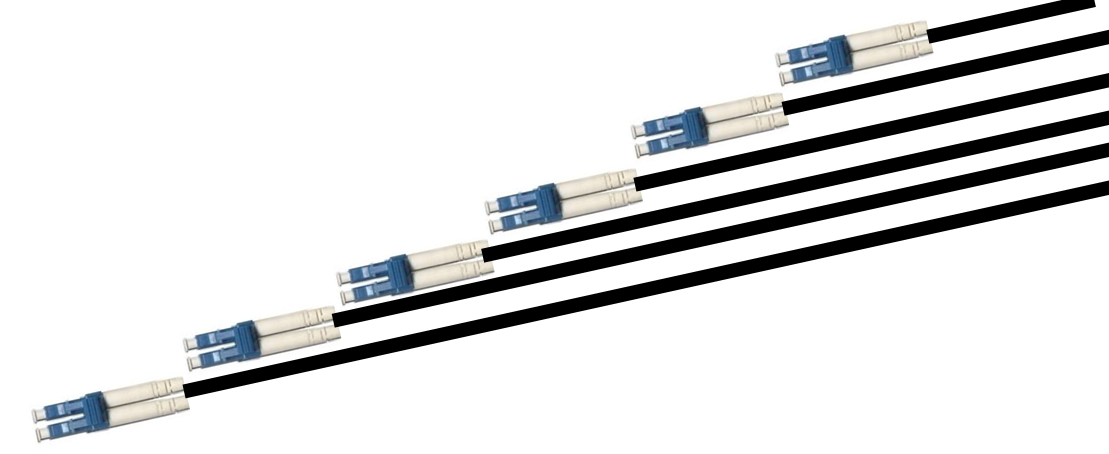

Fiber Termination End 16 x LC Connector
Fiber Termination End 26 x LC Connector

Testing and Environmental

Storage Temperature °C (°F)-40 to 70 (-40 to 158 )
Operation Temperature °C (°F)-40 to 65 (-40 to 149 )
Installation Temperature °C (°F)-20 to 65 (-4 to 149 )


RRU Side


Other length on request


BBU Side

External Document Links

Notes
