HB158-U12S24-10-LI

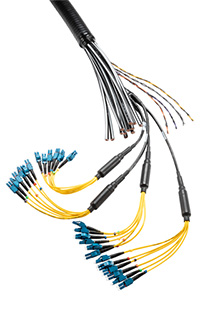

HYBRIFLEX® Hybrid Feeder Cabling Solution 12x24, 1-5/8”, 12 pairs 6AWG, Low-Inductance Coaxial Power Wire, 24 pairs Single-Mode Fiber, DLC Connectors, 10 ft

RFS’ HYBRIFLEX Remote Radio Head (RRH) hybrid feeder cabling solution combines optical fiber and DC power for RRHs in a single lightweight aluminum corrugated cable, making it the world’s most innovative solution for RRH deployments. It was developed to reduce installation complexity and costs at Cellular sites.

HYBRIFLEX allows mobile operators deploying an RRH architecture to standardize the RRH installation process. HYBRIFLEX combines optical fiber (multi-mode or single-mode) and power in a single corrugated cable. It may eliminate the need for junction boxes as well as works in conjuction with and can connect multiple RRHs with a single feeder. Standard RFS CELLFLEX® accessories can be used with HYBRIFLEX cable. Both pre-connectorized and on-site options are available.

FEATURES / BENEFITS

  • Aluminum corrugated armor with outstanding bending characteristics – Minimizes installation time and enables mechanical protection and shielding
  • Same accessories as 1-5/8" coaxial cable
  • Outer conductor grounding – Utilizes same grounding methods as coaxial cable
  • Lightweight solution and compact design – Decreases tower loading
  • Robust cabling – Eliminates need for expensive cable trays and ducts
  • Installation of tight bundled fiber optic cable pairs directly to the RRH – Reduces CAPEX and wind load by eliminating need for interconnection
  • Optical fiber and power cables housed in single corrugated cable – Saves CAPEX by standardizing RRH cable installation and reducing installation requirements
  • UL-Listed, flame-retardant jacket, UV protected assembles - Allows both indoor and outdoor applications
  • Maximum robustnessFully armored cable includes riser trunk and top outdoor breakout

TECHNICAL FEATURES

Structure

Cable Type   HYBRIFLEX® Low Inductance
Fire Performance   Flame Retardant
Size   1-5/8"
Lengthm (ft)3 (10)

Mechanical Specifications

Outer Diameter Nominal mm (in) 50.19 (1.976)
Cable Weight kg/m (lb/ft) 4.76 (3.2)
Minimum Bending Radius, Single Bend mm (in) 254 (10)
Minimum Bending Radius, Multiple Bends mm (in) 508 (20)
Recommended / Maximum Clamp Spacing m (ft) 1 / 1.2 (3.25 / 4)

Armor Specifications

Armor Type   Corrugated Aluminum
Maximum DC-Resistance of Armor Ω/km (Ω/kft) 0.58 (0.178)
Diameter Corrugated Armor mm (in) 46.4 (1.83)

Cable Jacket

UV-Protection Individual and External Jacket   Yes

DC Power Cable Specifications

Number of DC Pairs   12
Maximum DC-Resistance Power Cable Ω/km (Ω/kft) 1.4 (0.41)
Cross Section of Power Cable mm² (AWG) 13.3 (6)
DC Wire Jacket Material   PVC
DC Cable Single Bending Radius mm (in) 137 (5.4)
DC Cable Diameter mm (in) 9.3 (0.365)
DC Cable Jacket Material   PVC
DC Standards (Meets or Exceeds)   For use in UL 2882, PVC, RoHS/REACH Compliant
Break-out Length (Top) mm (in) 812 (32)
Break-out Length (Bottom) mm (in) 812 (32)
Alarm Wire   8 (4 twisted pairs), 0.8 mm2 (8), 18 AWG
Alarm Wire Standards (Meets or Exceeds)   UL Standard 1063, 1581 VW-1, MTW Oil and Gasoline RES1 SUNRES (Cable meets UL requirements), RoHS/REACH Compliant

F/O Cable Specifications

F/O Cable Type   G657-A1 Single Mode, Bend Tolerant
Number of F/O Pairs   24
Core/Clad µm 9/125
Secondary Protection Nominal µm (in) 900 (0.035)
Single Bending Radius mm (in) 157 (6.2)
Cable Diameter   5.512 (0.217)
F/O Standards (Meets or Exceeds)   UL Listed Type OFNR (UL1666), RoHS Compliant
Optical Loss dB/Km 0.5 @ 1310 nm
0.5 @ 1550 nm
Fiber Termination End 1   DLC connector
Fiber Termination End 2   DLC connector
FO Break-out Length (Top) mm (in) 1524 (60)
FO Break-out Length (Bottom) mm (in) 1524 (60)

Testing and Environmental

Storage Temperature °C (°F) -40 to 70 (-40 to 158)
Operation Temperature °C (°F) -40 to 65 (-40 to 149)
Installation Temperature °C (°F) -20 to 65 (-4 to 149)
Jacket Specifications   UL2882, UL Listed

Additional Assembly Lengths

Model Number Length (ft)
HB158-U12S24-10-LI 10
HB158-U12S24-20-LI 20
HB158-U12S24-30-LI 30
HB158-U12S24-40-LI 40
HB158-U12S24-50-LI 50
HB158-U12S24-60-LI 60
HB158-U12S24-70-LI 70
HB158-U12S24-80-LI 80
HB158-U12S24-90-LI 90
HB158-U12S24-100-LI 100
HB158-U12S24-110-LI 110
HB158-U12S24-120-LI 120
HB158-U12S24-130-LI 130
HB158-U12S24-140-LI 140
HB158-U12S24-150-LI 150
HB158-U12S24-160-LI 160
HB158-U12S24-170-LI 170
HB158-U12S24-180-LI 180
HB158-U12S24-190-LI 190
HB158-U12S24-200-LI 200
HB158-U12S24-210-LI 210
HB158-U12S24-220-LI 220
HB158-U12S24-230-LI 230
HB158-U12S24-240-LI 240
HB158-U12S24-250-LI 250
HB158-U12S24-260-LI 260
HB158-U12S24-270-LI 270
HB158-U12S24-280-LI 280
HB158-U12S24-290-LI 290
HB158-U12S24-300-LI 300
HB158-U12S24-310-LI 310
HB158-U12S24-320-LI 320
HB158-U12S24-330-LI 330
HB158-U12S24-340-LI 340
HB158-U12S24-350-LI 350



EXTERNAL DOCUMENT LINKS

Installation Guidelines: Download

QuickShip 2.0 Program Information:  Download

On-line Factory Test Results: View

Additional Assembly Lengths

Model Number Length (ft)
HB158-U12S24-360-LI 360
HB158-U12S24-370-LI 370
HB158-U12S24-380-LI 380
HB158-U12S24-390-LI 390
HB158-U12S24-400-LI 400
HB158-U12S24-410-LI 410
HB158-U12S24-420-LI 420
HB158-U12S24-430-LI 430
HB158-U12S24-440-LI 440
HB158-U12S24-450-LI 450
HB158-U12S24-460-LI 460
HB158-U12S24-470-LI 470
HB158-U12S24-480-LI 480
HB158-U12S24-490-LI 490
HB158-U12S24-500-LI 500
HB158-U12S24-510-LI 510
HB158-U12S24-520-LI 520
HB158-U12S24-530-LI 530
HB158-U12S24-540-LI 540
HB158-U12S24-550-LI 550
HB158-U12S24-560-LI 560
HB158-U12S24-570-LI 570
HB158-U12S24-580-LI 580
HB158-U12S24-590-LI 590
HB158-U12S24-600-LI 600
HB158-U12S24-610-LI 610
HB158-U12S24-620-LI 620
HB158-U12S24-640-LI 640
HB158-U12S24-700-LI 700
HB158-U12S24-720-LI 720

NOTES

Nominal length equals length of trunk not including top and bottom breakouts; breakout lengths add additionally to the total assembly length tip to tip.

Includes 4 pairs of wires used to carry alarm signals.

The package also includes a kit of special RFS-designed DC insulating boots, 1 per coaxial power wire, used to properly protect and insulate the DC wires after stripping the jacket, avoiding possible short-circuits while wiring it to the distribution boxes.







DC INSULATING BOOT
