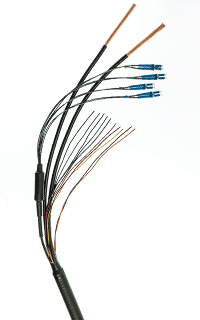

HYBRIFLEX® RRH Hybrid Cable Solution 2x4, 6AWG Low-Inductance, 7/8”, Single-Mode Fiber with DLC Connectors

RFS’ HYBRIFLEX Remote Radio Head (RRH) hybrid feeder cabling solution combines optical fiber and DC power for RRHs in a single lightweight aluminum corrugated cable, making it the world’s most innovative solution for RRH deployments.

This low-inductance version of HYBRIFLEX allows mobile operators deploying an RRH architecture to deploy >400ft sites without the danger of power-cycling their RRHs due to voltage swings, which could occur in some specific instances. It combines bend-insensitive single-mode fiber (4 pairs of DLC connectors), 2 pairs of low-inductance DC wires and 5 pairs of 18AWG wires used to carry alarm signals. The package also includes a special RFS-designed DC insulating boot, used to properly protect and insulate the DC wires after stripping the jacket, avoiding possible short-circuits while wiring it to the distribution boxes. Standard RFS CELLFLEX® accessories can be used with HYBRIFLEX cable.


  • DC Wire Insulator (Patent pending) → Used at the DC wire connection in distribution boxes, prevents potential short circuits
  • Aluminum corrugated armor with outstanding bending characteristics → Minimizes installation time and enables mechanical protection and shielding

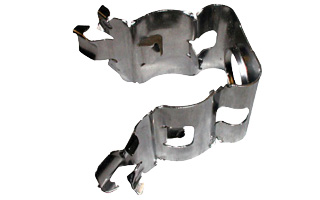

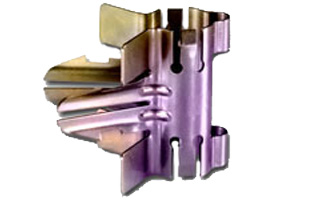

  • Same accessories as 7/8” coaxial cable

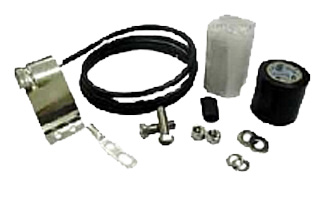

  • Outer conductor grounding → Eliminates typical grounding requirements and saves on installation costs
  • Lightweight solution and compact design → Decreases tower loading
  • Robust cabling → Eliminates need for expensive cable trays and ducts
  • Optical fiber and power cables housed in single corrugated cable → Saves CAPEX by standardizing RRH cable installation and reducing installation requirements
  • Outdoor, flame-retardant jacket → Ensures long-lasting cable protection

Technical features


Cable TypeHYBRIFLEX® Low Inductance
Fire PerformanceFlame Retardant
Lengthm (ft)210.31 (690)

Mechanical Specifications

Outer Diameter Nominal mm (in)28.2 (1.11)
Cable Weight kg/m (lb/ft)1.04 (0.7)
Minimum Bending Radius, Single Bendmm (in)127 (5)
Minimum Bending Radius, Multi Bendsmm (in)254 (10)
Recommended / Maximum Clamp Spacing m (ft)1 / 1.2 (3.25 / 4)

DC Power Cable Specifications

Number of DC Pairs2
Maximum DC-Resistance Power Cable Ω/km (Ω/kft)1.35 (0.411)
Cross Section of Power Cable mm² (AWG)13.3 (6)
DC Wire Jacket MaterialPVC
DC Cable Single Bending Radius mm (in)137 (5.4)
DC Cable Diameter mm (in)9.3 (0.365)
DC Cable JacketPVC
DC Standards (Meets or Exceeds)For use in Type RHC per UL 2882, PVC, RoHS/REACH Compliant

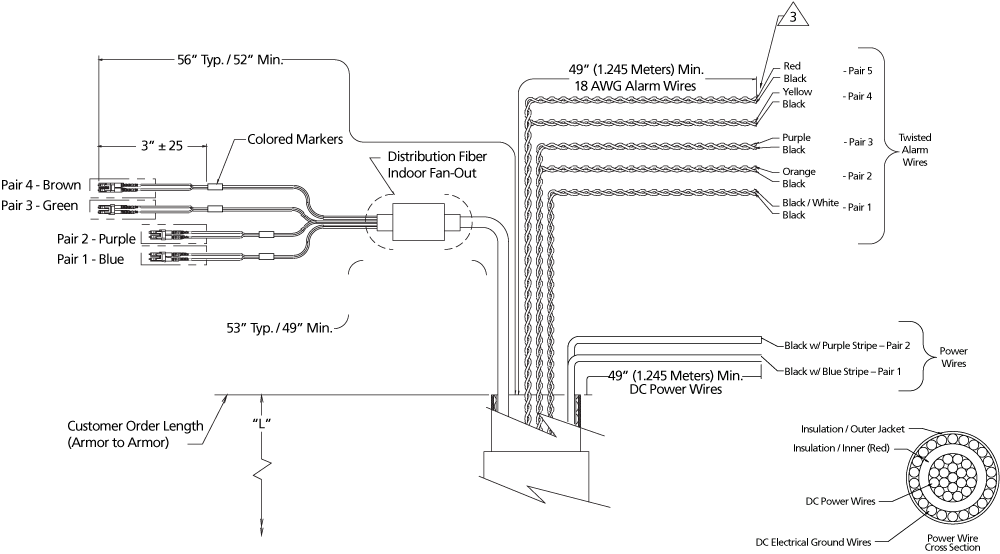

Break-out lengthmm(in)1245 +/-0 (49 +/-0)
DC Cable sealing methodSemi-rigid flame-retarded polyolefin, with hot melt adhesive
Alarm Wire10 (5 standard pairs) @ 0.8 mm2 (18 AWG)

Cable Jacket

UV-Protection Individual and External JacketYes

Armor Specifications

Armor TypeCorrugated Aluminum
Maximum DC-Resistance of Armor Ω/km (Ω/kft)1.05 (0.319)
Diameter Corrugated Armor mm (in)25.2 (0.99)

F/O Cable Specifications

F/O Cable TypeSingle-mode
Number of F/O Pairs4
Core/Clad µm9 /125
Secondary Protection Nominal µm (in)900 ()
Single Bending Radius mm (in)137 (5.4)
F/O Standards (Meets or Exceeds)UL Listed Type OFNR (UL1666), RoHS Compliant
Optical LossdB/Km0.5 @ 1310 nm
0.5 @ 1550 nm
Fiber Termination End 1DLC Connectors
FO Break-out lengthmm(in)1371.6 +/-50.8 (54 +/-2)
Cable sealing methodSemi-rigid flame-retarded polyolefin, with hot melt adhesive

Testing and Environmental

Storage Temperature °C (°F)-40 to 70 (-40 to 158 )
Operation Temperature °C (°F)-40 to 65 (-40 to 149 )
Installation Temperature °C (°F)-20 to 65 (-4 to 149 )
Jacket SpecificationsUL2882 Type RHC, UL Listed
Alarm Wire Standards (Meets or Exceeds)UL Standard 1063, 1581 VW-1, MTW Oil and Gasoline RES1 SUNRES (Cable meets UL requirements), RoHS/REACH Compliant


DC Wire Insulator
