I-ATO5-380/6000
Indoor Omnidirectional Antenna 380-6000 MHz
Rev : A | Rev date : 22 Apr 2024
The omnidirectional antenna I-ATO5-380/6000 is designed for broadband in-building DAS applications supporting all kind of safety as well 4G/5G commercial wireless communication networks and WiFi/WLAN in all bands.
The antenna combines an aesthetical design with superior electrical characteristics notably a PIM optimized design to minimize network interferences.
The antenna is constructed from lightweight materials ideal for easy ceiling mounting. The low profile and off-white radome blends easily into most building aesthetics with minimum visual impact.
FEATURES / BENEFITS
-
Wideband omnidirectional antenna, supporting all wireless services in the frequency bands 380-520 / 698-960/ 1710-6000MHz
-
Aesthetical visual appearance, compact and light weight
-
Indoor distribution of saftey and commercial wireless services
- PIM optimized antenna design (up to 153dBc @2x20W)
- Easy installation, ceiling mounting
I-ATO5-380/6000
General Specifications |
---|
Product Type | | Omnidirectional Antenna | Techn. Application | | Indoor |
|
Mechanical Specifications |
---|
Number of Input Ports | | 1 | Connectors | | N female | Connector Cable | mm (in) | 300 (11.81) | Mounting Hardware included | | Ceiling, via hole | Height (Less Connectors) | mm (in) | 152 (6) | Diameter (Less Connectors) | mm (in) | 298 (11.7) | Weight | kg (lb) | 0.9 (1.98) |
|
Electrical Specifications |
Frequenz |
MHz |
380-520 |
698-960 |
1710-6000 |
Gain |
dBi |
2.0 ± 1.0 |
2.5 ± 1.0 |
4.0 ± 1.0 |

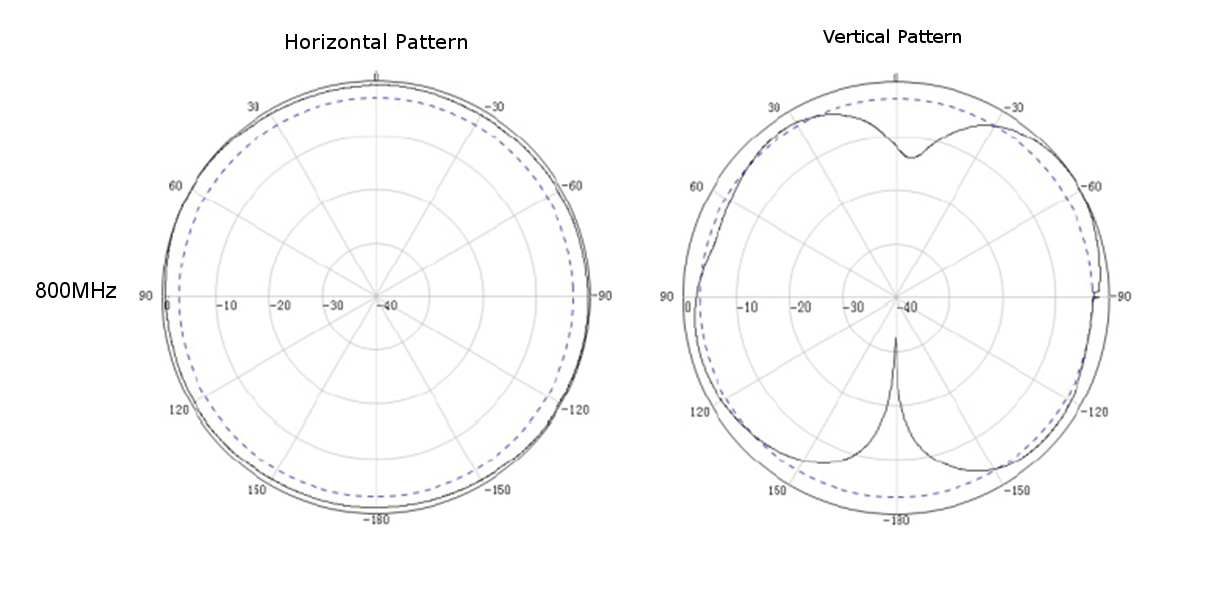

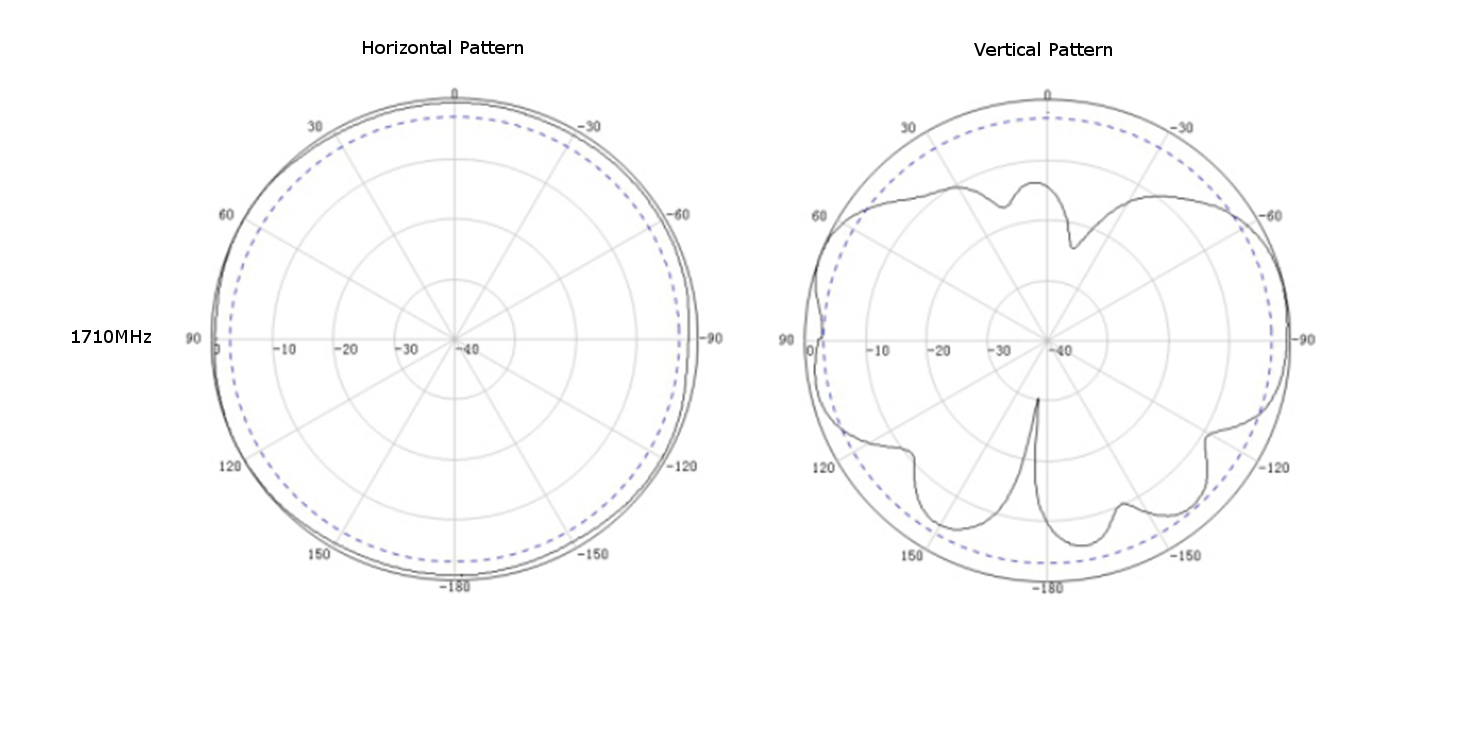

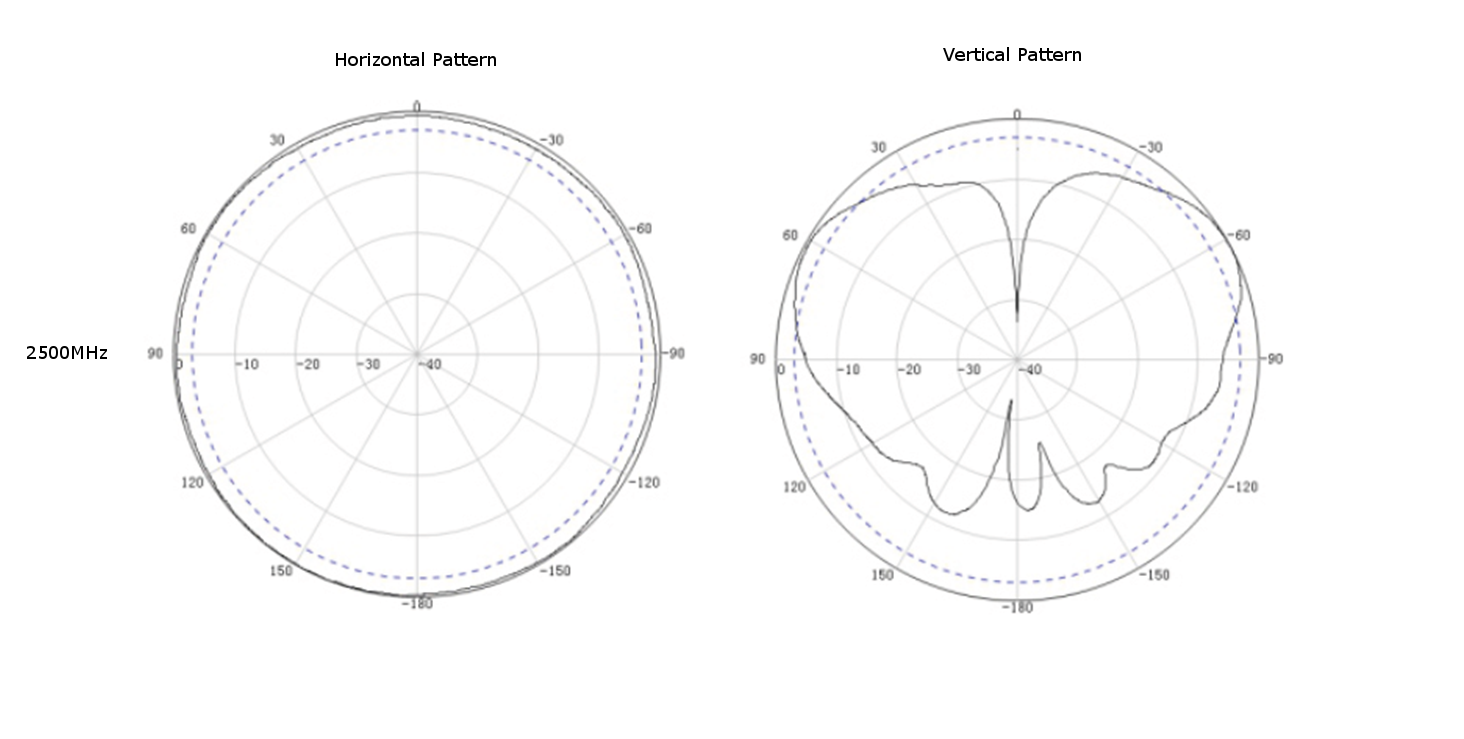

Beamwidth, vertical, typ. |
° |
90 |
90 |
35 |
VSWR |
2.5 |
2.0 |
2.0 |
Intermodulation (IM3) (2x20W) |
dBc |
/ |
153dBc |
153dBc |
Impedance, Ohm | Ω | 50 | Polarization | | Vertical | Total Input Power max. | W | 50 |
|
Material |
---|
Radome Material | | ABS | Radome Color | | White ( RAL 9003 ) |
|
Temperature Specifications |
---|
Operation Temperature | °C (°F) | -40 to 55 (-40 to 131 ) |
|
Testing and Environmental |
---|
Environmental Class | | Indoor |
|
