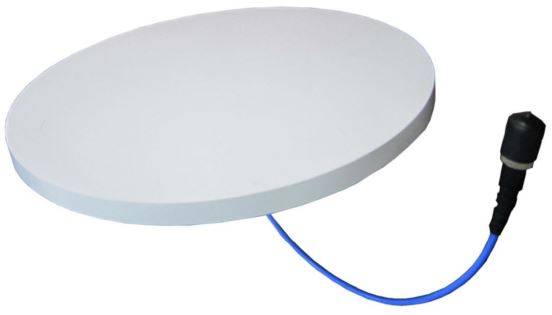

I-ATO5-43-617/6000
Indoor Omnidirectional Antenna 617-6000 MHz

Rev : D | Rev date : 21 Feb 2024

The omnidirectional antenna I-ATO5-617/6000 is designed for broadband in-building DAS applications supporting public safety, 4G/5G commercial wireless communication networks and WiFi/WLAN in all bands.
The antenna combines an aesthetical design with superior electrical characteristics notably a PIM optimized design to minimize network interferences. The antenna is constructed from lightweight materials ideal for easy ceiling mounting. The low profile and off-white radome blends easily into most building aesthetics with minimum visual impact.

FEATURES / BENEFITS

Wideband omnidirectional antenna, supporting all wireless services in the frequency bands 617-806 / 806-960 / 1350-1550 / 1690-2700 / 3300-3800 / 4900-6000MHz
Aesthetical visual appearance, compact and light weight
Indoor distribution of public safety, commercial wireless services and WiFi/WLAN
PIM optimized antenna design (up to 153dBc @2x20W)
Easy installation, ceiling mounting

I-ATO5-43-617/6000

Technical features

General Specifications
Product Type		Omnidirectional Antenna
Techn. Application		Indoor

Mechanical Specifications
Number of Input Ports		1
Connectors		4.3-10 female
Connector Cable	mm (in)	300 (11.81)
Mounting Hardware included		Ceiling, via hole
Height (Less Connectors)	mm (in)	18 (0.71)
Diameter (Less Connectors)	mm (in)	220 (8.66)
Weight	kg (lb)	0.3 (0.66)

Electrical Specifications
Frequenz	MHz	617-806	806-960	1350-1550	1690-2700	3300-3800	4900-6000
Gain	dBi	1.5±0.5	2.2±0.5	3.5±0.5	4.5±1.0	6.0±1.0	6.0±1.0
VSWR	max	1.8	1.8	1.8	1.8	1.8	1.8
Intermodulation (IM3) (2x20W)	dBc	≤-153dBc	≤-153dBc	≤-153dBc	≤-153dBc	≤-153dBc	≤-153dBc
Impedance, Ohm	Ω	50
Polarization		Horizontal
Total Input Power max.	W	100
