I-ATO5-43-698/4000
Indoor Omnidirectional Antenna 698-4000 MHz
Rev : B | Rev date : 28 Jul 2021
The omnidirectional antenna I-ATO5-43-698/4000 is designed for broadband in-building DAS applications supporting all kind of safety as well as 4G and 5G commercial wireless communication networks. The antenna combines an aesthetical design with superior electrical characteristics notably a PIM optimized design to minimize network interferences. The antenna is constructed from lightweight materials ideal for easy ceiling mounting. The low profile and off-white radome blends easily into most building aesthetics with minimum visual impact.
FEATURES / BENEFITS
-
Wideband omni antenna, supporting all wireless services in the frequency bands 698-960MHz / 1350-1710MHz / 1710-2700MHz / 3400-4000MHz
- Typically used in indoor distribution of 2G/3G/4G/5G wireless services in all standardized frequency bands
- PIM optimized antenna design (-153dBc @2x20W)
-
Aesthetical visual appearance, compact and light weight
-
Low return loss, stable performance
-
Pigtail with 4.3-10 female connector
-
Ceiling mounting
I-ATO5-43-698/4000
General Specifications |
|---|
| Product Type | | Omnidirectional Antenna | | Techn. Application | | Indoor |
|
Mechanical Specifications |
|---|
| Number of Input Ports | | 1 | | Connectors | | 4.3-10 female | | Connector Cable | mm (in) | 300 (11.81) | | Mounting Hardware included | | mountig clamp | | Height (Less Connectors) | mm (in) | 18 (0.709) | | Diameter (Less Connectors) | mm (in) | 220 (8.66) | | Width (Less Connectors) | mm (in) | 4.3 () | | Length (Less Connectors) | mm (in) | 4.3 () | | Weight | kg (lb) | 0.3 (0.66) |
|

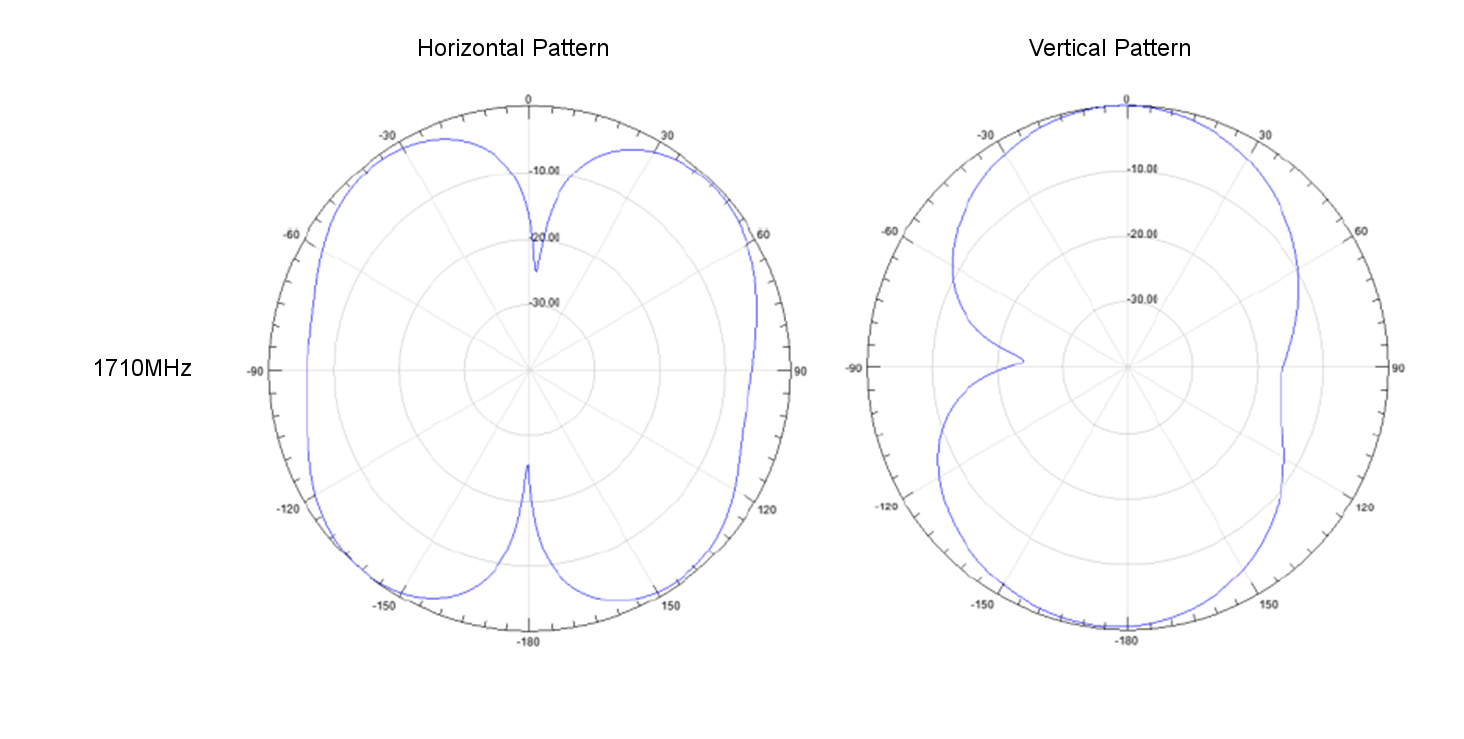

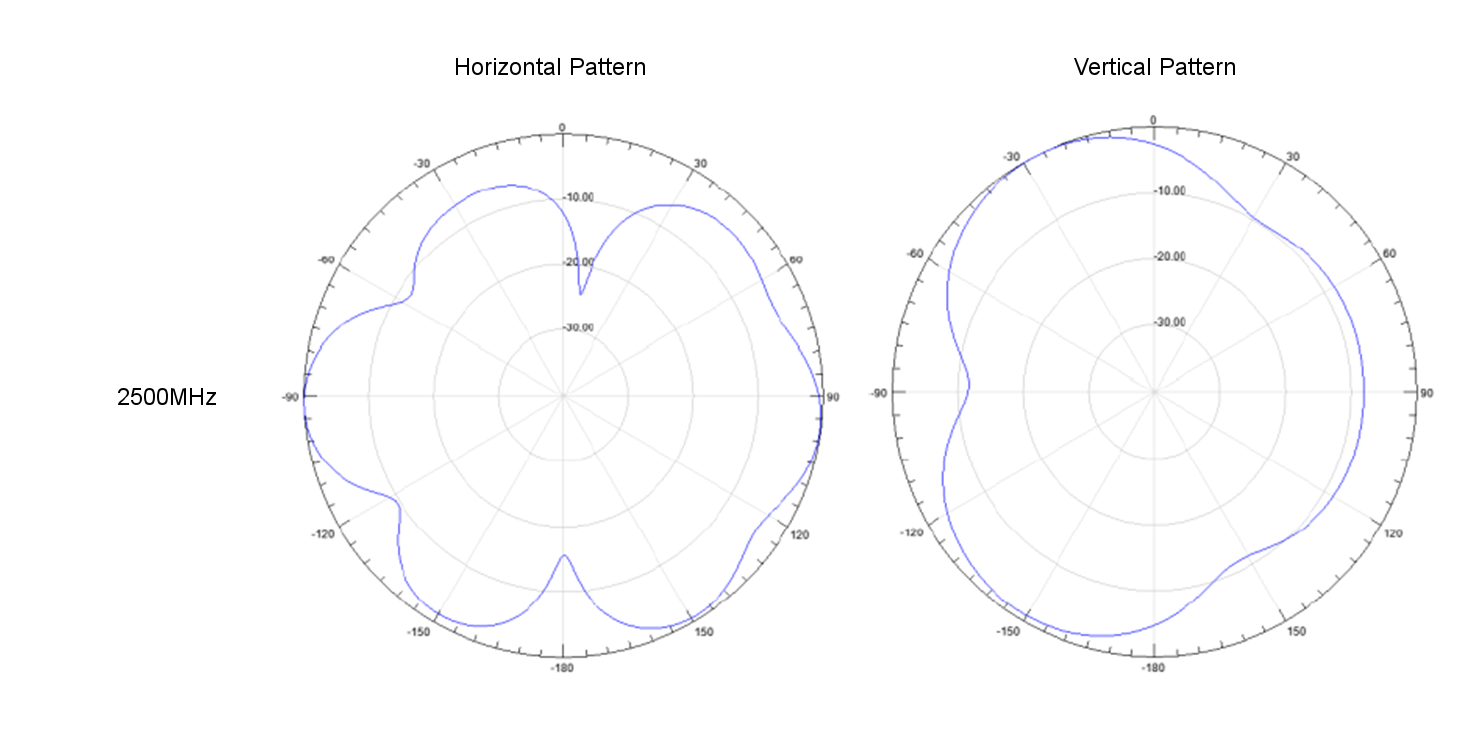

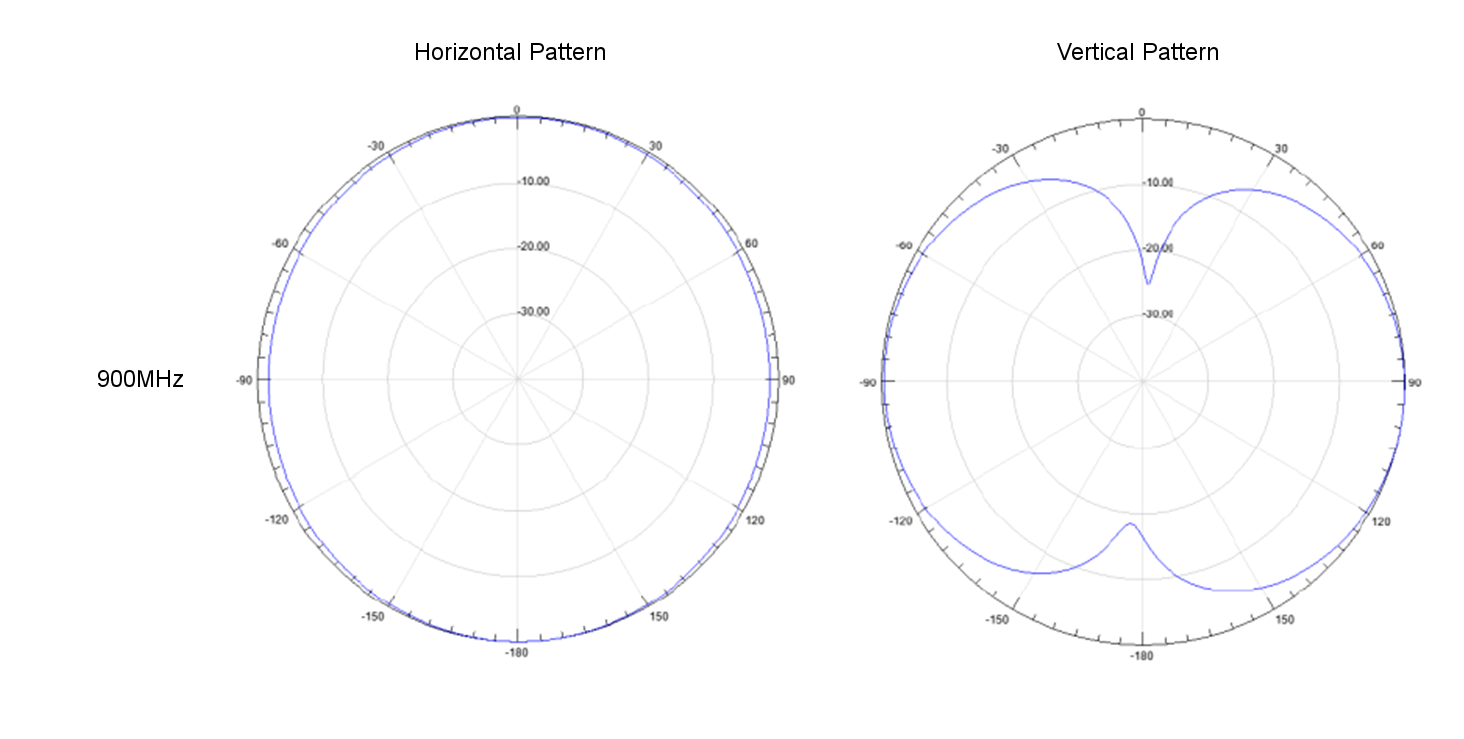

Electrical Specifications |
|---|
| Frequenz |
MHz |
698-806 |
806-960 |
1350-1710 |
1710-2700 |
3400-4000 |
| Gain, typ |
dBi |
2.2 |
3.5 |
4.0 |
4.5 |
6.0 |
| VSWR |
max |
1.5 |
1.5 |
1.8 |
1.5 |
1.5 |
| Impedance, Ohm | Ω | 50 | | Polarization | | Horizontal | | Intermodulation (IM3) | | -153 dBc | | Total Input Power max. | W | 50 |
|
Material |
|---|
| Radome Material | | ABS | | Radome Color | | White ( RAL 9003 ) |
|
Temperature Specifications |
|---|
| Operation Temperature | °C (°F) | -40 to 55 (-40 to 131 ) |
|
Testing and Environmental |
|---|
| Environmental Class | | IP65 |
|
