I-ATP5-43-617/3800M4

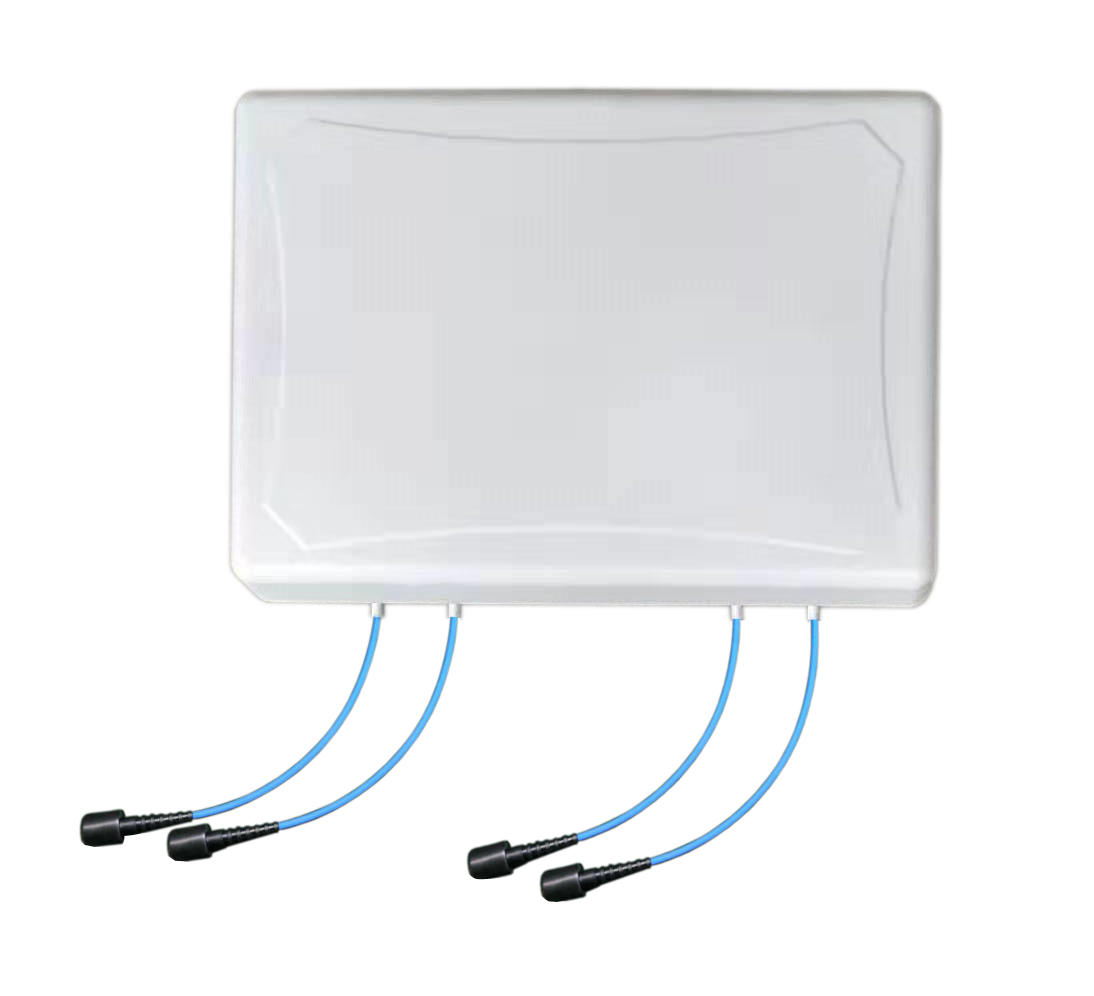

Indoor Panel 4x4 MIMO Antenna 617-3800 MHz
Rev : A | Rev date : 19 Jun 2024
The panel antenna I-ATP5-43-617/3800M4 is designed for broadband in-building DAS applications supporting all kind of safety as well as 4G and 5G commercial wireless communication networks.
The antenna combines an aesthetical design with superior electrical characteristics notably a PIM optimized design to minimize network interferences. The antenna is constructed from lightweight materials ideal for easy ceiling mounting. The low profile and off-white radome blends easily into most building aesthetics with minimum visual impact.
FEATURES / BENEFITS
-
Wideband panel antenna supporting the frequency bands 617-960/1710-2700 / 3300-3800MHz
-
Typically used in indoor distribution of 2G/3G/4G/5G wireless services in all standardized frequency bands
- Low return loss, High gain, Stable performance.
-
PIM optimized antenna design (-153dBc @2x20W)
-
Aesthetical visual appearance, compact and light weight
-
Pigtail with 4.3-10 female connector
-
Ideal for 4G LTE multi-band 4x4 MIMO applications
I-ATP5-43-617/3800M4
General Specifications |
|---|
| Product Type | | Panel Antenna | | Techn. Application | | Indoor |
|
Mechanical Specifications |
|---|
| Number of Input Ports | | 4 | | Connectors | | 4.3-10 female | | Mounting Hardware included | | On-wall | | Height (Less Connectors) | mm (in) | 100 (3.937) | | Width (Less Connectors) | mm (in) | 310 (12.205) | | Length (Less Connectors) | mm (in) | 420 (16.5) | | Weight | kg (lb) | 2.65 (5.842) |
|
Electrical Specifications |
|---|
| Frequency |
MHz |
617 - 698 |
698-960 |
1710-2700 |
3300-3800 |
| Gain, typ. |
dBi |
5.5±1 |
6±1 |
7±1 |
6±1 |
| VSWR |
max |
≤2.0 |
≤2.0 |
≤2.0 |
≤2.0 |

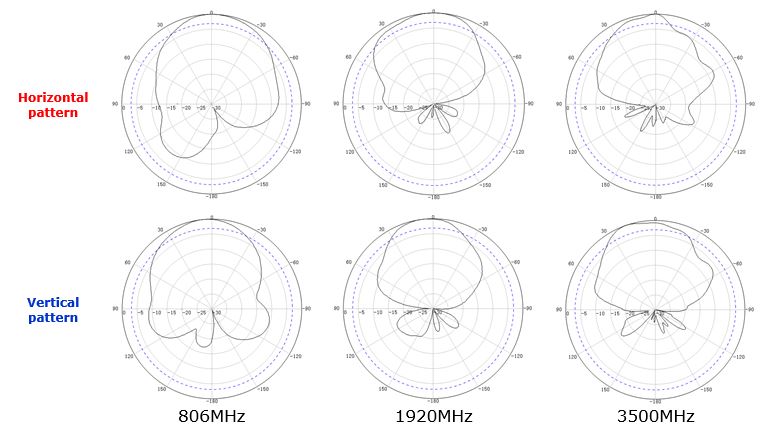

| Beam width, Vertical, typ. |
° |
70 |
70 |
68 |
50 |
| Beam width, Horizontal, typ. |
° |
80 |
70 |
68 |
55 |
| Isolation |
dB |
>15 |
>15 |
>20 |
>20 |
| Front-To-Back Ratio |
dB |
5 |
5 |
10 |
8 |
| Impedance, Ohm | Ω | 50 | | Polarization | | 2x ± 45deg | | Intermodulation (IM3) | | - 153dBc with 2 x 20W | | Total Input Power max. | W | 50 |
|
Material |
|---|
| Radome Material | | ABS | | Radome Color | | White (RAL 9003) |
|
Temperature Specifications |
|---|
| Operation Temperature | °C (°F) | -55 to 60 (-67 to 140 ) |
|
Testing and Environmental |
|---|
| Environmental Class | | Indoor |
|
