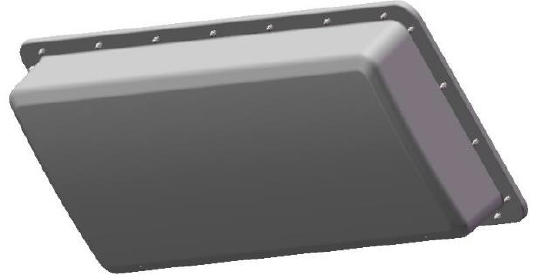

I-ATPS6-43-698/3800M-2260
High Capacity Venue Panel MIMO Antenna 698-3800 MHz

The high capacity venue MIMO antenna I-ATPS6-43-698/3800M-2260 is designed for broadband DAS applications supporting all kind of safety as well as 4G and 5G commercial wireless communication networks.

The antenna is specifically optimized for stadium applications to allow for capacity optimized desings with a minimum of interferences between individual sectors.

The antenna combines an aesthetical design with superior electrical characteristics notably a PIM optimized design to minimize network interferences. The antenna is constructed from lightweight materials ideal for easy ceiling mounting. The low profile and off-white radome blends easily into most building aesthetics with minimum visual impact.

FEATURES / BENEFITS

  • Wideband panel antenna supporting the frequency bands 698-960MHz /1695-2700MHz / 3300-3800MHz
  • Ideally suited for high capacity venues as stadiums
  • Indoor distribution of 2G/3G/4G/5G wireless networks ideally combined with multi-band MIMO
  • High level of side lobe suppression minimizing interferences between sectors
  • PIM optimized antenna design (-153dBc @2x20W)
  • Low sidelobes
  • Consisten pattern over the full spectrum
  • Aesthetical visual appearance, compact and light weight
  • 4.3-10 female connector


I-ATPS6-43-698/3800M-2260

Technical features

General Specifications

Product TypeHigh Capacity Venue MIMO Antenna
Techn. ApplicationIndoor

Mechanical Specifications

Number of Input Ports2
Connectors4.3-10 female
Mounting Hardware includedMounting Bracket
Height (Less Connectors) mm (in)120 (4.7)
Width (Less Connectors) mm (in)425 (16.7)
Length (Less Connectors) mm (in)970 (38.2)
Weight kg (lb)10.5 (23)

Electrical Specifications

Frequency MHz 698 - 800 800 - 960 1695 - 2180 2180 - 2700 3300 - 3800
Gain, typ. dBi 11.5 12.5 12.0 13.0 13.0
VSWR / Return Loss max 1.7 / 11.7 1.7 / 11.7 1.7 / 11.7 1.7 / 11.7 1.7 / 11.7
Beamwidth, Vertical, typ. ° 68 65 68 64 65
Beamwidth, Horizontal, typ. ° 25.5 22 24 20 21
Isolation dB 24 24 23 23 24
Front-to-Back Ratio dB 25 25 28 28 28
Horizontal sidelobe dB 16 16 16 16 16
Maximum Input Power W 200 200 200 200 100
Impedance, OhmΩ50
Polarization+/- 45°
Intermodulation (IM3)- 153dBc with 2 x 20W

Material

Radome MaterialABS, ASA, UV resistant
Radome ColorWhite

Temperature Specifications

Operation Temperature °C (°F)-40 to 70 (-40 to 158 )

Testing and Environmental

Environmental ClassIP65
