MBHT07-6-F

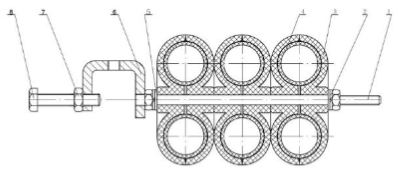

Multi-block hanger with three layer, with angle member adapter

Rev : A | Rev date : 25 Jul 2019

Multi block hanger support systems are designed for organizing bundled runs of coax cable and trunk cable.

Each space-saving block securely holds two runs of cables, allowing a compact bundle of up to 6x runs to be supported by stacking three blocks.

FEATURES / BENEFITS

Multi Blocks are manufactured of polypropylene providing thermal, chemical and UV resistance in all environments.

They come including angle member adapter and necessary hardware.

The angle member adapter fastens the clamp to the tower without drilling.

The angle member adapter includes a tower member set screw.

The hanger mounting rod may be located in either of two mounting holes, depending on orientation of the fixing member.

Compliant to RoHS (EU 2002/95/EC) and CRoHS (China SJ/T11363-2006) i.e. usable on a global basis.


External Document Links

Notes

Technical features

General Specifications

Product LineHybrid Cable Accessories
Product TypeHanger
Hanger TypeMulti-block
Transmission Line TypeF/O cable fixation LCF12 clamp with rubber inlet
ColorBlack

Mechanical Specifications

Cable Size 1/2
Number of Cable / Waveguide Runs2 per layer, 3 layers, 6 runs
ConfigurationIncl. Angle member adapter
MaterialMetal parts:
-Connecting devices:Stainless steel
-Angle member adapter: Stainless steel
-Plastic parts: Polypropylene
Length mm (in)162 (6.38)
Height mm (in)50 (1.96)
Width mm (in)50 (1.96)
Recommended / Maximum Clamp Spacing m (ft)1 / 1.2 (3.25 / 4)

Temperature Specifications

Operation Temperature °C (°F)-40 to 85 (-58 to 185 )
Storage Temperature °C (°F)-40 to 85 (-58 to 185 )

Packaging Information

Weight per piece kg (lb)0.18 (0.4)
