Omni-Directional Cross Polarized 14 Port Antenna, 694-960/694-960/1695-2690/1695-2690/3300-4200/3300-4200/5150-5925 MHz, 360 deg, 3.8/3.8/10.0/10.1/6.8/6.9/5.9 dBi, 0.6m (2ft), Fixed Electrical T0



FEATURES / BENEFITS

This antenna provides a 14 port Omni-Directional platform for advanced use in encompassing low band 700MHz and 800MHz deployment scenarios and high band AWS, PCS, BRS, CBRS, C-Band, and LAA in a high quality package design built to withstand harsh environments.


  • Expanded 3.3 - 4.2 GHz range covers CBRS and full C-Band



  • x4 MIMO on 700/800/900
  • x4 MIMO on AWS/PCS/BRS
  • x4 MIMO on CBRS/C-Band
  • x2 MIMO  on LAA
  • Clover Omni-Pattern Performance
  • Quick and Easy Installation






Technical features

Electrical Specifications - 01

Electrical Specification Header 1LOW BAND BOTTOM ARRAY (694-960 MHZ) [R1]
Frequency Range MHz 694-806 806-894 880-960
Gain Typical dBi 2.7 3.3 3.8
Gain Over all Tilts dBi 2.2+/-0.5 2.8+/-0.5 3+/-0.8
Horizontal Beamwidth deg 360
Vertical Beamwidth deg 94.5+/-24.1 91.3+/-16.6 79.7+/-8.2
Electrical Downtilt deg
Cross Polar Isolation Between Ports dB 25
VSWR 1.5:1
3rd Order IMP 2 x 43dBm dB - 153
Maximum Power Input Watts 50

Electrical Specifications - 02

Electrical Specification Header 2LOW BAND TOP ARRAY (694-960 MHZ) [R2]
Frequency Range MHz 694-806 806-894 880-960
Gain Typical dBi 3.6 3.6 3.8
Gain Over All Tilts dBi 2.8+/-0.8 2.9+/-0.7 2.8+/-1
Horizontal Beamwidth deg 360
Vertical Beamwidth deg 69+/-17.6 69.6+/-19.9 83.2+/-16.3
Electrical Downtilt deg
Cross Polar Isolation Between Ports dB 25
VSWR 1.5:1
3rd Order IMP 2 x 43dBm dB - 153
Maximum Power Input Watts 50

Electrical Specifications - 03

Electrical Specification Header 3MID BAND LEFT ARRAY (1695-2690 MHZ) [Y1]
Frequency Range MHz 1695-1880 1850-1990 1920-2200 2300-2496 2496-2690
Gain Typical dBi 7.8 8.0 8.5 9.0 10.0
Gain Over All tilts dBi 7.3+/-0.5 7.5+/-0.5 8+/-0.5 8.2+/-0.8 9.1+/-0.9
Horizontal Beamwidth deg 360
Vertical Beamwidth deg 19.8+/-3.1 18+/-1 17.3+/-1.7 15.4+/-1 13.9+/-0.7
Electrical Downtilt deg
Cross Polar Isolation Between Ports dB 25
VSWR 1.5:1
3rd Order IMP 2 x 43dBm dB - 153
Maximum Power Input Watts 50

Electrical Specifications - 04

Electrical Specification Header 4MID BAND RIGHT ARRAY (1695-2690 MHZ) [Y2]
Frequency Range MHz 1695-1880 1850-1990 1920-2200 2300-2496 2496-2690
Gain Typical dBi 7.5 8.0 8.6 8.6 10.1
Gain Over All Tilts dBi 7.3+/-0.2 7.5+/-0.5 8+/-0.6 8.1+/-0.5 9.1+/-1
Horizontal Beamwidth deg 360
Vertical Beamwidth deg 20.3+/-1.5 18.4+/-0.8 17.5+/-1.5 15.2+/-1.8 13.7+/-1.7
Electrical Downtilt deg
Cross Polar Isolation Between Ports dB 25
VSWR 1.5:1
3rd Order IMP 2 x 43dBm dB - 153
Maximum Power Input Watts 50

Electrical Specifications - 07

Electrical Specification Header 7HIGH BAND LEFT ARRAY (3300-4200) [P1]
Frequency Range MHz 3300-3400 3400-3700 3700-4000 4000-4200
Gain Typical dBi 6.5 6.7 6.8 6.7
Gain Over All Tilts dBi 6+/-0.5 6.1+/-0.6 6+/-0.8 6.1+/-0.6
Max Gain dBi 6.6 6.9 7.2 6.7
Min Gain dBi 5.4 5.3 5.3 5.3
Horizontal Beamwidth deg 360
Vertical Beamwidth deg 34.1+/-3.5 33.2+/-3.2 29.5+/-3 27.2+/-4.4
Electrical Downtilt deg
Cross Polar Isolation Between Ports dB 25
VSWR 1.5:1 1.4:1 1.5:1 1.5:1
3rd Order IMP 2 x 43dBm dBc / -153 / /
Maximum Power Input Watts 50

Electrical Specifications - 08

Electrical Specification Header 8HIGH BAND RIGHT ARRAY (3300-4200) [P2]
Frequency Range MHz 3300-3400 3400-3700 3700-4000 4000-4200
Gain Typical dBi 6.9 7.2 6.6 6.6
Gain Over All Tilts dBi 6.4+/-0.5 6.5+/-0.7 6+/-0.6 6.1+/-0.5
Max Gain dBi 6.9 7.4 6.9 6.9
Min Gain dBi 5.8 5.4 5.1 5.7
Horizontal Beamwidth deg 360
Vertical Beamwidth deg 33.7+/-3.3 32+/-2.7 30+/-3.7 27.4+/-3.8
Electrical Downtilt deg
Cross Polar Isolation Between Ports dB 25
VSWR 1.5:1 1.4:1 1.5:1 1.5:1
3rd Order IMP 2 x 43dBm dBc / -153 / /
Maximum Power Input Watts 50

Electrical Specifications - 09

Electrical Specification Header 9HIGH BAND ARRAY (5150-5925) [O1]
Frequency Range MHz 5150-5925
Gain Typical dBi 5.9
Gain Over All Tilts dBi 4.6+/-1.3
Horizontal Beamwidth deg 360
Vertical Beamwidth deg 24.1+/-3.4
Electrical Downtilt deg
Cross Polar Isolation Between Ports dB 25
VSWR 1.4:1
3rd Order IMP 2 x 43dBm dB /
Maximum Power Input Watts 5

Electrical Specifications - 11

Electrical Specification Header 115 GHz FCC Power Requirements
U-NII Band - U-NII 1 U-NII 2A U-NII 2C U-NII 3
Frequency MHz 5150-5250 5250-5350 5470-5725 5725-5850
Max Input Power per port to align with FCC Title 47 Part 15 Watts 0.5 0.125 0.125 0.5

Electrical Specifications

ImpedanceOhm50
PolarizationDeg±45°

Mechanical Specifications

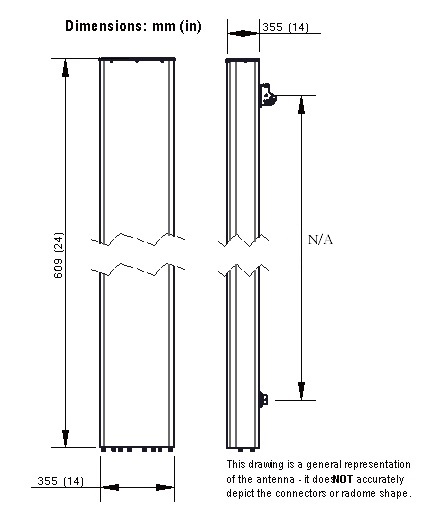

Dimensions - H x W x Dmm (in)609 x 355 x 355 (24 x 14 x 14)
Weight (Antenna Only)kg (lb)11.3 (24.9)
Weight (Mounting Hardware only)kg (lb)6 (13.2)
Packing size- HxWxDmm (in)900 x 475 x 460 (35.4 x 18.7 x 18.1)
Shipping Weightkg (lb)21 (46.3)
Connector type14 x 4.3-10 Long Neck Female/Bottom
Radome Material / ColorASA / Light Grey RAL7035

Testing and Environmental

Temperature Range °C (°F)-40 to 60 (-40 to 140 )
Lightning protectionDirect Ground
Survival/Rated Wind Velocitykm/h240 (150 )
Wind Load @Rated Wind FrontN170
Wind Load @Rated Wind SideN170
Wind Load @Rated Wind RearN170
Survival wind Velocity km/h240

Ordering Information

Model Number Configuration Mounting Hardware Mounting pipe Diameter Shipping Weight
O-BBLLYYZ06-01 Omni-Directional Canister Pole Top Bracket (Quantity 1 Included) 60-120mm (2.36-4.72 in) 21kg (46.3lbs)

Internal Component 1

Temperature Range °C(°F)-40 to 60 (-40 to 140 )
Lightning ProtectionDirect Ground
Application StandardWireless Communication

Internal Component 2

Temperature Range °C(°F)-40 to 60 (-40 to 140 )
Lightning ProtectionDirect Ground
Application StandardWireless Communication

Notes

  • All electrical parameters are compliant with BASTA NGMN 11.1 requirements.
  • For additional mounting information please click ""External Document Links"".
