PDS2-43-694/3800
2 Way Power Divider

Rev : B | Rev date : 08 Apr 2020

RFS PDS*-43 series Power Splitters have been designed for a variety of wireless applications in the frequency band from 694 to 3800MHz. The units evenly split and distribute wireless signals with minimal reflections or loss. The broad frequency range and outstanding PIM rating is ideally suited for multi-band distributed antenna systems or in combination with RADIAFLEX® radiating cables.

FEATURES / BENEFITS

  • 4.3-10-female interfaces
  • PIM optimized design (160dBc @ 2x43dBm)
  • Ideal for all kind of DAS applications
  • Low insertion loss
  • High power handling
  • Small size, Low weight


Technical features

Structure

Product TypePower Divider
Techn. ApplicationIndoor
Number of Input Ports1
Number of Output Ports2
Connectors4.3-10 female

Electrical Specifications

Frequency Range MHz694 - 3800
Impedance Ohm50
Max. VSWR / Return Loss, dBVSWR/dB1.3 / 17.7
Split Loss dB3.2
Max Rippel dB0.3
Intermodulation (IM3)-160dBc (2x43dBm)
Total Input Power W400

Temperature Specifications

Temperature Range °C (°F)-25 to +65 (-13 to +149)

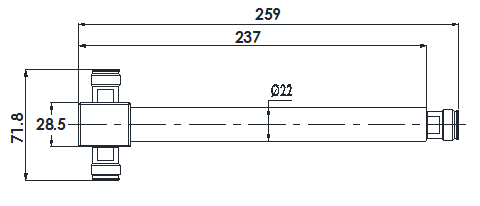

Mechanical Specifications

Height (Less Connectors) mm (in)28.5 (1.12)
Width (Less Connectors) mm (in)71.8 (2.83)
Length (Less Connectors) mm (in)259 (10.2)

Testing and Environmental

Environmental ClassIP65

External Document Links

Notes

  • Mounting Hardware not included
