PPIF-0Z12SP-OS-YC
Patch Panel Chassis for Splicing

Rev : A | Rev date : 07 Nov 2022

The HYBRIFLEX™ Patch panel chassis for up to four MTP interface modules. Designed to be mounted in a 19" rack this unit occupies 1U of rack height. Patch cord management is also included, allowing the full density of the patching field (96 fibers in 1U) to be achieved. Patch cords are routed horizontally within the same 1U of rack height. Pre-terminated MTP backbone cables are connected to the interface modules through the rear of the unit. In this Patch Panel you can Splice up to 24 fiber.

FEATURES / BENEFITS

• Suitable for mounting within industry standard 19" racks

• Splicing possibility for up to 24 fiber

• Integrated patch cord management is achieved within the same 1U or rack height, optimising the use of rack space






Technical features

General Specifications

Product LineFiber and Power Solutions
Product TypeHybriflex

Mechanical Specifications

MaterialCoated cold-rolled steel

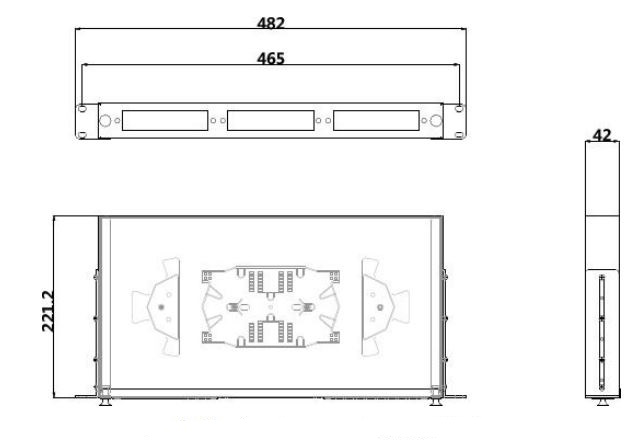

Dimensions (LxWxD) mm (in)482 x 221.2 x 42 (18.98 x 8.71 x 1.65)
Heigth Unit1 U
Rack Mounting19"Rack

Testing and Environmental

Storage Temperature °C (°F)-30 to 55 (-22 to 131 )
Operation Temperature °C (°F)-5 to 40 (-23 to 104 )
Installation Temperature °C (°F)-5 to 50 (-23 to 104 )
Sealing ClassIP20 (frontal)
Storage Humitity≤ 90% (+30 °C)
Operating Humidity≤ 93%(+40°C)
