RCF158-50JFLA
1-5/8" RADIAFLEX® RCF Cable, A-series
Rev : B | Rev date : 28 Apr 2021
- RADIAFLEX® functions as a distributed antenna to provide communications in tunnels, mines and large building complexes and is the solution for any application in confined areas.
- Slots in the copper outer conductor allow a controlled portion of the internal RF energy to be radiated into the surrounding environment. Conversely, a signal transmitted near the cable will couple into the slots and be carried along the cable length.
- RADIAFLEX® is used for both one-way and two-way communication systems and because of its broadband capability, a single radiating cable can handle multiple communication systems simultaneously.

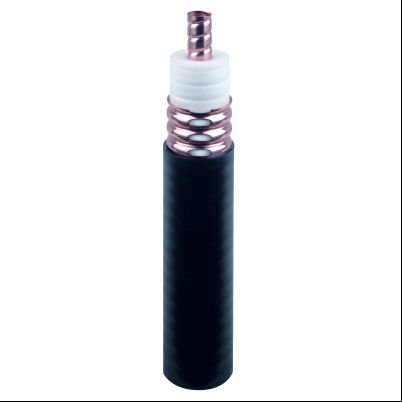

- This RADIAFLEX® radiating cable utilize a low-loss cellular polyethylene foam dielectric and a corrugated copper outer conductor which offers a combination of remarkable flexibility, high strength and excellent electrical performance.
FEATURES / BENEFITS
- Broadband radiating cable supporting all wireless application between 30 MHz to 2750 MHz
- Ideally suited for application that require low bending radii
- Robust radiating cable operational under all enviromental conditions as e.g. harsh tunnels or mines
RCF cable, A-series
General Specifications |
|---|
| Size | | 1-5/8 |
|
Electrical Specifications |
|---|
| Max. Operating Frequency | MHz | 2750 | | Cable Type | | RCF | | Impedance | Ohm | 50 +/- 2 | | Velocity, percent | % | 89 | | Capacitance | pF/m (pF/ft) | 75 (22.9) | | Inductance, uH/m (uH/ft) | µH/m (µH/ft) | 0.188 (0.057) | | DC-resistance inner conductor, ohm/km (ohm/1000ft) | Ω/km (Ω/1000ft) | 1.26 (0.38) | | DC-resistance outer conductor, ohm/km (ohm/1000ft) | Ω/km (Ω/1000ft) | 0.55 (0.17) | | Stop bands | MHz | None | | Frequency Selection | MHz | 600, 900, 1800/1900, 2200, 2400, 2500, 2700 |
|
Mechanical Specifications |
|---|
| Jacket | | JFL | | Jacket Color | | Standard Black, other colors on request | | Jacket Description | | Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss | | Slot Design | | Milled (Two-Row) | | Inner Conductor Material | | Corrugated Copper Tube | | Outer Conductor Material | | Corrugated Copper Tube | | Diameter Inner Conductor | mm (in) | 17.6 (0.69) | | Diameter Outer Conductor | mm (in) | 46.5 (1.83) | | Diameter over Jacket Nominal | mm (in) | 50.3 (1.98) | | Minimum Bending Radius, Single Bend | mm (in) | 500 (19.7) | | Cable Weight | kg/m (lb/ft) | 1.3 (0.87) | | Tensile Force | N (lb) | 1080 (238) | | Indication of Slot Alignment | | None | | Recommended / Maximum Clamp Spacing | m (ft) | 1.2 (4) | | Minimum Distance to Wall | mm (in) | 50 (1.97) |
|
Testing and Environmental |
|---|
| Jacket Testing Methods | | Test methods for fire behaviour of cable :
IEC 60754-1/-2 smoke emission: halogen free, non corrosive
IEC 61034 low smoke
IEC 60332-1 flame retardant
IEC 60332-3-24 fire retardant
NFPA-130 |
|
Temperature Specifications |
|---|
| Storage Temperature | °C(°F) | -70 to 85 (-94 to 185 ) | | Installation Temperature | °C(°F) | -25 to 60 (-13 to 140 ) | | Operation Temperature | °C(°F) | -40 to 85 (-40 to 185 ) |
|
Attenuation and Power Rating |
|---|
| Frequency, MHz | Longitudinal Loss, dB/100 m (dB/100 ft) | Coupling Loss 50%, dB | Coupling Loss 95%, dB |
| 75 |
0.59 (0.18) |
62 |
74 |
| 150 |
0.86 (0.26) |
70 |
80 |
| 450 |
1.60 (0.49) |
83 |
93 |
| 800 |
2.25 (0.69) |
84 |
94 |
| 870 |
2.37 (0.72) |
82 |
92 |
| 900 |
2.42 (0.74) |
82 |
92 |
| 960 |
2.51 (0.77) |
82 |
92 |
| 1800 |
3.80 (1.16) |
81 |
91 |
| 1900 |
3.94 (1.20) |
80 |
90 |
| 2000 |
4.08 (1.24) |
80 |
90 |
| 2200 |
4.36 (1.33) |
80 |
90 |
| 2400 |
4.65 (1.42) |
80 |
90 |
| 2600 |
4.92 (1.50) |
80 |
90 |
|
Notes
- Coupling loss as well as longitudinal attenuation of RADIAFLEX® cables are measured by the free space method according to IEC 61196-4.
- Coupling loss values are average values of all three spatial orientations (radial, parallel and orthogonal) of dipole antenna.
- Coupling loss values are given with a tolerance of +10 dB and longitudinal loss values with a tolerance of +5%. Note: Measured values below nominal are better. They are not limited by any tolerance-range.
- As with any radiating cable, the performance in building or tunnel environments may deviate from figures based on free space method.
