SerenityLine Antenna, Super High Performance, Single Polarized, 3ft

Rev : P2 | Rev date : 18 Dec 2020
RFS Class 4 and advanced Class 3 antennas are designed to provide the market’s best RF performance and allow mobile operators to deploy new microwave links even in ultra-dense areas where high levels of interference are present.

  • Available from 6 to 42 GHz frequency in both single (SL) and dual polarization (SLX) versions
  • Support for winds up to 250 km/h (155 mph) and even 320 km/h (195 mph) for 0.3m antennas diameter
  • An optional sway bar for antennas 1 m (3ft) and larger is available


  • Increase link capacity of the network
    Improved radiation patterns for ETSI Class 4 providing better performance
    Less interference and higher carrier-to-interference ratio
    Allows radios to operate at higher modulation levels
  • Minimize the total cost of ownership
    Improved network efficiency
    Facilitates better re-use of a frequency channel
    Small antennas with better link throughput reduces tower leasing fees
  • Easy to install
    Very low weight
    Compact mounting system
    Lower cost of installation
  • In-field upgrades – flexible feed design
    Upgrade from single to dual polarization in the field
    Build for the future – upgrade to the next generation radio in the field

Technical features

General Specifications

Product TypePoint to point antennas
PerformanceSuper High
Antenna InputPBR220
Antenna colorWhite RAL 9010

Electrical Specification

Frequency GHz21.2 - 23.6
3dB beamwidthdegrees1
Low Band GaindBi44.2
Mid Band Gain dBi44.8
High Band Gain dBi45.2
F/B Ratio dB77
XPD dB30
Max VSWR / R LVSWR / dB1.29 (18)
Regulatory ComplianceETSI EN 302217 Range 3 Class 4

Mechanical Specifications

Diameter ft (m)3 (0.9)
Elevation Adjustment degrees±15
Azimuth Adjustment degrees±15
Polarization Adjustment degrees±5
Mounting Pipe Diameter minimum mm (in)89 (3.5)
Mounting Pipe Diameter maximum mm (in)114 (4.5)
Survival Windspeedkm/h (mph)252 (155)
Operational Windspeedkm/h (mph)180 (112)
Approximate Weight kg (lb)25 (55)

Other Accessories

optional Swaybar1: SMA-SK-3 (1.35 m x Ø33 mm)
Further AccessoriesSMA-SKO-UNIVERSAL : Universal sway bar fixation kit

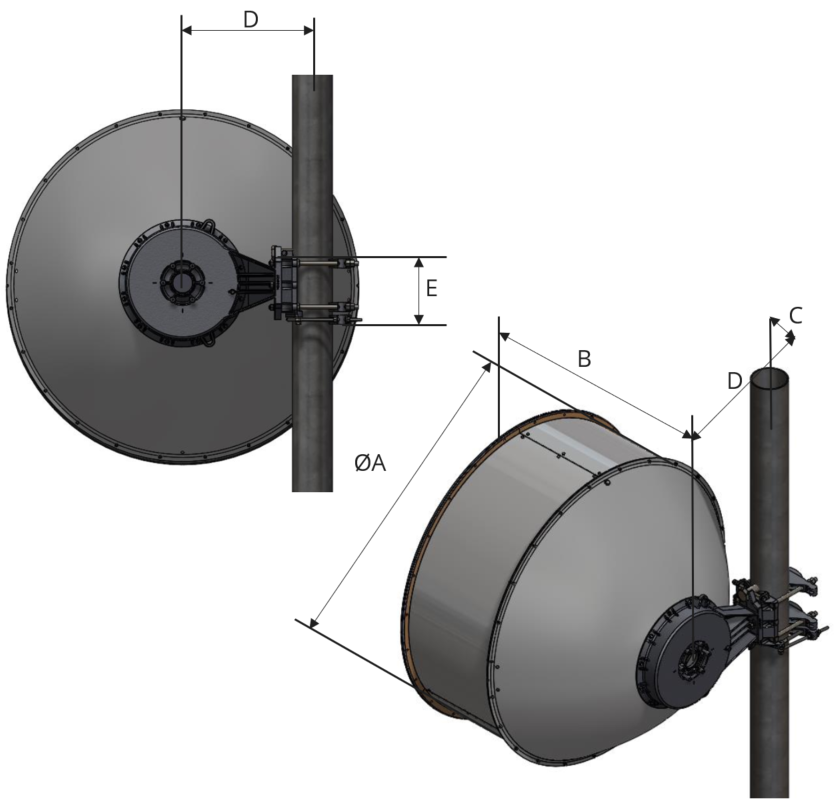

Mount Outline

Dimension_Amm (in)999 (39.3)
Dimension_Bmm (in)737 (29)
Dimension_Cmm (in)54 (2.1)
Dim_D-89mm(3.5_in)Pipemm (in)354.5 (14)
Dim_D-114mm(4.5_in)Pipemm (in)367 (14.5)
Dimension_Emm (in)182 (7)



Fs Side force max. @ survival wind speed N (lb)1721 (387)
Fa Axial force max. @ survival wind speed N (lb)2930 (659)
M Torque maximum @ survival wind speed Nm (ft lb)Nm (lb ft)1239 (914)

Forces 3ft SC
