TER-43-3800-50W
Load, 4.3-10 male, 50 Watt

The 43-TER Series are coaxial loads which operate from DC up to 3.8 GHz.The products are ideally suited for termination of unused ports in distributed antenna systems or in RADIAFLEX® radiating cables systems.

FEATURES / BENEFITS

  • Ideal for all kind of DAS applications
  • Finned termination for optimized heat disspation
  • Low VSWR

Technical features

General Specifications

Product TypeLoad
Techn. ApplicationIndoor

Electrical Specifications

Frequency Range MHzDC-3.800
Impedance Ohm50
Max. VSWR / Return Loss, dBVSWR/dB/19
Total Input Power W50

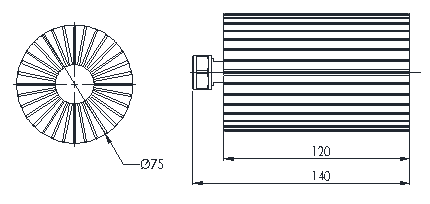

Mechanical Specifications

Input Connector Type4.3-10 male
Diameter mm (in)75 (2.95)
Length mm (in)140 (5.51)
Weight kg (lb)0.65 (1.43)

Temperature Specifications

Temperature Range °C (°F)-25 to 65 (-13 to 149)
Environmental ClassIndoor

External Document Links

Notes

Derated power rating by -1.5%/°C above 50°C
