TER-E-3800-20W
Load, N male, 20 Watt

Rev : A | Rev date : 31 Jan 2019

The N-TER*3800MHz Series are coaxial loads which operate from DC up to 3.8 GHz.The products are ideally suited for termination of unused ports in distributed antenna systems or in RADIAFLEX® radiating cables systems.

FEATURES / BENEFITS

  • Ideal for all kind of DAS applications
  • Finned termination for heat disspation
  • Low VSWR

Technical features

General Specifications

Product TypeLoad
Techn. ApplicationIndoor

Electrical Specifications

Frequency Range MHzDC-3.800
Impedance Ohm50
Max. VSWR / Return Loss, dBVSWR/dB/19
Total Input Power W20

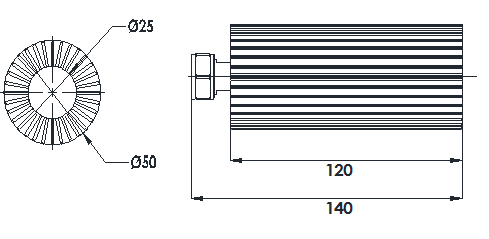

Mechanical Specifications

Input Connector TypeN male
Diameter mm (in)50 (1.97)
Length mm (in)140 (5.51)

Temperature Specifications

Temperature Range °C (°F)-25 to 65 (-13 to 149)
Environmental ClassIndoor
